M34 (ARCHAMBAULT)
Specifications
Hull
| LOA | 34 ft |
| Beam | 9.75 ft |
| Draft | 8.16 ft |
| Displacement | 5,952 lb |
| Ballast | 2,314.9 lb |
| Material | 32.0 |
Accommodation
| Berths | 4 |
| Heads | 5 |
| Fuel | 13.2 L |
| CE category | N/A€ |
About the M34 (ARCHAMBAULT)

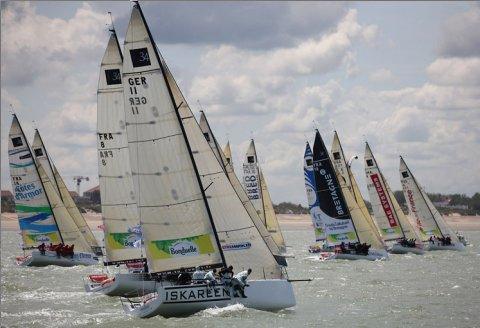

Selected as the One-Design for the 2011 “Tour de France à la Voile”. Keel up for shipping/trailering)5.92' Main SA 452 sq.ft. Genoa SA 312 sq.ft. SPINNAKER AREA 1,399 sq.ft.
The Archambault M34 is a performance-oriented fractional sloop designed by Joubert/Nivelt/Mercier and built by Archambault in France. Production records indicate the model was built in 2010, though the total number of hulls constructed is currently unknown.
- Best for:
- This boat suits active coastal cruisers and club racers who prioritize speed and handling over heavy bluewater endurance, given its light displacement of 5952.0 lb and high sail area-to-displacement ratio of 31.37.
- Bluewater capability:
- With a low capsize ratio of 2.16 and a fin keel, the M34 is best suited for coastal and nearshore cruising rather than extended offshore passages, as its light displacement offers less motion comfort in heavy seas.
- Comparables:
- Comparable boats include the Beneteau First 34.7 and the J/105, as they share similar fractional sloop rigs, light displacement characteristics, and a focus on planing performance in moderate winds.
Performance
ORC Performance Data(5 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 6.2 | 7.2 | 7.5 | 7.6 | 7.7 | 7.8 | 7.9 |
| 60° | 6.5 | 7.4 | 7.7 | 7.9 | 8.0 | 8.1 | 8.3 |
| 75° | 6.8 | 7.5 | 8.0 | 8.3 | 8.6 | 8.7 | 9.1 |
| 90° | 6.7 | 7.5 | 8.0 | 8.6 | 9.1 | 9.4 | 9.8 |
| 110° | 6.8 | 7.7 | 8.2 | 8.6 | 9.1 | 9.5 | 11.1 |
| 120° | 6.6 | 7.6 | 8.4 | 9.0 | 9.5 | 10.1 | 11.2 |
| 135° | 5.9 | 7.3 | 8.0 | 8.9 | 10.0 | 11.1 | 12.7 |
| 150° | 4.9 | 6.3 | 7.3 | 7.9 | 8.7 | 9.7 | 12.6 |
| Beat VMG | 4.1 | 4.9 | 5.3 | 5.5 | 5.6 | 5.7 | 5.7 |
| Run VMG | 4.3 | 5.4 | 6.3 | 6.9 | 7.5 | 8.4 | 10.9 |
Market Price
Estimated Cost of Ownership
Based on 34ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the M34 (ARCHAMBAULT)yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a M34 (ARCHAMBAULT)? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
