KNARR
Specifications
Hull
| LOA | 30.33 ft |
| LWL | 20.37 ft |
| Beam | 6.95 ft |
| Draft | 4.26 ft |
| Displacement | 4,905 lb |
| Ballast | 2,821.8 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 25.43 ft |
| Jforetriangle base | 6.56 ft |
| Pmainsail luff | 31 ft |
| Emainsail foot | 11.06 ft |
| FLforestay | 6.6 ft |
| Mainsail | 268.6 sq ft |
| Jib (100%) | 83.4 sq ft |
| Spinnaker | 141.8 sq ft |
Engine
| Commonly | Johnson |
About the KNARR
Fiberglass construction introduced in 1974.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.3 | 5.1 | 5.6 | 5.9 | 6.0 | 6.1 | 6.2 |
| 60° | 4.5 | 5.4 | 5.9 | 6.1 | 6.3 | 6.3 | 6.3 |
| 75° | 4.7 | 5.6 | 6.0 | 6.3 | 6.5 | 6.7 | 6.8 |
| 90° | 4.6 | 5.6 | 6.1 | 6.4 | 6.6 | 6.8 | 7.2 |
| 110° | 4.3 | 5.2 | 5.9 | 6.3 | 6.5 | 6.8 | 7.3 |
| 120° | 4.0 | 4.9 | 5.7 | 6.1 | 6.4 | 6.7 | 7.2 |
| 135° | 3.5 | 4.4 | 5.2 | 5.8 | 6.2 | 6.5 | 7.0 |
| 150° | 3.1 | 3.9 | 4.7 | 5.4 | 5.9 | 6.3 | 6.8 |
| Beat VMG | 2.8 | 3.4 | 3.8 | 4.0 | 4.0 | 4.1 | 4.1 |
| Run VMG | 2.7 | 3.5 | 4.2 | 4.9 | 5.5 | 6.0 | 6.6 |

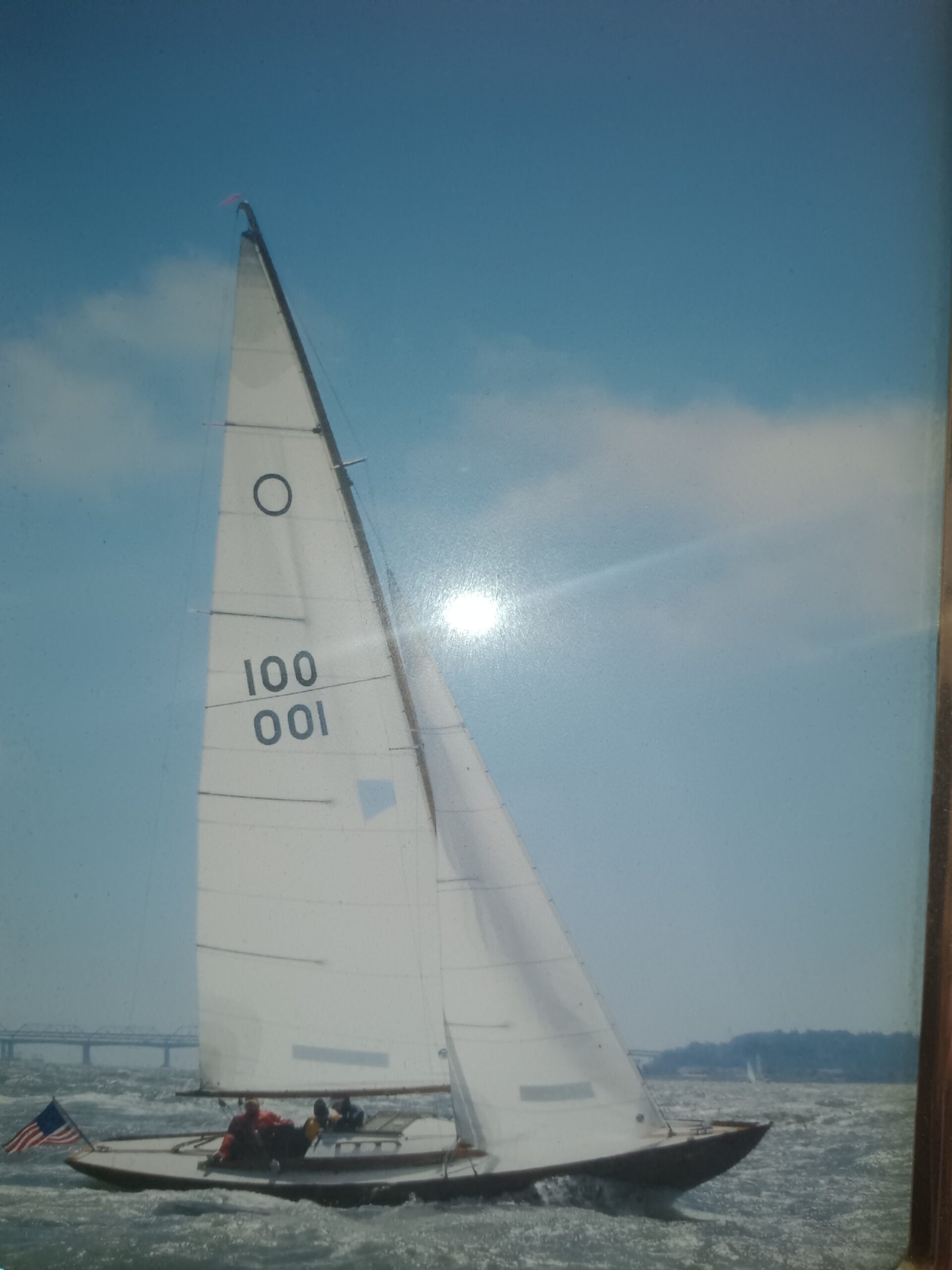

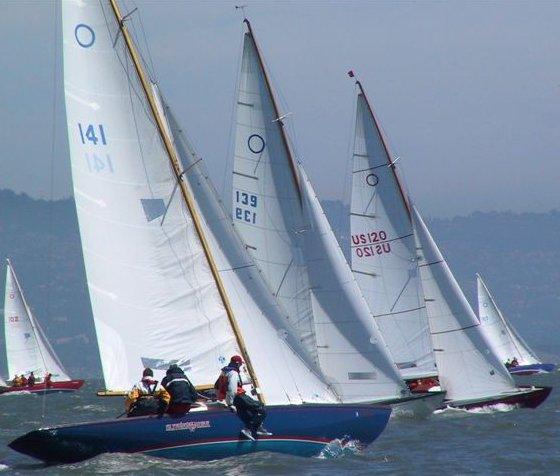

Images
