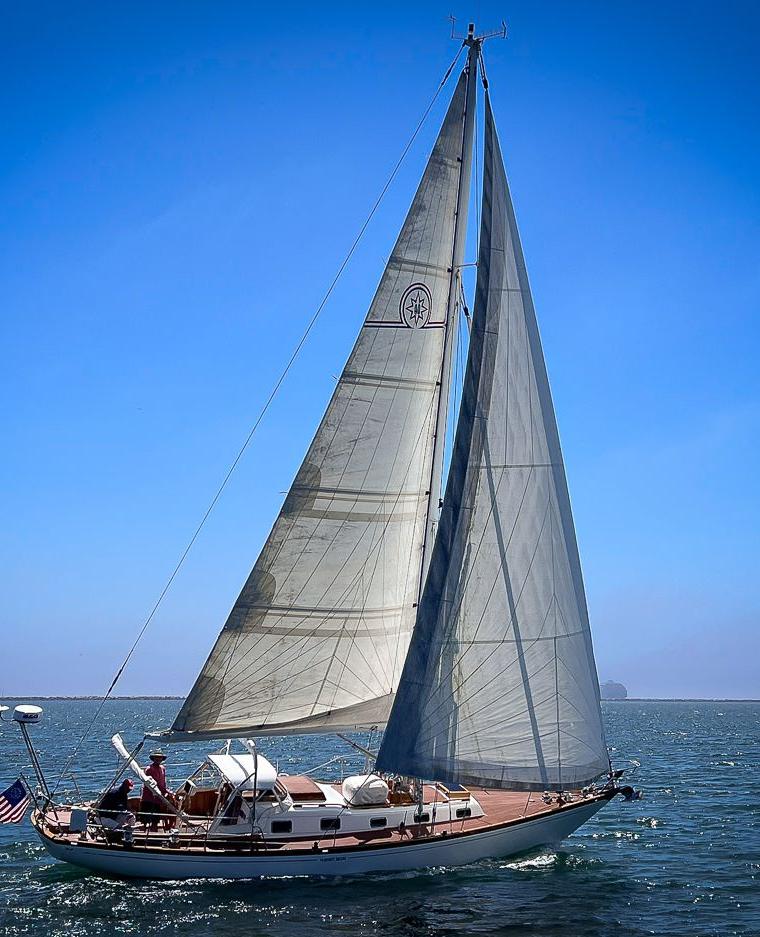

COLUMBIA 40
Specifications
Hull
| LOA | 39.5 ft |
| LWL | 27.75 ft |
| Beam | 10.5 ft |
| Draft | 9 ft/ 4.5 ft min |
| Displacement | 18,900 lb |
| Ballast | 8,399.2 lb |
| Hull speed1.34·√LWL | 7.1 kn |
Rig & Sails
| Iforetriangle height | 43.5 ft |
| Jforetriangle base | 15 ft |
| Pmainsail luff | 37.6 ft |
| Emainsail foot | 18.5 ft |
| FLforestay | 15 ft |
| Mainsail | 701.9 sq ft |
| Jib (100%) | 326.3 sq ft |
| Spinnaker | 554.6 sq ft |
About the COLUMBIA 40
The COLUMBIA 40 was based on Morgans successful racer 'Sabre'. She featured a number of innovations for the time including a molded in steel frame skeleton and a hydraulically controlled centerboard. Also available as a yawl.
Designed by Charles Morgan and built by Columbia Yachts (USA) between 1964 and 1969, the Columbia 40 is a substantial cruising sloop with a production run of 55 hulls. This data-driven synthesis highlights its reputation as a robust, heavy-displacement vessel that requires vigilant maintenance of its structural integrity.
- Best for:
- This boat suits experienced coastal and offshore cruisers who prioritize seakeeping and comfort over high-speed performance, particularly those willing to manage the maintenance demands of a classic fiberglass hull.
- Bluewater capability:
- With a displacement of 18900.0 lb and a capsize ratio of 1.58, the Columbia 40 is well-suited for offshore passages, offering exceptional stability and motion comfort in heavy weather.
- Comparables:
- Comparable vessels include the Tartan 38 and O'Day 38 from the same era, as they share similar heavy-displacement characteristics and full-keel designs aimed at safe, comfortable cruising.
Performance
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 39.5ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
17 reported issues across 5 systems for the COLUMBIA 40, compiled from owner reports in sailing forums and owner-association material.
