X-3/4 TON
Specifications
Hull
| LOA | 32.75 ft |
| LWL | 25.58 ft |
| Beam | 11.08 ft |
| Draft | 6.17 ft |
| Displacement | 7,480 lb |
| Hull speed1.34·√LWL | 6.8 kn |
Rig & Sails
| Iforetriangle height | 38.3 ft |
| Jforetriangle base | 11.4 ft |
| Pmainsail luff | 43 ft |
| Emainsail foot | 15.1 ft |
| FLforestay | 11.4 ft |
| Mainsail | 568.9 sq ft |
| Jib (100%) | 218.3 sq ft |
| Spinnaker | 371.1 sq ft |

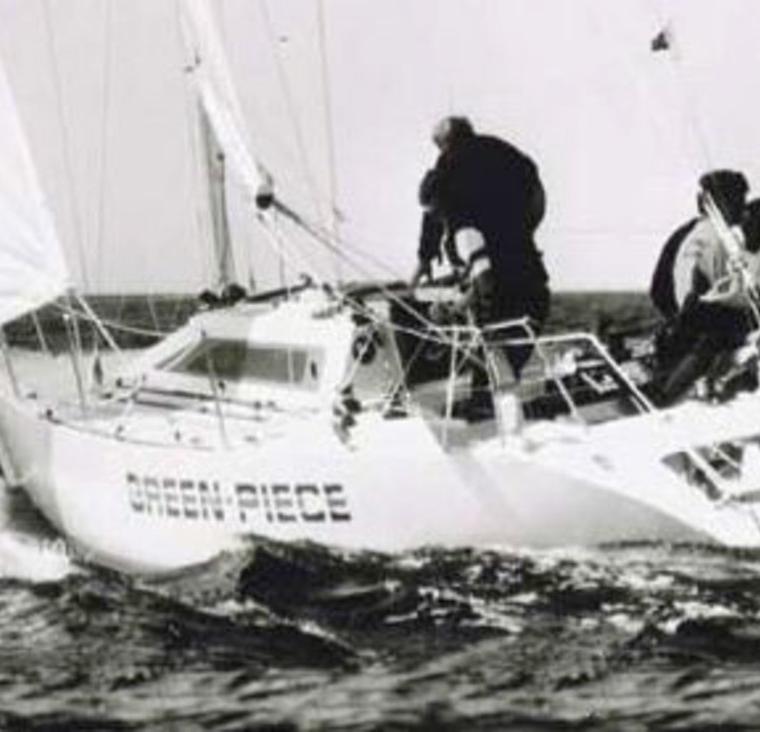

About the X-3/4 TON
Based on the X-102 with updated deck and more exotic materials. Winner of Int. 3/4 ton cup '85, '87, '88, 89.
Direct variants of the X-3/4 TON
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(5 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.2 | 5.5 | 6.3 | 6.6 | 6.8 | 6.8 | 6.9 | 6.9 | 6.9 |
| 60° | 4.5 | 5.7 | 6.4 | 6.7 | 6.9 | 7.0 | 7.1 | 7.1 | 7.2 |
| 75° | 4.6 | 5.9 | 6.5 | 6.9 | 7.1 | 7.3 | 7.3 | 7.5 | 7.6 |
| 90° | 4.5 | 5.8 | 6.5 | 6.9 | 7.2 | 7.4 | 7.6 | 7.9 | 8.1 |
| 110° | 4.1 | 5.5 | 6.5 | 7.0 | 7.3 | 7.6 | 7.9 | 8.3 | 8.8 |
| 120° | 3.9 | 5.3 | 6.3 | 6.9 | 7.3 | 7.6 | 8.0 | 8.9 | 9.7 |
| 135° | 3.4 | 4.8 | 5.8 | 6.6 | 7.0 | 7.4 | 7.8 | 8.9 | 11.1 |
| 150° | 2.8 | 4.0 | 5.1 | 6.0 | 6.7 | 7.1 | 7.4 | 8.2 | 9.6 |
| Beat VMG | 2.7 | 3.6 | 4.3 | 4.7 | 4.8 | 4.9 | 5.0 | 5.0 | 4.9 |
| Run VMG | 2.4 | 3.5 | 4.4 | 5.2 | 5.9 | 6.5 | 6.9 | 7.6 | 8.4 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 32.75ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the X-3/4 TONyet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a X-3/4 TON? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
