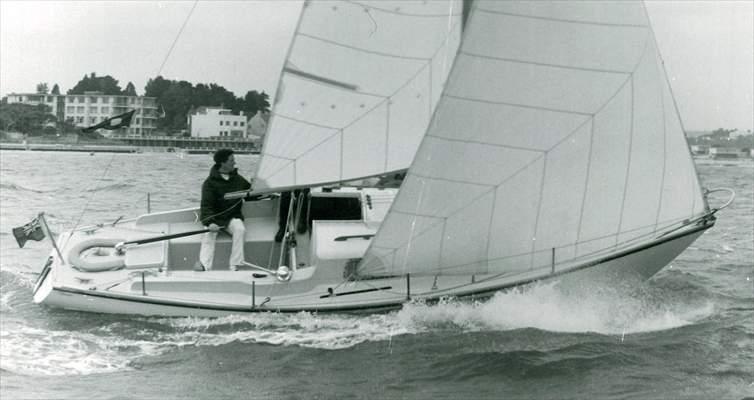

SPIRIT 24 (VAN DE STADT)
Specifications
Hull
| LOA | 24.28 ft |
| LWL | 18.7 ft |
| Beam | 7.41 ft |
| Draft | 4.92 ft |
| Displacement | 2,977 lb |
| Ballast | 1,256 lb |
| Hull speed1.34·√LWL | 5.8 kn |
About the SPIRIT 24 (VAN DE STADT)
Prototype ('Blauwvaet'), was winner of the first 1/4 ton cup(RORC), held in France (1967).
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.0 | 4.1 | 4.9 | 5.4 | 5.6 | 5.8 | 5.8 | 5.8 | 5.8 |
| 60° | 3.2 | 4.3 | 5.1 | 5.5 | 5.8 | 5.9 | 6.0 | 6.0 | 6.0 |
| 75° | 3.3 | 4.4 | 5.2 | 5.6 | 5.9 | 6.0 | 6.2 | 6.3 | 6.3 |
| 90° | 3.2 | 4.4 | 5.3 | 5.8 | 6.0 | 6.1 | 6.3 | 6.5 | 6.7 |
| 110° | 3.2 | 4.4 | 5.3 | 5.8 | 6.1 | 6.4 | 6.6 | 6.9 | 7.2 |
| 120° | 3.1 | 4.3 | 5.2 | 5.7 | 6.1 | 6.4 | 6.7 | 7.3 | 7.7 |
| 135° | 2.7 | 3.8 | 4.8 | 5.5 | 5.9 | 6.2 | 6.5 | 7.2 | 8.2 |
| 150° | 2.3 | 3.3 | 4.3 | 5.0 | 5.6 | 5.9 | 6.2 | 6.8 | 7.6 |
| Beat VMG | 2.0 | 2.7 | 3.3 | 3.7 | 4.0 | 4.2 | 4.2 | 4.2 | 4.1 |
| Run VMG | 2.0 | 2.9 | 3.7 | 4.4 | 5.0 | 5.5 | 5.8 | 6.3 | 6.9 |
Pricing
We don't have market pricing data for the SPIRIT 24 (VAN DE STADT) yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 24.28ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SPIRIT 24 (VAN DE STADT)yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SPIRIT 24 (VAN DE STADT)? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
