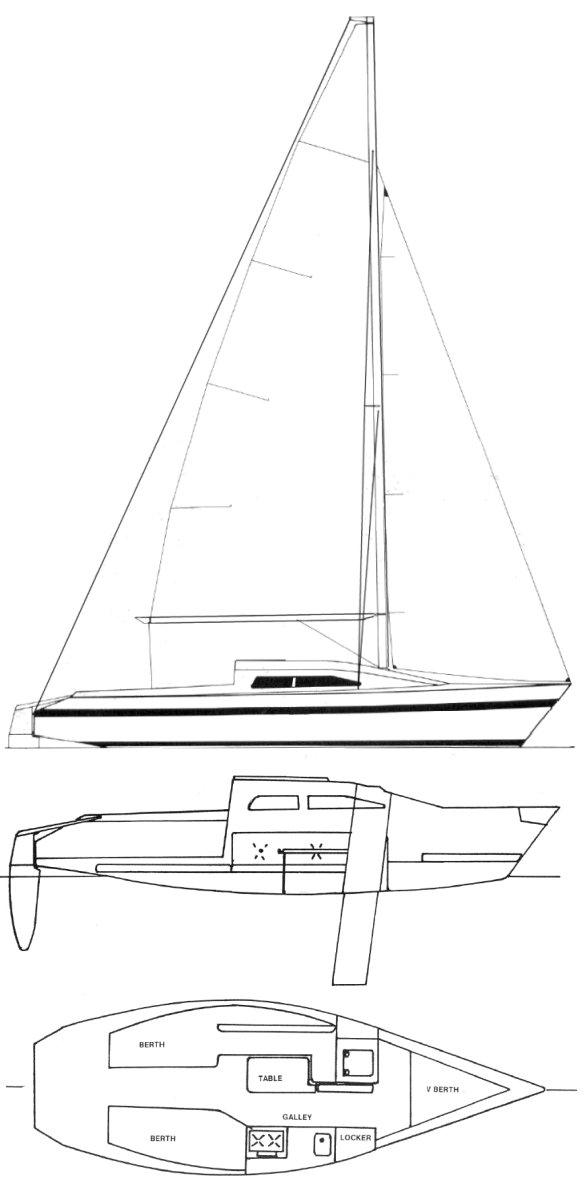

SONATA 26
Specifications
Hull
| LOA | 26.25 ft |
| LWL | 19.75 ft |
| Beam | 8.2 ft |
| Draft | 5.09 ft/ 0.69 ft min |
| Displacement | 2,822 lb |
| Ballast | 500.1 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 25.75 ft |
| Jforetriangle base | 9 ft |
| Pmainsail luff | 28 ft |
| Emainsail foot | 11.48 ft |
| FLforestay | 9 ft |
| Mainsail | 289.5 sq ft |
| Jib (100%) | 115.9 sq ft |
| Spinnaker | 197 sq ft |
About the SONATA 26
Fixed keel versions also available - draft:1.6m Updated version of SONATA 8.
Direct variant of the SONATA 26
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.3 | 4.5 | 5.3 | 5.7 | 5.9 | 6.1 | 6.2 | 6.2 | 6.2 |
| 60° | 3.5 | 4.7 | 5.4 | 5.8 | 6.1 | 6.2 | 6.3 | 6.4 | 6.5 |
| 75° | 3.6 | 4.8 | 5.5 | 5.9 | 6.2 | 6.4 | 6.5 | 6.8 | 6.8 |
| 90° | 3.5 | 4.7 | 5.6 | 6.1 | 6.3 | 6.5 | 6.7 | 7.0 | 7.3 |
| 110° | 3.5 | 4.7 | 5.6 | 6.1 | 6.4 | 6.7 | 7.0 | 7.6 | 8.1 |
| 120° | 3.3 | 4.5 | 5.5 | 6.0 | 6.3 | 6.6 | 7.0 | 7.8 | 9.0 |
| 135° | 2.9 | 4.0 | 5.0 | 5.7 | 6.1 | 6.4 | 6.7 | 7.6 | 9.1 |
| 150° | 2.4 | 3.5 | 4.5 | 5.3 | 5.8 | 6.2 | 6.4 | 7.1 | 8.1 |
| Beat VMG | 2.1 | 3.0 | 3.6 | 4.0 | 4.3 | 4.5 | 4.6 | 4.6 | 4.5 |
| Run VMG | 2.1 | 3.0 | 3.9 | 4.6 | 5.2 | 5.7 | 6.0 | 6.6 | 7.2 |
