SCANMAR 345
Specifications
Hull
| LOA | 34.45 ft |
| LWL | 28.71 ft |
| Beam | 11.09 ft |
| Draft | 5.74 ft |
| Displacement | 11,023 lb |
| Ballast | 4,409.2 lb |
| Material | 34’ 7”10.55 m |
| Hull speed1.34·√LWL | 7.2 kn |
Accommodation
| Cabins | 2 |
| Berths | 6 |
| Heads | 6 |
| Water | 105.7 L |
| Fuel | 22.5 L |
| CE category | N/A€ |

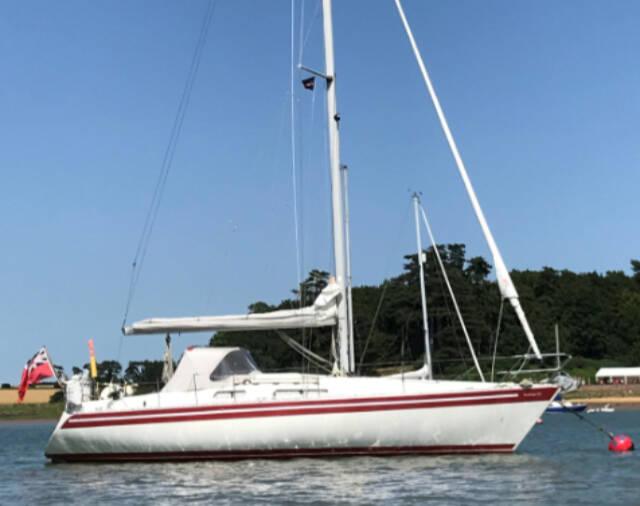

About the SCANMAR 345
The 345 is similar to the 33, which it replaced. Some of changes include: a longer waterline and a different transom shape. Also, the ports set into the hull of the 33 were done away with.
Performance
ORC Performance Data(4 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.5 | 4.8 | 5.7 | 6.3 | 6.6 | 6.7 | 6.8 | 6.8 | 6.8 |
| 60° | 3.8 | 5.1 | 6.0 | 6.5 | 6.7 | 6.9 | 7.0 | 7.0 | 7.1 |
| 75° | 3.9 | 5.3 | 6.1 | 6.6 | 6.9 | 7.1 | 7.2 | 7.4 | 7.4 |
| 90° | 3.9 | 5.3 | 6.3 | 6.8 | 7.1 | 7.3 | 7.4 | 7.6 | 7.8 |
| 110° | 4.0 | 5.5 | 6.5 | 7.0 | 7.3 | 7.6 | 7.9 | 8.2 | 8.6 |
| 120° | 3.8 | 5.3 | 6.4 | 6.9 | 7.3 | 7.6 | 7.9 | 8.6 | 9.2 |
| 135° | 3.3 | 4.7 | 5.8 | 6.6 | 7.1 | 7.4 | 7.7 | 8.5 | 9.6 |
| 150° | 2.7 | 4.0 | 5.0 | 5.9 | 6.6 | 7.0 | 7.3 | 8.0 | 8.8 |
| Beat VMG | 2.2 | 3.1 | 3.8 | 4.3 | 4.5 | 4.7 | 4.8 | 4.8 | 4.7 |
| Run VMG | 2.4 | 3.4 | 4.3 | 5.1 | 5.8 | 6.4 | 6.9 | 7.5 | 8.1 |
Estimated Value
Low ConfidenceEstimated Cost of Ownership
Based on 34.45ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SCANMAR 345yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SCANMAR 345? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
