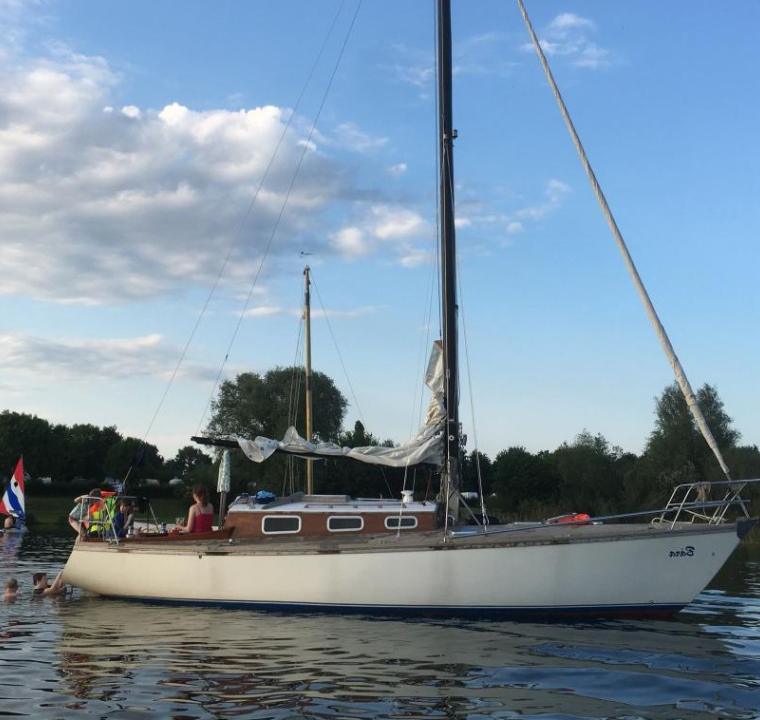

NANTUCKET 33
Specifications
Hull
| LOA | 32.83 ft |
| LWL | 25.83 ft |
| Beam | 9.75 ft |
| Draft | 5.33 ft |
| Displacement | 10,000 lb |
| Ballast | 4,200 lb |
| Hull speed1.34·√LWL | 6.8 kn |
Rig & Sails
| Iforetriangle height | 40.75 ft |
| Jforetriangle base | 13.75 ft |
| Pmainsail luff | 35.08 ft |
| Emainsail foot | 12.5 ft |
About the NANTUCKET 33
Prototype was 'HOTFOOT', a successful (CCA) racer at the time and winner of class C in 1968-69 SORC. It was built of wood veneers. Sister ships were also built of wood, Aluminum or molded FG. (A write up was featured in 'Boating' magazine, July 1968.)
The Nantucket 33 is a rare, heavy-displacement cruising sloop designed by Alan Gurney and built by various builders, with only 8 hulls constructed in 1967. Its substantial 10000.0 lb displacement and 4200.0 lb ballast reflect a design philosophy prioritizing stability and seakeeping over speed.
- Best for:
- This boat is best suited for experienced coastal cruisers and bluewater adventurers who value a solid, motion-dampened ride and are willing to manage a vintage, low-production vessel with specific maintenance needs.
- Bluewater capability:
- With a low capsize ratio of 1.81 and a high displacement-to-length ratio of 259.05, the Nantucket 33 is well-suited for offshore passages, offering excellent stability and resistance to capsizing in heavy weather.
- Comparables:
- Comparable boats include other Alan Gurney designs like the Nantucket 30 or 36, as well as heavy-displacement fin-keel sloops from the late 1960s such as the Cal 30 or O'Day 30, which share similar comfort ratios and cruising-oriented hull forms.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.6 | 4.5 | 5.2 | 5.8 | 6.2 | 6.5 | 6.7 |
| 60° | 4.0 | 4.8 | 5.5 | 6.1 | 6.5 | 6.7 | 7.0 |
| 75° | 4.4 | 5.4 | 6.2 | 6.6 | 6.7 | 6.9 | 7.2 |
| 90° | 4.7 | 5.7 | 6.5 | 6.8 | 7.0 | 7.2 | 7.4 |
| 110° | 4.8 | 5.9 | 6.6 | 6.9 | 7.2 | 7.5 | 7.8 |
| 120° | 4.5 | 5.6 | 6.4 | 6.8 | 7.1 | 7.4 | 8.0 |
| 135° | 3.9 | 4.9 | 5.9 | 6.5 | 6.9 | 7.1 | 7.7 |
| 150° | 3.2 | 4.2 | 5.1 | 5.9 | 6.5 | 6.8 | 7.3 |
| Beat VMG | 2.3 | 2.9 | 3.3 | 3.7 | 4.1 | 4.4 | 4.6 |
| Run VMG | 2.8 | 3.6 | 4.4 | 5.1 | 5.7 | 6.2 | 6.8 |
Pricing
We don't have market pricing data for the NANTUCKET 33 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 32.83ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
5 reported issues across 3 systems for the NANTUCKET 33, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a NANTUCKET 33? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 5 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your NANTUCKET 33?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Brands sometimes mentioned for this model: Yanmar — is it one of these?
Already know your engine? Search all engines → to find its exact parts.
