MORGAN 45
Specifications
Hull
| LOA | 45.67 ft |
| LWL | 31.42 ft |
| Beam | 11 ft |
| Draft | 6.08 ft |
| Displacement | 25,000 lb |
| Ballast | 12,000 lb |
| Hull speed1.34·√LWL | 7.5 kn |
Rig & Sails
| Iforetriangle height | 50.5 ft |
| Jforetriangle base | 17.5 ft |
| Pmainsail luff | 44.5 ft |
| Emainsail foot | 20.25 ft |
| PYmizzen luff | 29.1 ft |
| EYmizzen foot | 10.66 ft |
| FLforestay | 17.5 ft |
| Mainsail | 928.5 sq ft |
| Jib (100%) | 441.9 sq ft |
| Spinnaker | 751.2 sq ft |
About the MORGAN 45
Tooling was later used to build the STARRAT & JENKS 45.

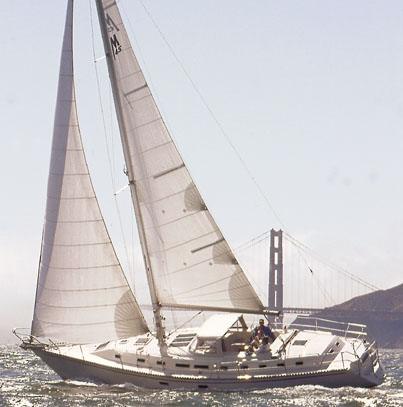

The Morgan 45 is a rare, heavy-displacement cruising sloop designed by Charles Morgan and built by Morgan Yachts (USA) between 1966 and 1970. With only 12 hulls constructed, this exclusive vessel features a full/long keel and a displacement of 25000.0 lb, reflecting its pedigree as a serious offshore cruiser from the mid-1960s.
- Best for:
- This boat is best suited for experienced coastal and offshore cruisers who prioritize seakeeping and comfort over speed, particularly those who appreciate the security of a full keel and are prepared to maintain a rare, low-production vessel.
- Bluewater capability:
- With a capsize ratio of 1.51 and a displacement of 25000.0 lb, the Morgan 45 is well-suited for bluewater passage making, offering exceptional stability and motion comfort in heavy seas typical of its full/long keel design.
- Comparables:
- Comparable boats include the Tartan 42 and the O'Day 40, which share similar heavy-displacement characteristics and full-keel designs from the same era, offering robust coastal cruising capabilities with comparable comfort ratios.
Performance
Estimated Value
Low ConfidenceAsking price by model year
5 listings · boat years 1967–1992 · median $38,500
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 45.67ft LOA. Actual costs vary by condition, usage, and local rates.
