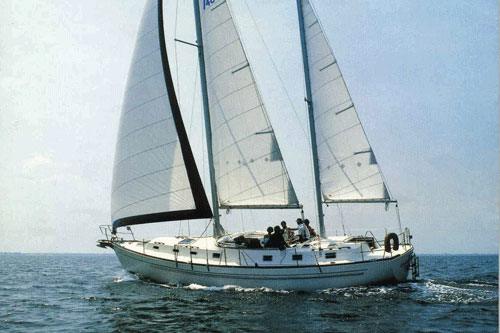

MORGAN 41
Specifications
Hull
| LOA | 41 ft |
| LWL | 30 ft |
| Beam | 11.25 ft |
| Draft | 9.42 ft/ 4.17 ft min |
| Displacement | 19,500 lb |
| Ballast | 8,999.2 lb |
| Hull speed1.34·√LWL | 7.3 kn |
Rig & Sails
| Iforetriangle height | 49.5 ft |
| Jforetriangle base | 15.9 ft |
| Pmainsail luff | 43.5 ft |
| Emainsail foot | 17.5 ft |
| PYmizzen luff | 9.4 ft |
| FLforestay | 15.9 ft |
| Mainsail | 804.6 sq ft |
| Jib (100%) | 393.5 sq ft |
| Spinnaker | 669 sq ft |
Engine
| Perkins | 4-10850 hpSee all 173 parts → |
| Perkins | 4-15462 hpSee all 90 parts → |
About the MORGAN 41
Westerbeke 4107 Diesel 40 hp. available as an option. The OUT ISLAND 41, a completely different design and built much later, was also at one time, called the MORGAN 41.
The Morgan 41 is a classic heavy-displacement cruising sloop designed by Charles Morgan and built by Morgan Yachts (USA) between 1967 and 1972, with a total production of 350 hulls. Its substantial displacement of 19500.0 lb and full keel design reflect its origins as a robust, motion-comfortable offshore cruiser from the late 1960s era.
- Best for:
- This vessel is best suited for experienced coastal and offshore cruisers who prioritize seakeeping and comfort over speed, particularly those willing to undertake significant mechanical and structural maintenance. It appeals to owners seeking a proven bluewater platform with ample interior volume, rather than single-handers or performance racers.
- Bluewater capability:
- With a displacement of 19500.0 lb and a capsize ratio of 1.68, the Morgan 41 demonstrates strong inherent stability and offshore suitability, though its age requires rigorous inspection of critical structural components like the keel and deck core to ensure seaworthiness.
- Comparables:
- Comparable boats include the Tartan 41 and O'Day 40, which share similar production eras and heavy-displacement characteristics. These vessels are comparable due to their full-keel designs, masthead sloop rigs, and focus on comfortable, stable cruising rather than high-performance sailing.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.3 | 6.2 | 6.8 | 7.1 | 7.3 | 7.5 | 7.8 |
| 60° | 5.5 | 6.4 | 6.9 | 7.2 | 7.5 | 7.6 | 7.9 |
| 75° | 5.6 | 6.4 | 7.0 | 7.3 | 7.5 | 7.8 | 8.1 |
| 90° | 5.5 | 6.3 | 7.0 | 7.4 | 7.7 | 7.9 | 8.2 |
| 110° | 5.4 | 6.5 | 7.1 | 7.5 | 7.8 | 8.1 | 8.7 |
| 120° | 5.2 | 6.3 | 7.0 | 7.4 | 7.8 | 8.1 | 8.7 |
| 135° | 4.7 | 5.8 | 6.7 | 7.2 | 7.5 | 7.9 | 8.5 |
| 150° | 4.0 | 5.1 | 5.9 | 6.5 | 7.0 | 7.3 | 7.8 |
| Beat VMG | 3.6 | 4.3 | 4.9 | 5.3 | 5.6 | 5.8 | 5.9 |
| Run VMG | 3.5 | 4.4 | 5.1 | 5.7 | 6.0 | 6.5 | 7.3 |
Estimated Value
Low ConfidenceAsking price by model year
9 listings · boat years 1969–1983 · median $51,000
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 41ft LOA. Actual costs vary by condition, usage, and local rates.
Featured YouTube Videos
Articles & Reviews
Known Issues & Pre-Purchase Inspection
37 reported issues across 10 systems for the MORGAN 41, compiled from owner reports in sailing forums and owner-association material.
