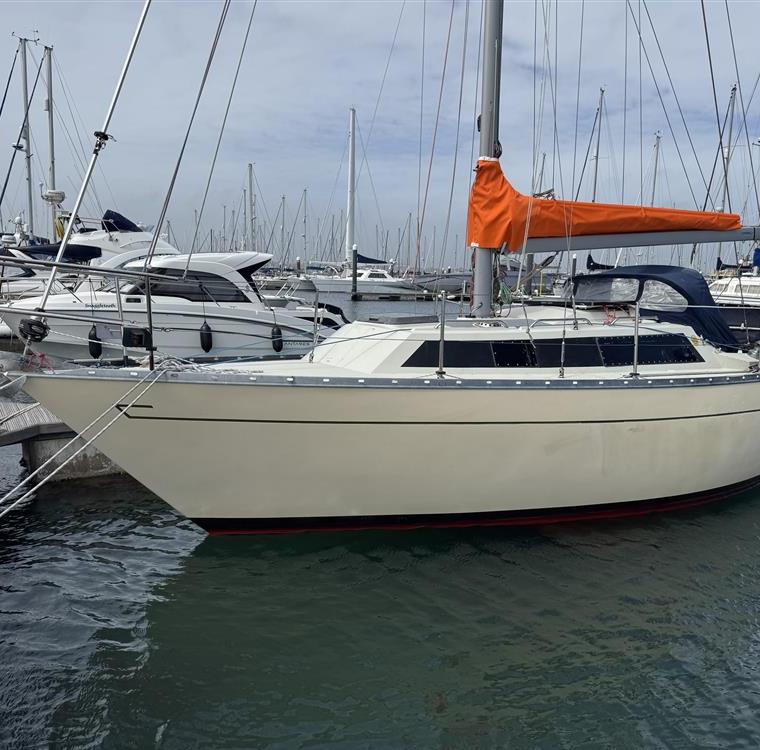

MIRAGE 28 (KELLEY)
Specifications
Hull
| LOA | 27.5 ft |
| LWL | 22.33 ft |
| Beam | 9.18 ft |
| Draft | 5 ft |
| Displacement | 5,500 lb |
| Ballast | 2,400.2 lb |
| Hull speed1.34·√LWL | 6.3 kn |
Rig & Sails
| Iforetriangle height | 35 ft |
| Jforetriangle base | 11.25 ft |
| Pmainsail luff | 33 ft |
| Emainsail foot | 10 ft |
| FLforestay | 11.3 ft |
| Mainsail | 353.5 sq ft |
| Jib (100%) | 196.9 sq ft |
| Spinnaker | 334.7 sq ft |
About the MIRAGE 28 (KELLEY)
Designed as an MORC racer. Also called KELLEY 28. Thanks to Ken Fickett (Mirage Mfg.) for providing updated information on this yacht. Fractional Rig: I: 35.00' / 10.67m J: 11.25' / 3.43m P: 33.00' / 10.06m E: 10.00' / 3.05m Masthead tall: I: 38.70' / 11.80m J: 11.25' / 3.43m P: 33.00' / 10.06m E: 10.00' / 3.05m
Performance
ORC Performance Data(8 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.8 | 4.5 | 5.1 | 5.5 | 5.8 | 5.9 | 5.9 |
| 60° | 4.2 | 4.9 | 5.5 | 5.8 | 6.0 | 6.1 | 6.2 |
| 75° | 4.6 | 5.4 | 5.9 | 6.1 | 6.3 | 6.4 | 6.5 |
| 90° | 4.7 | 5.6 | 6.0 | 6.3 | 6.5 | 6.7 | 6.9 |
| 110° | 4.5 | 5.4 | 5.9 | 6.2 | 6.5 | 6.8 | 7.2 |
| 120° | 4.2 | 5.1 | 5.8 | 6.2 | 6.5 | 6.7 | 7.3 |
| 135° | 3.8 | 4.7 | 5.5 | 6.0 | 6.3 | 6.5 | 7.0 |
| 150° | 3.3 | 4.1 | 4.8 | 5.4 | 5.8 | 6.0 | 6.5 |
| Beat VMG | 2.4 | 2.9 | 3.2 | 3.5 | 3.8 | 3.9 | 3.9 |
| Run VMG | 2.8 | 3.6 | 4.2 | 4.7 | 5.1 | 5.6 | 6.2 |
Market Price
Asking price by model year
6 listings · boat years 1976–1983 · median $11,112
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 27.5ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the MIRAGE 28 (KELLEY)yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a MIRAGE 28 (KELLEY)? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
