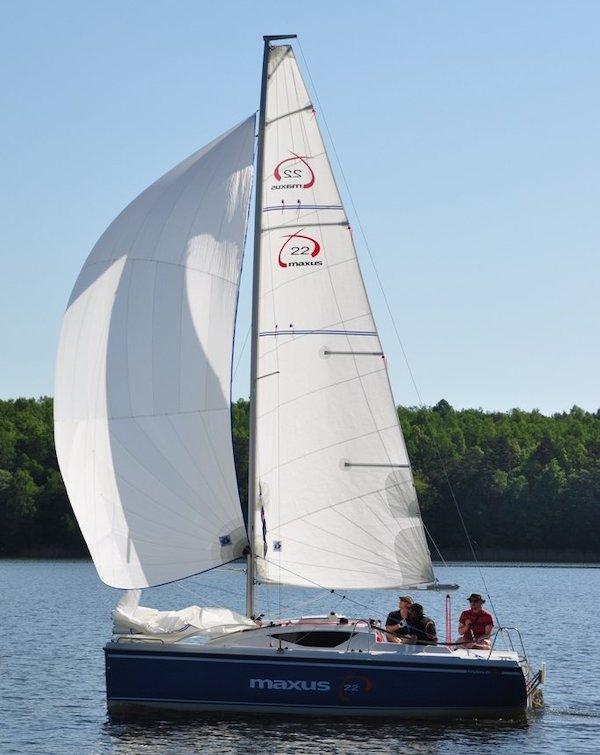

MAXUS 22 (CB)
Specifications
Hull
| LOA | 23.72 ft |
| Beam | 8.14 ft |
| Draft | 4.1 ft/ 0.98 ft min |
| Displacement | 2,822 lb |
| Ballast | 649.9 lb |
About the MAXUS 22 (CB)
Also available with a daggerboard (pictured in drawing above). Max draft: 1.45m / 4.75ft
Designed by Jacek Daszkiewicz and built by Northman Shipyard (PL) starting in 2013, the Maxus 22 (CB) is a compact fractional sloop with a displacement of 2822.0 lb and a max draft of 4.1 ft. While the exact hulls built count is unspecified, owner reports highlight a strong aftermarket ecosystem with widespread adoption of North sails and Quick anchors.
- Best for:
- This boat suits coastal cruisers and weekend warriors seeking a lightweight, trailerable package with a beam of 8.14 ft for interior comfort, particularly those willing to manage specific structural maintenance issues.
- Bluewater capability:
- With a low capsize ratio of 2.31 and a displacement of 2822.0 lb, the Maxus 22 is primarily a coastal cruiser rather than a bluewater vessel, though some owners have installed watermakers and solar panels for extended offshore capability.
- Comparables:
- Comparable to other modern European trailer-sailers like the Beneteau First 21 or J/22, the Maxus 22 offers similar fractional sloop performance metrics (SA/D ratio 19.89) but distinguishes itself with a variable keel option and a capsize ratio of 2.31.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.9 | 4.7 | 5.3 | 5.6 | 5.7 | 5.7 | 5.7 |
| 60° | 4.2 | 5.0 | 5.5 | 5.8 | 5.9 | 5.9 | 5.9 |
| 75° | 4.4 | 5.3 | 5.7 | 5.9 | 6.1 | 6.2 | 6.2 |
| 90° | 4.7 | 5.5 | 5.9 | 6.0 | 6.1 | 6.4 | 6.6 |
| 110° | 4.7 | 5.6 | 6.0 | 6.3 | 6.5 | 6.7 | 6.9 |
| 120° | 4.6 | 5.5 | 5.9 | 6.2 | 6.6 | 6.8 | 7.2 |
| 135° | 4.1 | 5.0 | 5.7 | 6.0 | 6.4 | 6.7 | 7.5 |
| 150° | 3.6 | 4.5 | 5.2 | 5.7 | 6.0 | 6.4 | 7.0 |
| Beat VMG | 2.5 | 3.1 | 3.5 | 3.8 | 3.9 | 3.9 | 3.8 |
| Run VMG | 3.1 | 3.9 | 4.6 | 5.2 | 5.7 | 6.0 | 6.6 |
Pricing
We don't have market pricing data for the MAXUS 22 (CB) yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 23.72ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
5 reported issues across 5 systems for the MAXUS 22 (CB), compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a MAXUS 22 (CB)? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 5 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your MAXUS 22 (CB)?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Brands sometimes mentioned for this model: Yanmar — is it one of these?
Already know your engine? Search all engines → to find its exact parts.
Used sails that fit the MAXUS 22 (CB)
Checking eBay for sails sized to this boat's rig…
