MARTEN 49
Specifications
Hull
| LOA | 49.21 ft |
| LWL | 49.21 ft |
| Beam | 13.68 ft |
| Draft | 11.81 ft/ 8.2 ft min |
| Displacement | 20,944 lb |
| Ballast | 10,141.1 lb |
| Hull speed1.34·√LWL | 9.4 kn |

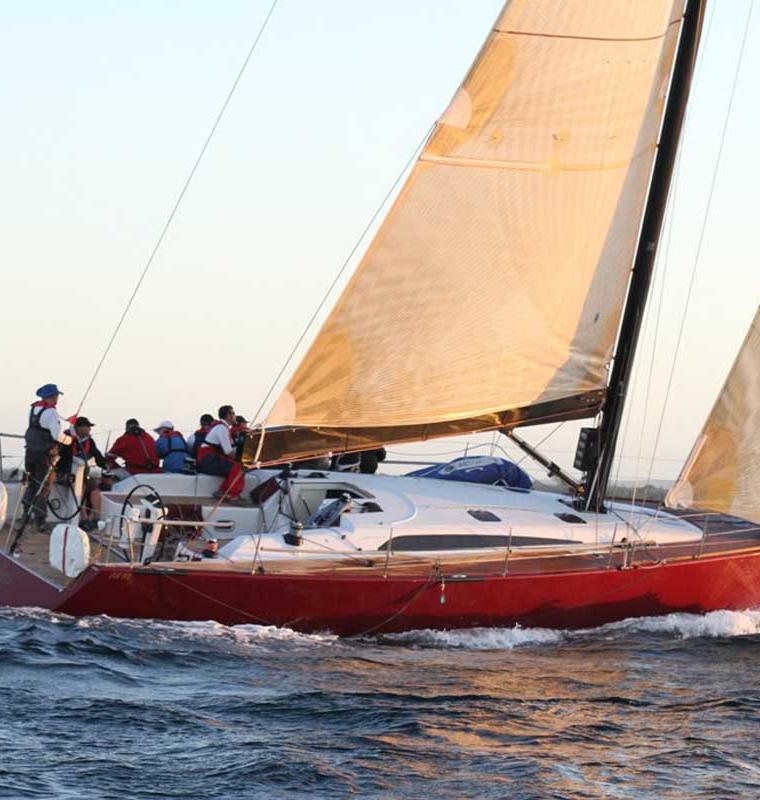

About the MARTEN 49
The Marten 49 is a performance-oriented cruising yacht designed by Reichel-Pugh and built by Azzura Marine in New Zealand between 2006 and 2009, with a total production run of 15 hulls. This limited series combines a fractional sloop rig with a displacement of 20944.0 lb, offering a blend of speed and comfort for owners seeking a capable offshore vessel.
- Best for:
- This boat is best suited for experienced coastal cruisers and bluewater adventurers who prioritize performance and offshore capability, particularly those comfortable with the maintenance demands of a fractional rig and complex deck hardware.
- Bluewater capability:
- With a displacement of 20944.0 lb, a capsize ratio of 1.99, and a comfort ratio of 20.19, the Marten 49 demonstrates strong offshore suitability, though owners must vigilantly monitor the keel sump and deck core integrity to ensure long-term structural reliability.
- Comparables:
- Comparable boats include the Hallberg-Rassy 442 and the Swan 44, as they share similar fractional sloop rigs, performance-focused hull forms, and target the same market of serious offshore cruisers seeking high-quality construction and sailing dynamics.
Performance
ORC Performance Data(9 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 6.7 | 8.0 | 8.6 | 8.8 | 8.9 | 9.0 | 9.2 |
| 60° | 7.1 | 8.3 | 8.8 | 9.1 | 9.2 | 9.3 | 9.5 |
| 75° | 7.5 | 8.6 | 9.0 | 9.4 | 9.7 | 9.8 | 10.0 |
| 90° | 7.3 | 8.5 | 9.0 | 9.5 | 9.9 | 10.3 | 10.9 |
| 110° | 7.3 | 8.6 | 9.2 | 9.6 | 9.9 | 10.3 | 11.3 |
| 120° | 7.1 | 8.6 | 9.2 | 9.8 | 10.3 | 10.8 | 11.7 |
| 135° | 6.5 | 8.0 | 8.9 | 9.6 | 10.4 | 11.3 | 13.0 |
| 150° | 5.5 | 6.9 | 8.1 | 8.8 | 9.4 | 10.1 | 12.0 |
| Beat VMG | 4.4 | 5.4 | 6.0 | 6.2 | 6.4 | 6.5 | 6.7 |
| Run VMG | 4.7 | 6.0 | 7.0 | 7.8 | 8.3 | 8.9 | 10.4 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 49.21ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
11 reported issues across 8 systems for the MARTEN 49, compiled from owner reports in sailing forums and owner-association material.
