J/120
Specifications
Hull
| LOA | 40 ft |
| LWL | 34.5 ft |
| Beam | 12 ft |
| Draft | 7 ft |
| Displacement | 13,900 lb |
| Ballast | 6,000.6 lb |
| Hull speed1.34·√LWL | 7.9 kn |
Rig & Sails
| Iforetriangle height | 50.5 ft |
| Jforetriangle base | 14.5 ft |
| Pmainsail luff | 46.5 ft |
| Emainsail foot | 17.8 ft |
| FLforestay | 14.5 ft |
| Mainsail | 813.1 sq ft |
| Jib (100%) | 366.1 sq ft |
| Spinnaker | 640.9 sq ft |

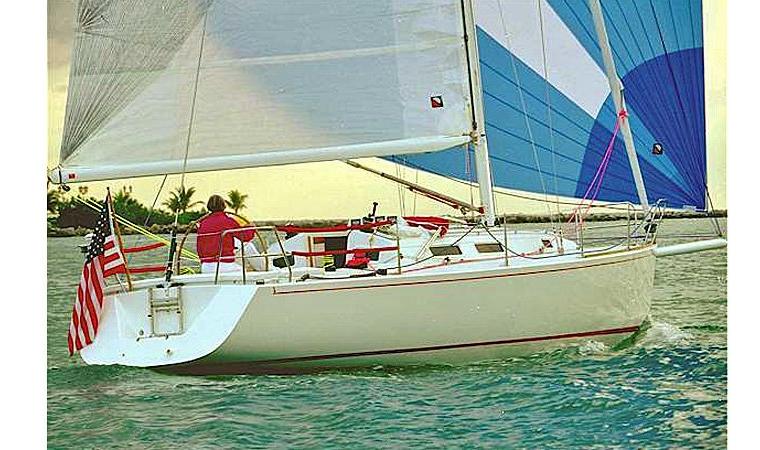

About the J/120
Some were finished in France.
Designed by Rodney S. Johnstone and built by J Boats Tillotson Pearson (USA) from 1994–2006, the J/120 is a high-performance cruising sloop with 230 hulls produced. Its fractional sloop rig and 13900.0 lb displacement reflect a design prioritizing speed and handling, though owners report significant maintenance challenges with structural components.
- Best for:
- This boat suits experienced coastal cruisers and performance-oriented sailors who prioritize sailing dynamics over low-maintenance ease, as it requires diligent upkeep of its complex systems.
- Bluewater capability:
- With a capsize ratio of 2.0 and a comfort ratio of 21.71, the J/120 is moderately capable offshore but requires careful attention to its fin keel and rudder integrity for safe bluewater passage-making.
- Comparables:
- Comparable to other 1990s performance cruisers like the Beneteau First 40 or O'Day 382, the J/120 shares a similar era and role but distinguishes itself with a higher sail area-to-displacement ratio (21.67) and a more specialized fractional rig.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.6 | 6.7 | 7.4 | 7.6 | 7.7 | 7.8 | 7.8 |
| 60° | 6.0 | 7.0 | 7.6 | 7.8 | 7.9 | 8.0 | 8.1 |
| 75° | 6.3 | 7.2 | 7.7 | 8.0 | 8.2 | 8.3 | 8.5 |
| 90° | 6.2 | 7.2 | 7.8 | 8.1 | 8.3 | 8.6 | 9.0 |
| 110° | 6.1 | 7.3 | 7.9 | 8.3 | 8.6 | 8.9 | 9.3 |
| 120° | 5.9 | 7.2 | 7.9 | 8.3 | 8.8 | 9.3 | 9.8 |
| 135° | 5.3 | 6.6 | 7.5 | 8.0 | 8.5 | 9.0 | 10.3 |
| 150° | 4.4 | 5.6 | 6.7 | 7.5 | 7.9 | 8.2 | 9.0 |
| Beat VMG | 3.7 | 4.5 | 5.0 | 5.3 | 5.5 | 5.6 | 5.7 |
| Run VMG | 3.9 | 4.8 | 5.8 | 6.5 | 6.8 | 7.3 | 8.1 |
Estimated Value
Low ConfidenceEstimated Cost of Ownership
Based on 40ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
17 reported issues across 6 systems for the J/120, compiled from owner reports in sailing forums and owner-association material.
