ELAN 320
Specifications
Hull
| LOA | 31.33 ft |
| LWL | 28.58 ft |
| Beam | 10.56 ft |
| Draft | 7.05 ft |
| Displacement | 8,135 lb |
| Ballast | 1,984.1 lb |
| Hull speed1.34·√LWL | 7.2 kn |
Rig & Sails
| Iforetriangle height | 40.19 ft |
| Jforetriangle base | 11.75 ft |
| Pmainsail luff | 39.53 ft |
| Emainsail foot | 13.55 ft |
| FLforestay | 11.8 ft |
| Mainsail | 525.4 sq ft |
| Jib (100%) | 236.1 sq ft |
| Spinnaker | 401.4 sq ft |

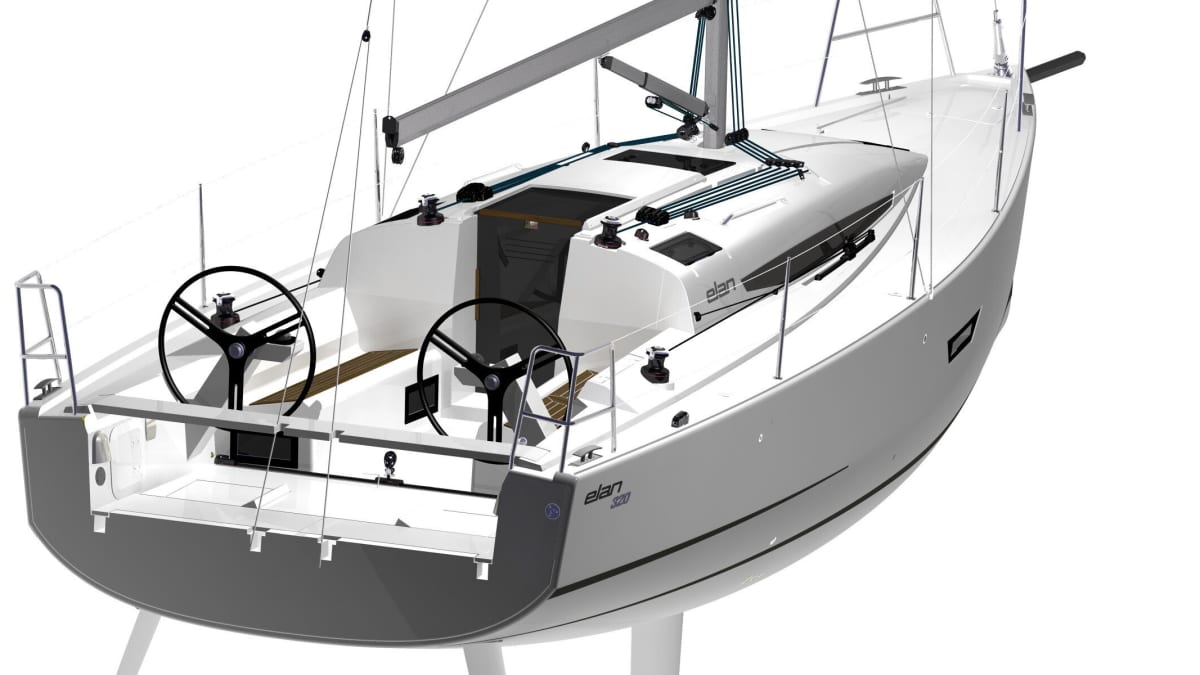

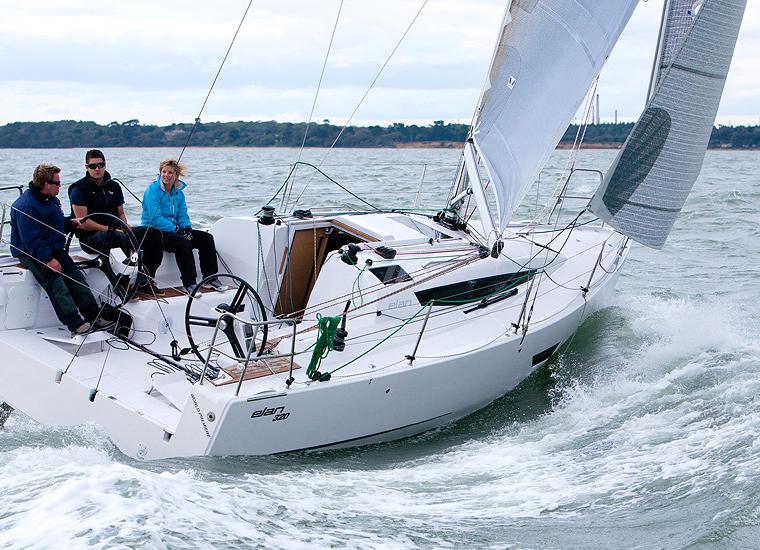

About the ELAN 320
Keel options: Draft 2.15m / 1.90m / 1.50m Ballast 900kg / 1050kg / 1060kg Mainsail 30.15 m² Jib 23.47 m² Gennaker 75 m²
The Elan 320 is a modern fractional sloop designed by Rob Humphreys and built by Elan Yachts, with production records indicating a build year of 2012. While the exact total hull count is unspecified in the available data, the vessel is characterized by a displacement of 8135.0 lb and a beam of 10.56 ft, reflecting a design focused on performance and interior volume.
- Best for:
- This boat suits coastal cruisers and performance-oriented sailors who prioritize a responsive, lightweight platform with a comfortable interior layout. Its fractional rig and relatively low displacement make it well-suited for active weekend cruising and short offshore passages rather than heavy-weather bluewater expeditions.
- Bluewater capability:
- With a displacement of 8135.0 lb and a capsize ratio of 2.1, the Elan 320 is designed for coastal and nearshore cruising rather than extended bluewater voyaging. Its light displacement and fin keel configuration prioritize speed and handling in moderate conditions over the heavy seakeeping required for remote offshore passages.
- Comparables:
- Comparable boats from this era include the Beneteau First 32.7 and the J/105, which share similar fractional sloop rigs and performance-oriented hull forms. These vessels offer similar beam-to-length ratios and target the same market of sailors seeking a blend of racing capability and cruising comfort.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.0 | 6.0 | 6.6 | 6.9 | 7.0 | 7.1 | 7.2 |
| 60° | 5.3 | 6.3 | 6.8 | 7.1 | 7.3 | 7.3 | 7.4 |
| 75° | 5.6 | 6.5 | 7.0 | 7.3 | 7.5 | 7.8 | 7.9 |
| 90° | 5.7 | 6.7 | 7.1 | 7.3 | 7.6 | 7.9 | 8.5 |
| 110° | 5.7 | 6.7 | 7.2 | 7.7 | 8.0 | 8.2 | 8.7 |
| 120° | 5.5 | 6.6 | 7.1 | 7.5 | 8.1 | 8.6 | 9.2 |
| 135° | 5.0 | 6.1 | 6.8 | 7.2 | 7.7 | 8.2 | 9.4 |
| 150° | 4.2 | 5.2 | 6.2 | 6.8 | 7.2 | 7.6 | 8.6 |
| Beat VMG | 3.3 | 4.0 | 4.5 | 4.9 | 5.0 | 5.1 | 5.2 |
| Run VMG | 3.6 | 4.5 | 5.3 | 6.1 | 6.7 | 7.1 | 7.8 |
