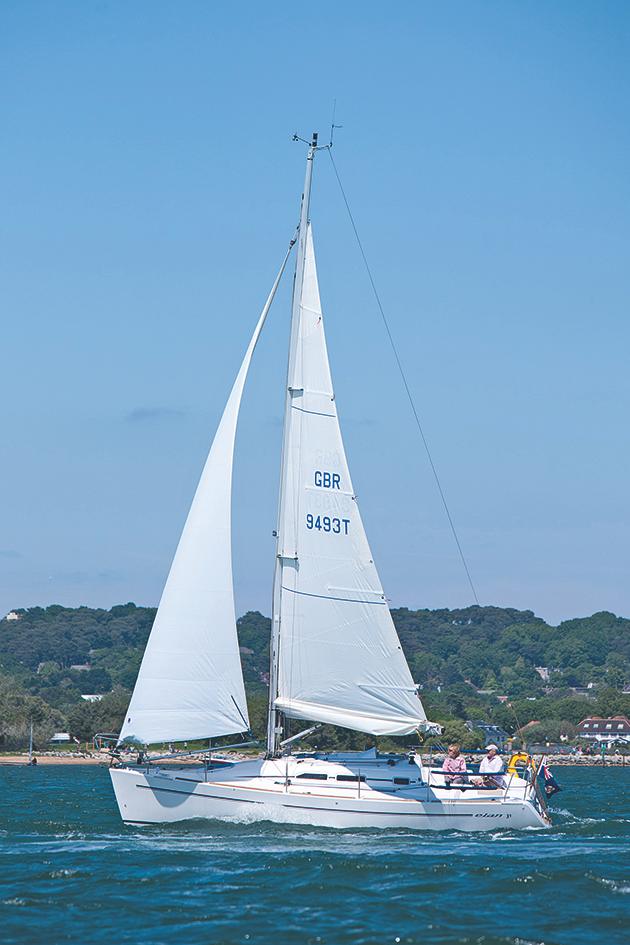

ELAN 31 (HUMPHREYS)
Specifications
Hull
| LOA | 30.18 ft |
| LWL | 26.93 ft |
| Beam | 10.5 ft |
| Draft | 6.07 ft |
| Displacement | 8,377 lb |
| Ballast | 2,865.8 lb |
| Hull speed1.34·√LWL | 7.0 kn |
Rig & Sails
| Iforetriangle height | 38.52 ft |
| Jforetriangle base | 10.76 ft |
| Pmainsail luff | 37.6 ft |
| Emainsail foot | 14.47 ft |
| FLforestay | 10.8 ft |
| Mainsail | 501 sq ft |
| Jib (100%) | 207.2 sq ft |
| Spinnaker | 352.3 sq ft |
About the ELAN 31 (HUMPHREYS)
Shallow draft: 1.5m/4.92' Not to be confused with an earlier (IOR 1/2 ton - 1983) ELAN 31 from the same builder.
The Elan 31 is a fractional sloop designed by Rob Humphreys and built by Elan Marine (SVN) in 2002. With a displacement of 8377.0 lb and a beam of 10.5 ft, this model represents a specific vintage of performance-oriented cruising yachts.
- Best for:
- This boat suits coastal cruisers and weekend sailors who prioritize interior volume and modern fractional rig performance over heavy offshore displacement.
- Bluewater capability:
- With a D/L ratio of 191.48 and a capsize ratio of 2.07, the Elan 31 is designed for coastal and nearshore cruising rather than heavy bluewater passagemaking.
- Comparables:
- Comparable boats include the Beneteau First 303 and Oyster 30, which share similar fractional rig configurations and target the same performance-cruising market segment.
Performance
ORC Performance Data(21 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.7 | 5.6 | 6.2 | 6.5 | 6.7 | 6.7 | 6.7 |
| 60° | 5.0 | 5.9 | 6.4 | 6.7 | 6.8 | 6.9 | 7.0 |
| 75° | 5.2 | 6.1 | 6.6 | 6.9 | 7.1 | 7.2 | 7.4 |
| 90° | 5.1 | 6.1 | 6.6 | 6.9 | 7.2 | 7.4 | 7.8 |
| 110° | 5.0 | 6.1 | 6.8 | 7.1 | 7.5 | 7.8 | 8.1 |
| 120° | 4.9 | 6.0 | 6.7 | 7.1 | 7.5 | 7.8 | 8.4 |
| 135° | 4.4 | 5.5 | 6.3 | 6.8 | 7.2 | 7.6 | 8.3 |
| 150° | 3.8 | 4.8 | 5.7 | 6.4 | 6.9 | 7.2 | 7.9 |
| Beat VMG | 3.0 | 3.7 | 4.2 | 4.5 | 4.6 | 4.7 | 4.6 |
| Run VMG | 3.3 | 4.2 | 4.9 | 5.7 | 6.2 | 6.7 | 7.3 |
Pricing
We don't have market pricing data for the ELAN 31 (HUMPHREYS) yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 30.18ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
18 reported issues across 9 systems for the ELAN 31 (HUMPHREYS), compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a ELAN 31 (HUMPHREYS)? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 18 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your ELAN 31 (HUMPHREYS)?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Brands sometimes mentioned for this model: Yanmar, Volvo Penta, Volvo-Penta, Universal — is it one of these?
