EDEL 4
Specifications
Hull
| LOA | 23.46 ft |
| LWL | 19.36 ft |
| Beam | 8.2 ft |
| Draft | 4.26 ft |
| Displacement | 2,755 lb |
| Ballast | 992.1 lb |
| Hull speed1.34·√LWL | 5.9 kn |

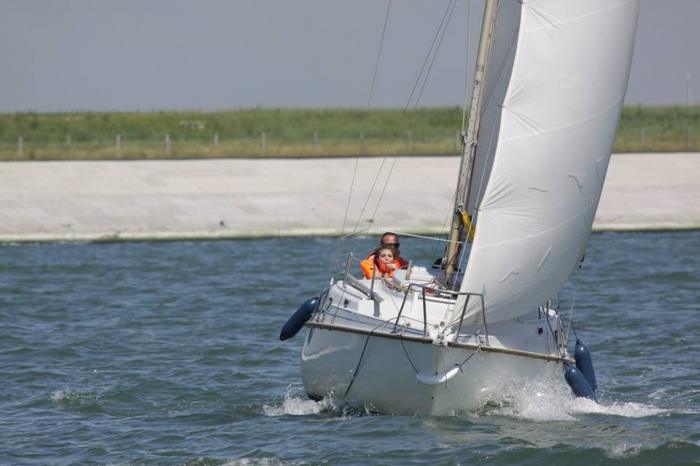

About the EDEL 4
Available with Swing and fixed keel.
Designed by Maurice Edel and built by Edel in France from 1971–1979, the Edel 4 is a compact 23.46 ft masthead sloop with a production run of 800 hulls. Its lightweight displacement of 2755.0 lb and fin keel configuration reflect a design philosophy focused on agility and ease of handling rather than heavy offshore comfort.
- Best for:
- This boat is best suited for coastal cruising and daysailing, appealing to single-handers or couples who prioritize easy trailering and dockability over long-range bluewater passage-making.
- Bluewater capability:
- With a low displacement of 2755.0 lb and a capsize ratio of 2.34, the Edel 4 is primarily a coastal cruiser with limited bluewater capability due to its light weight and short waterline.
- Comparables:
- Comparable boats include the O'Day 23 and Pearson 23, which share similar dimensions and roles as popular, trailerable coastal cruisers from the 1970s with comparable beam and draft profiles.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.9 | 4.6 | 5.1 | 5.3 | 5.5 | 5.6 | 5.6 |
| 60° | 4.2 | 4.9 | 5.3 | 5.5 | 5.7 | 5.8 | 5.8 |
| 75° | 4.4 | 5.1 | 5.5 | 5.7 | 5.9 | 6.1 | 6.3 |
| 90° | 4.4 | 5.1 | 5.5 | 5.8 | 6.1 | 6.2 | 6.5 |
| 110° | 4.3 | 5.2 | 5.6 | 5.9 | 6.2 | 6.5 | 6.9 |
| 120° | 4.1 | 5.0 | 5.5 | 5.8 | 6.1 | 6.4 | 7.0 |
| 135° | 3.7 | 4.6 | 5.3 | 5.6 | 5.9 | 6.2 | 6.7 |
| 150° | 3.2 | 4.0 | 4.7 | 5.2 | 5.5 | 5.7 | 6.2 |
| Beat VMG | 2.5 | 3.0 | 3.4 | 3.6 | 3.7 | 3.8 | 3.8 |
| Run VMG | 2.8 | 3.4 | 4.1 | 4.6 | 5.1 | 5.4 | 5.8 |
Pricing
We don't have market pricing data for the EDEL 4 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 23.46ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
2 reported issues across 2 systems for the EDEL 4, compiled from owner reports in sailing forums and owner-association material.
