CS 30
Specifications
Hull
| LOA | 30 ft |
| LWL | 25.42 ft |
| Beam | 10.25 ft |
| Draft | 5.5 ft |
| Shoal Draft version | 4.25 ft(1.3 m) |
| Displacement | 8,000 lb |
| Ballast | 3,440 lb |
| Hull speed1.34·√LWL | 6.8 kn |
Rig & Sails
| Iforetriangle height | 42 ft |
| Jforetriangle base | 12 ft |
| Pmainsail luff | 36.5 ft |
| Emainsail foot | 11.5 ft |
| FLforestay | 12 ft |
| Mainsail | 478.7 sq ft |
| Jib (100%) | 252 sq ft |
| Spinnaker | 428.4 sq ft |
About the CS 30
This was the most popular model built by CS yachts with more than 90 built in the first year alone. Shoal draft (wing keel with spade rudder); 4.5'/1.37m.

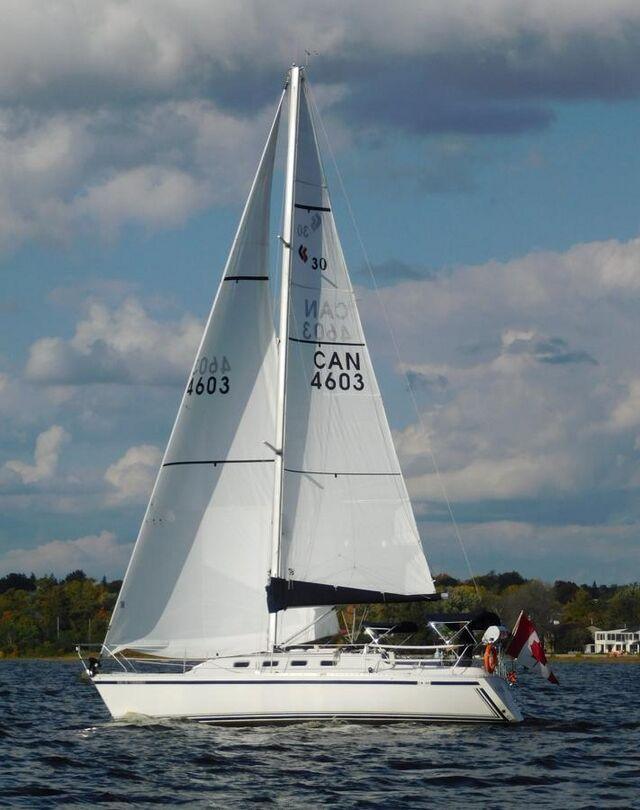

The CS 30 is a classic Canadian cruising sloop designed by Tony Castro and built by Canadian Sailcraft between 1984 and 1990, with a total production run of 500 hulls. It is recognized for its robust construction and traditional layout, serving as a reliable platform for coastal and offshore cruising.
- Best for:
- This boat is well-suited for coastal cruisers and couples seeking a comfortable, stable, and easy-to-handle vessel with ample interior space. Its manageable size and proven design also make it a strong candidate for single-handers or small families looking for a safe, no-nonsense cruiser.
- Bluewater capability:
- With a displacement of 8000.0 lb and a capsize ratio of 2.05, the CS 30 offers good stability and seaworthiness for offshore passages, supported by its fin keel and masthead sloop rig.
- Comparables:
- Comparable boats from this era include the Cal 30 and the O'Day 302, which share similar dimensions and a focus on comfortable coastal cruising. The CS 30 distinguishes itself with a slightly heavier displacement and a reputation for solid build quality typical of Canadian Sailcraft.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.9 | 5.1 | 5.9 | 6.2 | 6.4 | 6.5 | 6.5 | 6.5 | 6.5 |
| 60° | 4.1 | 5.3 | 6.0 | 6.3 | 6.5 | 6.6 | 6.7 | 6.7 | 6.7 |
| 75° | 4.3 | 5.5 | 6.1 | 6.4 | 6.7 | 6.8 | 6.9 | 7.0 | 7.1 |
| 90° | 4.1 | 5.4 | 6.1 | 6.5 | 6.8 | 6.9 | 7.0 | 7.3 | 7.5 |
| 110° | 4.0 | 5.4 | 6.3 | 6.7 | 7.0 | 7.2 | 7.5 | 7.8 | 8.1 |
| 120° | 3.9 | 5.2 | 6.2 | 6.6 | 6.9 | 7.2 | 7.5 | 8.2 | 8.7 |
| 135° | 3.4 | 4.7 | 5.8 | 6.3 | 6.7 | 7.0 | 7.4 | 8.2 | 9.2 |
| 150° | 2.8 | 4.0 | 5.0 | 5.9 | 6.3 | 6.7 | 6.9 | 7.5 | 8.2 |
| Beat VMG | 2.5 | 3.4 | 4.0 | 4.4 | 4.6 | 4.7 | 4.7 | 4.7 | 4.5 |
| Run VMG | 2.5 | 3.5 | 4.4 | 5.1 | 5.5 | 5.9 | 6.2 | 6.8 | 7.2 |
Market Price
Estimated Cost of Ownership
Based on 30ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
3 reported issues across 2 systems for the CS 30, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a CS 30? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 3 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
