CATALINA 28 MKII
Specifications
Hull
| LOA | 29.42 ft |
| LWL | 23.83 ft |
| Beam | 10.33 ft |
| Draft | 5.17 ft |
| Displacement | 8,300 lb |
| Ballast | 3,199.6 lb |
| Hull speed1.34·√LWL | 6.5 kn |
Rig & Sails
| Pmainsail luff | 14.63 ft |

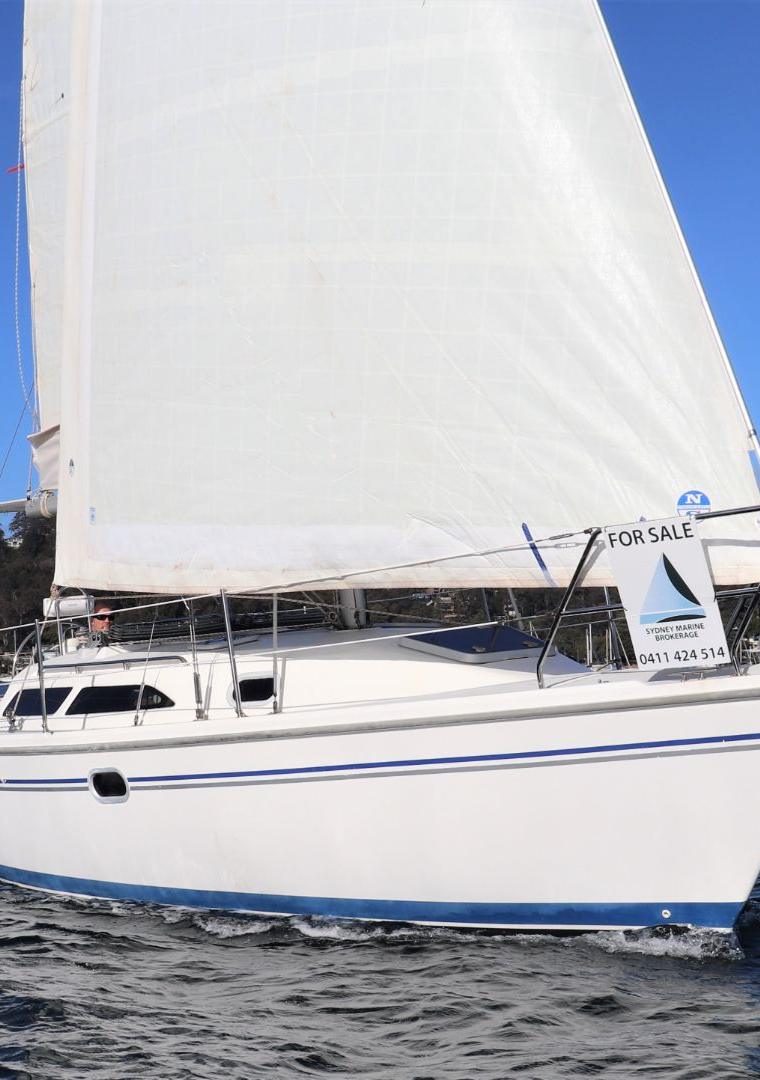

About the CATALINA 28 MKII
Hull length: 28.6 ft /8.69 m A taller mast was available. Winged Keel vers. disp.: 8600 lbs; bal.: 3500 lbs; draft: 3.75' Changes from previous version: Aft hull section widened. (larger aft cabin) Redesigned galley. Improvement of basic sail controls.
Designed by Gerry Douglas and built by Catalina Yachts (USA) from 1995–2010, the Catalina 28 MKII is a popular coastal cruiser with a displacement of 8300.0 lb and a beam of 10.33 ft. While the exact hulls built count is unspecified, the model's longevity and widespread owner reports highlight its role as a reliable, easy-to-handle trailerable yacht.
- Best for:
- This boat is ideally suited for coastal cruisers and weekend warriors who prioritize ease of handling and trailerability over high-performance racing. Its moderate displacement and fin keel design make it accessible for single-handers and couples seeking a low-maintenance cruising platform.
- Bluewater capability:
- With a capsize ratio of 2.04 and a displacement of 8300.0 lb, the boat is generally considered suitable for protected coastal waters and short offshore passages rather than extended bluewater voyaging.
- Comparables:
- Comparable boats from this era include the Cal 27 and O'Day 28, which share similar displacement and trailerable footprints. These models are comparable because they target the same market of budget-conscious coastal cruisers seeking proven, conservative hull forms.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.0 | 4.8 | 5.3 | 5.8 | 6.1 | 6.2 | 6.3 |
| 60° | 4.3 | 5.1 | 5.7 | 6.1 | 6.3 | 6.5 | 6.6 |
| 75° | 4.6 | 5.4 | 6.0 | 6.4 | 6.5 | 6.7 | 6.9 |
| 90° | 4.6 | 5.4 | 6.0 | 6.3 | 6.5 | 6.7 | 7.1 |
| 110° | 4.1 | 4.9 | 5.7 | 6.2 | 6.5 | 6.7 | 7.1 |
| 120° | 3.8 | 4.7 | 5.4 | 6.0 | 6.4 | 6.6 | 7.0 |
| 135° | 3.4 | 4.3 | 5.0 | 5.6 | 6.1 | 6.4 | 6.8 |
| 150° | 2.9 | 3.8 | 4.5 | 5.1 | 5.7 | 6.2 | 6.6 |
| Beat VMG | 2.5 | 3.0 | 3.4 | 3.7 | 3.9 | 4.1 | 4.2 |
| Run VMG | 2.6 | 3.4 | 4.1 | 4.8 | 5.3 | 5.8 | 6.4 |
Estimated Value
Medium ConfidenceAsking price by model year
23 listings · boat years 1991–2006 · median $29,900
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 29.42ft LOA. Actual costs vary by condition, usage, and local rates.
Featured YouTube Videos
Known Issues & Pre-Purchase Inspection
13 reported issues across 9 systems for the CATALINA 28 MKII, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a CATALINA 28 MKII? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 13 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your CATALINA 28 MKII?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Brands sometimes mentioned for this model: Yanmar, Universal — is it one of these?
Already know your engine? Search all engines → to find its exact parts.
