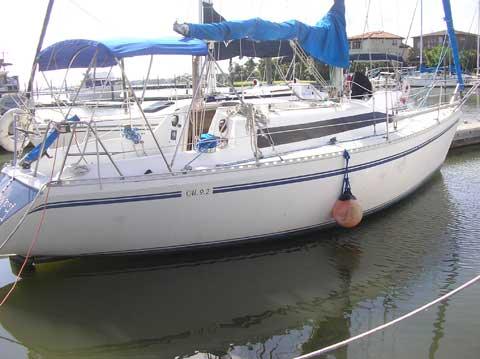

CAL 30
Specifications
Hull
| LOA | 30 ft |
| LWL | 24.5 ft |
| Beam | 10 ft |
| Draft | 4.5 ft |
| Displacement | 9,600 lb |
| Ballast | 3,500.2 lb |
| Hull speed1.34·√LWL | 6.6 kn |
Rig & Sails
| Iforetriangle height | 37 ft |
| Jforetriangle base | 12 ft |
| Pmainsail luff | 32 ft |
| Emainsail foot | 14.3 ft |
| FLforestay | 12 ft |
| Mainsail | 436.8 sq ft |
| Jib (100%) | 210 sq ft |
| Spinnaker | 357 sq ft |
About the CAL 30
Alternate tall rig: I: 37.0' J: 12.0' P: 32.0' E: 14.3' Replaced with another 30 footer, the CAL 2-30, in 1968.
Designed by Lapworth and built by Jensen Marine (USA) from 1961–1967, the CAL 30 is a classic heavy-displacement cruiser with 123 hulls produced. Its substantial 9600.0 lb displacement and 3500.2 lb ballast provide a stable, comfortable platform that remains popular among owners seeking a robust, traditional sailing experience.
- Best for:
- This boat is best suited for coastal cruisers and weekend sailors who prioritize comfort and stability over high-speed performance, as well as those willing to invest in ongoing maintenance of its aging systems.
- Bluewater capability:
- With a D/L ratio of 291.42 and a Capsize ratio of 1.89, the CAL 30 possesses the heavy displacement and low center of gravity necessary for safe offshore passage making, provided critical structural components are sound.
- Comparables:
- Comparable boats include the Cal 32 and Pearson 303, which share similar heavy-displacement characteristics and masthead sloop rigs from the same era, offering comparable interior volume and cruising comfort.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.4 | 4.5 | 5.3 | 5.9 | 6.2 | 6.3 | 6.4 | 6.5 | 6.4 |
| 60° | 3.6 | 4.8 | 5.6 | 6.1 | 6.4 | 6.5 | 6.6 | 6.7 | 6.7 |
| 75° | 3.7 | 5.0 | 5.8 | 6.2 | 6.5 | 6.7 | 6.8 | 7.0 | 7.0 |
| 90° | 3.6 | 4.9 | 5.8 | 6.4 | 6.7 | 6.9 | 7.0 | 7.3 | 7.4 |
| 110° | 3.6 | 4.9 | 5.9 | 6.5 | 6.8 | 7.1 | 7.4 | 7.7 | 8.0 |
| 120° | 3.4 | 4.7 | 5.7 | 6.3 | 6.7 | 7.1 | 7.4 | 7.9 | 8.4 |
| 135° | 3.1 | 4.3 | 5.2 | 6.0 | 6.5 | 6.8 | 7.2 | 7.8 | 8.4 |
| 150° | 2.5 | 3.6 | 4.6 | 5.5 | 6.1 | 6.5 | 6.9 | 7.5 | 8.1 |
| Beat VMG | 2.2 | 3.0 | 3.6 | 4.0 | 4.3 | 4.4 | 4.5 | 4.5 | 4.4 |
| Run VMG | 2.2 | 3.1 | 4.0 | 4.8 | 5.4 | 6.0 | 6.4 | 7.0 | 7.5 |
