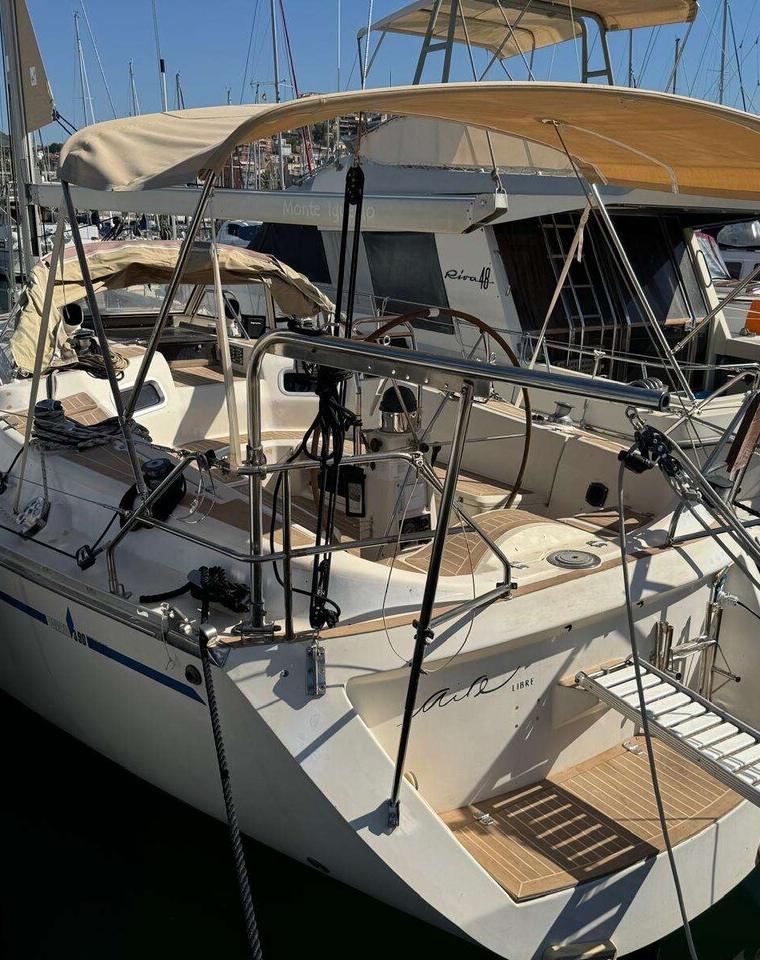

BAVARIA 390
Specifications
Hull
| LOA | 39.86 ft |
| Beam | 13.12 ft |
| Draft | 5.91 ft |
| Displacement | 17,637 lb |
| Ballast | 6,613.9 lb |
Rig & Sails
| Iforetriangle height | 49.22 ft |
| Jforetriangle base | 13.29 ft |
| Pmainsail luff | 50.86 ft |
| Emainsail foot | 16.08 ft |
| FLforestay | 13.3 ft |
| Mainsail | 768.7 sq ft |
| Jib (100%) | 327.1 sq ft |
| Spinnaker | 556 sq ft |
About the BAVARIA 390
Hull Length: 11.74m / 38.52ft Shallow draft keel: 1.5m / 4.92ft SA(reported) above = Main + Genoa Sail area: -Main: 37 sqm -jib: 28 sqm -Genoa: 50 sqm -Storm jib: 8 sqm -Spinnaker: 98 sqm Originally popular in the charter trade.
The Bavaria 390, designed by Axel Mohnhaupt and built by Bavaria Yachts (GER) in 1990, is a fractional sloop with a displacement of 17637.0 lb and a max draft of 5.91 ft. While the exact hulls built count is unknown, the model is characterized by a capsize ratio of 2.02 and a SA/D ratio of 22.19, reflecting its performance-oriented design.
- Best for:
- This boat suits coastal cruisers and performance-oriented sailors who prioritize interior volume and ease of handling over heavy offshore ruggedness. It is well-suited for couples or small families seeking a comfortable day-sailer or short-cruiser, particularly those willing to manage specific maintenance issues.
- Bluewater capability:
- With a low capsize ratio of 2.02 and a fin keel, the Bavaria 390 is primarily a coastal cruiser rather than a dedicated bluewater vessel, though its displacement of 17637.0 lb provides reasonable stability for protected offshore passages.
- Comparables:
- Comparable boats include the Beneteau First 36.7 and the O'Day 38, as they share similar fractional sloop rigs, beam widths around 13 ft, and a focus on interior space over heavy displacement. These models also target the same market of recreational cruisers seeking modern layouts from the late 1980s and early 1990s.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.8 | 5.2 | 6.1 | 6.8 | 7.0 | 7.2 | 7.2 | 7.3 | 7.2 |
| 60° | 4.1 | 5.5 | 6.4 | 7.0 | 7.3 | 7.4 | 7.5 | 7.5 | 7.5 |
| 75° | 4.3 | 5.7 | 6.6 | 7.2 | 7.5 | 7.7 | 7.8 | 7.9 | 8.0 |
| 90° | 4.4 | 5.9 | 6.9 | 7.4 | 7.7 | 7.9 | 8.0 | 8.3 | 8.4 |
| 110° | 4.2 | 5.7 | 6.8 | 7.4 | 7.8 | 8.2 | 8.5 | 8.9 | 9.3 |
| 120° | 4.0 | 5.5 | 6.6 | 7.3 | 7.7 | 8.1 | 8.5 | 9.3 | 10.0 |
| 135° | 3.5 | 4.9 | 6.1 | 6.9 | 7.5 | 7.8 | 8.2 | 9.1 | 10.4 |
| 150° | 2.9 | 4.1 | 5.3 | 6.2 | 6.9 | 7.4 | 7.7 | 8.4 | 9.2 |
| Beat VMG | 2.4 | 3.4 | 4.1 | 4.6 | 4.8 | 4.9 | 5.0 | 4.9 | 4.8 |
| Run VMG | 2.5 | 3.6 | 4.5 | 5.3 | 6.0 | 6.5 | 6.9 | 7.6 | 8.2 |
