ARCONA 460
Specifications
Hull
| LOA | 45.93 ft |
| LWL | 41.17 ft |
| Beam | 13.78 ft |
| Draft | 8.01 ft/ 9.19 ft min |
| Deep Draft | 2.8 ft |
| Displacement | 22,487 lb |
| Ballast | 9,370.3 lb |
| Hull speed1.34·√LWL | 8.6 kn |
Rig & Sails
| Iforetriangle height | 62.01 ft |
| Jforetriangle base | 17.65 ft |
| Pmainsail luff | 60.69 ft |
| Emainsail foot | 22.24 ft |
| FLforestay | 17.7 ft |
| Mainsail | 796.53 sq ft |
| Jib (100%) | 495.14 sq ft |
| Spinnaker | 1,808.34 sq ft |

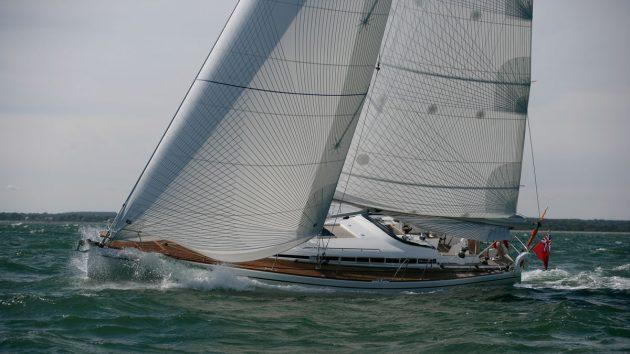

About the ARCONA 460
Hot water 40l Holding 70l Main 74m2 Furling gen. 74m2 Jib 110% 51m2 Self tacking jib: 46m2 Spinnaker 168m2 Gennaker 163m2
Designed by Stefan Qviberg and built by Arcona Yachts (SWE) in 2005, the Arcona 460 is a robust fractional sloop with a displacement of 22487.0 lb and a beam of 13.78 ft. While the exact number of hulls built is unknown, the model is characterized by its heavy displacement and substantial ballast of 9370.3 lb, reflecting its serious offshore pedigree.
- Best for:
- This vessel suits experienced bluewater cruisers and offshore racers who prioritize seakeeping and safety over light-air performance, particularly those willing to manage complex mechanical systems and high maintenance standards.
- Bluewater capability:
- With a capsize ratio of 1.96 and a D/L ratio of 143.86, the Arcona 460 exhibits exceptional stability and motion comfort, making it highly suitable for offshore passages despite its relatively short production run.
- Comparables:
- Comparable to other heavy-displacement Scandinavian designs from the mid-2000s such as the Hallberg-Rassy 442 or Nauticat 44, these boats share similar fractional rigs, heavy ballast ratios, and a focus on structural integrity for long-range cruising.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 6.3 | 7.4 | 8.0 | 8.2 | 8.4 | 8.4 | 8.5 |
| 60° | 6.7 | 7.7 | 8.2 | 8.4 | 8.6 | 8.7 | 8.8 |
| 75° | 6.9 | 7.9 | 8.4 | 8.7 | 8.9 | 9.0 | 9.2 |
| 90° | 6.8 | 7.9 | 8.5 | 8.8 | 9.1 | 9.3 | 9.7 |
| 110° | 6.5 | 7.7 | 8.4 | 8.9 | 9.3 | 9.7 | 10.3 |
| 120° | 6.1 | 7.4 | 8.3 | 8.8 | 9.3 | 9.7 | 10.6 |
| 135° | 5.4 | 6.8 | 7.8 | 8.5 | 8.9 | 9.4 | 10.5 |
| 150° | 4.5 | 5.8 | 6.9 | 7.8 | 8.4 | 8.9 | 9.8 |
| Beat VMG | 4.1 | 5.0 | 5.5 | 5.8 | 5.9 | 6.0 | 6.1 |
| Run VMG | 3.9 | 5.0 | 6.0 | 6.8 | 7.5 | 8.1 | 9.0 |
Pricing
We don't have market pricing data for the ARCONA 460 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 45.93ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
20 reported issues across 8 systems for the ARCONA 460, compiled from owner reports in sailing forums and owner-association material.
