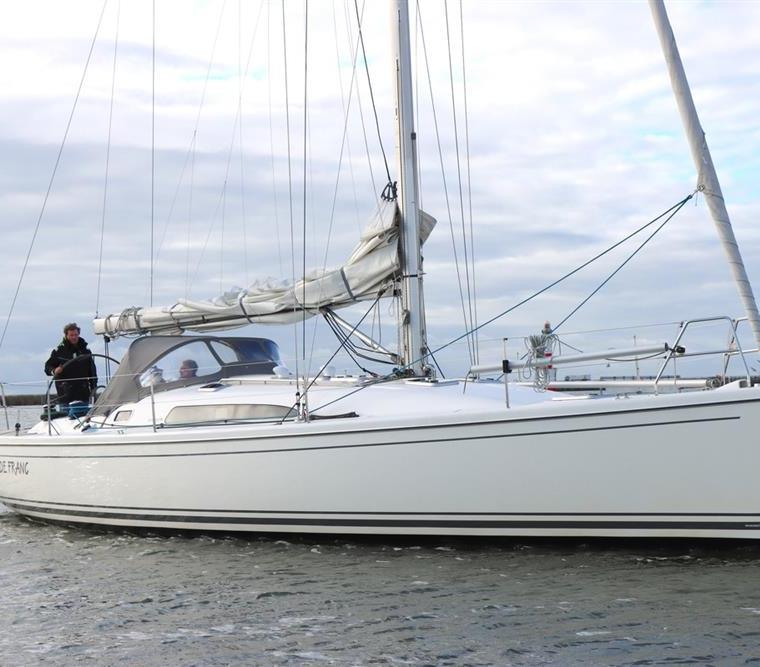

WINNER 12.20
Specifications
Hull
| LOA | 40.03 ft |
| LWL | 34.12 ft |
| Beam | 12.3 ft |
| Draft | 7.05 ft |
| Displacement | 16,314 lb |
| Ballast | 6,833.9 lb |
| Hull speed1.34·√LWL | 7.8 kn |
Rig & Sails
| Iforetriangle height | 51.84 ft |
| Jforetriangle base | 14.11 ft |
| Pmainsail luff | 51.84 ft |
| Emainsail foot | 17.88 ft |
| FLforestay | 14.1 ft |
| Mainsail | 866.3 sq ft |
| Jib (100%) | 365.7 sq ft |
| Spinnaker | 621.7 sq ft |
About the WINNER 12.20
The Winner 12.20 is a fractional sloop designed by Cees van Tongeren and built by Winner Yachts, with production records indicating a build year of 2009. While the exact total hull count is not definitively established in the source data, the vessel is characterized by a displacement of 16314.0 lb and a beam of 12.3 ft, reflecting a robust, performance-oriented cruising design.
- Best for:
- This boat is well-suited for coastal and offshore cruisers who prioritize a stable, comfortable ride, as indicated by its Comfort ratio of 24.83 and moderate Capsize ratio of 1.94. It appeals to owners seeking a modern, fractional-rigged sloop with reliable Volvo Penta or Yanmar propulsion and comprehensive Furuno electronics.
- Bluewater capability:
- With a displacement of 16314.0 lb, a D/L ratio of 183.35, and a low Capsize ratio of 1.94, the Winner 12.20 demonstrates strong inherent stability and seaworthiness for bluewater passages, supported by its fin keel and fractional rig configuration.
- Comparables:
- Comparable boats include the Hallberg-Rassy 42 and the Beneteau Oceanis 40, which share similar fractional sloop rigs, displacement ranges, and dual-purpose cruising/performance profiles from the late 2000s. These models offer similar beam and draft characteristics, making them direct competitors in the 40-foot performance cruiser segment.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.4 | 6.4 | 7.1 | 7.4 | 7.5 | 7.6 | 7.6 |
| 60° | 5.7 | 6.7 | 7.3 | 7.6 | 7.7 | 7.8 | 7.9 |
| 75° | 5.9 | 6.9 | 7.4 | 7.8 | 8.0 | 8.1 | 8.3 |
| 90° | 5.8 | 6.9 | 7.5 | 7.9 | 8.1 | 8.3 | 8.7 |
| 110° | 5.8 | 7.0 | 7.6 | 8.1 | 8.4 | 8.7 | 9.1 |
| 120° | 5.6 | 6.8 | 7.5 | 8.0 | 8.4 | 8.8 | 9.5 |
| 135° | 5.0 | 6.2 | 7.1 | 7.7 | 8.1 | 8.5 | 9.4 |
| 150° | 4.2 | 5.4 | 6.3 | 7.1 | 7.7 | 8.1 | 8.9 |
| Beat VMG | 3.5 | 4.3 | 4.9 | 5.1 | 5.3 | 5.3 | 5.3 |
| Run VMG | 3.6 | 4.6 | 5.5 | 6.3 | 6.9 | 7.5 | 8.2 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 40.03ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the WINNER 12.20yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a WINNER 12.20? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
