WAVELENGTH 24
Specifications
Hull
| LOA | 24 ft |
| LWL | 20.33 ft |
| Beam | 9 ft |
| Draft | 4.5 ft |
| Displacement | 2,500 lb |
| Ballast | 1,100 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 31.25 ft |
| Jforetriangle base | 9.5 ft |
| Pmainsail luff | 27.33 ft |
| Emainsail foot | 10.25 ft |
| FLforestay | 9.5 ft |
| Mainsail | 299.7 sq ft |
| Jib (100%) | 148.4 sq ft |
| Spinnaker | 252.3 sq ft |

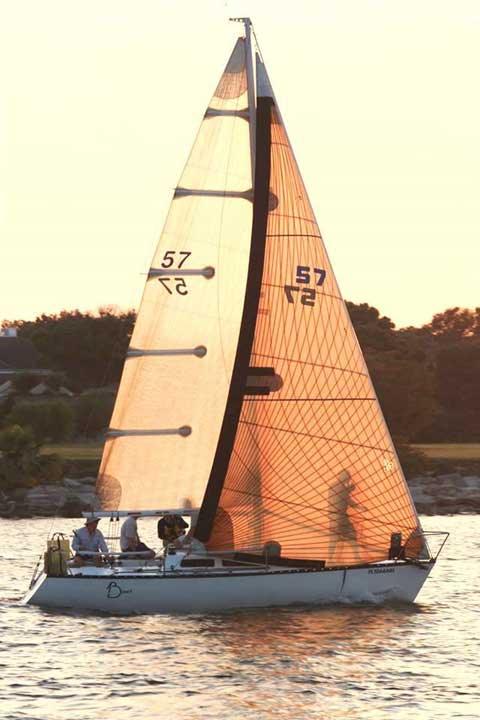

About the WAVELENGTH 24
In 2005, the WAVELENGTH 24 was brought back into production.
Designed by Paul Lindenberg and built by W. D. Schock Corp.(USA) from 1982–1990, the Wavelength 24 is a compact, performance-oriented sloop with a production run of 87 hulls. Its light displacement of 2500.0 lb and high SA/D ratio of 25.08 define it as a nimble, responsive day sailor that prioritizes speed over heavy-weather stability.
- Best for:
- This boat is best suited for coastal cruisers, weekend racers, and single-handers who value ease of handling and performance in light to moderate winds, rather than long-distance offshore passage-making.
- Bluewater capability:
- With a low displacement of 2500.0 lb, a capsize ratio of 2.66, and a comfort ratio of 9.66, the Wavelength 24 is not well-suited for serious bluewater cruising due to its light weight and lack of reserve buoyancy for heavy seas.
- Comparables:
- Comparable boats include the Cal 24 and O'Day 24, which share similar dimensions and roles, but the Wavelength 24 distinguishes itself with a lighter displacement and more modern, performance-focused hull form designed by Paul Lindenberg.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.8 | 4.9 | 5.7 | 6.0 | 6.2 | 6.3 | 6.3 | 6.4 | 6.3 |
| 60° | 4.0 | 5.2 | 5.8 | 6.2 | 6.4 | 6.5 | 6.6 | 6.6 | 6.6 |
| 75° | 4.1 | 5.3 | 5.9 | 6.3 | 6.6 | 6.8 | 6.9 | 7.1 | 7.2 |
| 90° | 4.0 | 5.2 | 5.8 | 6.3 | 6.6 | 6.9 | 7.2 | 7.7 | 8.0 |
| 110° | 3.7 | 5.0 | 5.9 | 6.4 | 6.8 | 7.3 | 7.6 | 8.2 | 8.8 |
| 120° | 3.6 | 4.8 | 5.8 | 6.3 | 6.8 | 7.3 | 7.8 | 9.2 | 10.5 |
| 135° | 3.1 | 4.4 | 5.4 | 6.0 | 6.5 | 6.9 | 7.5 | 9.3 | 12.7 |
| 150° | 2.6 | 3.8 | 4.8 | 5.6 | 6.1 | 6.5 | 7.0 | 8.1 | 11.1 |
| Beat VMG | 2.4 | 3.3 | 3.9 | 4.3 | 4.5 | 4.5 | 4.6 | 4.5 | 4.3 |
| Run VMG | 2.3 | 3.3 | 4.1 | 4.9 | 5.5 | 6.0 | 6.4 | 7.2 | 9.6 |
Estimated Value
Low ConfidenceEstimated Cost of Ownership
Based on 24ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
34 reported issues across 9 systems for the WAVELENGTH 24, compiled from owner reports in sailing forums and owner-association material.
