VIPER 640
Specifications
Hull
| LOA | 21.08 ft |
| LWL | 19.08 ft |
| Beam | 8.17 ft |
| Draft | 4.83 ft/ 1.83 ft min |
| Displacement | 700 lb |
| Ballast | 185 lb |
| Hull speed1.34·√LWL | 5.9 kn |
Rig & Sails
| Iforetriangle height | 21.98 ft |
| Jforetriangle base | 7.48 ft |
| Pmainsail luff | 25.62 ft |
| Emainsail foot | 10.07 ft |
| FLforestay | 7.5 ft |
| Mainsail | 221.5 sq ft |
| Jib (100%) | 82.2 sq ft |
| Spinnaker | 139.7 sq ft |

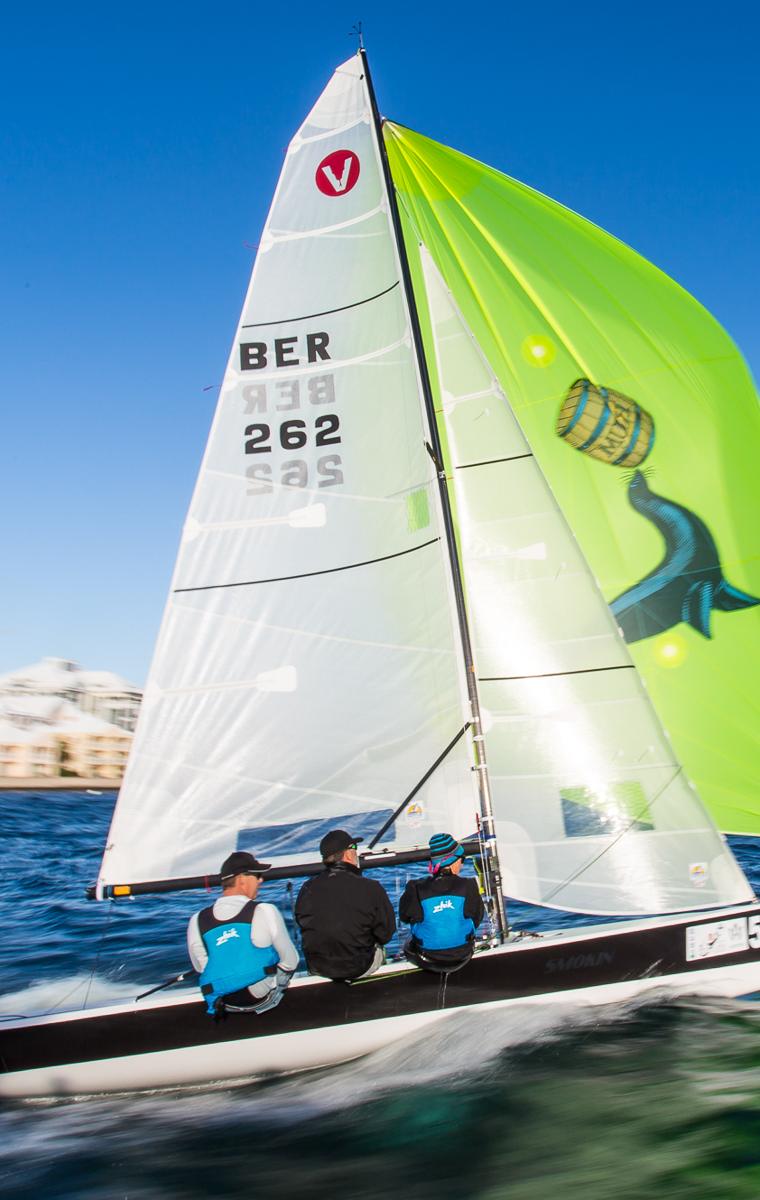

About the VIPER 640
Rondar Raceboats was appointed the class builder in 2005. Asym. spin. area 425 sf. Keel is fastened with 2 bolts while sailing. Can be raised for trailering and launched in 2 feet of water. . 2 piece carbon spar.
Performance
ORC Performance Data(4 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.2 | 5.4 | 6.0 | 6.3 | 6.5 | 6.6 | 6.7 | 6.8 | 6.7 |
| 60° | 4.4 | 5.6 | 6.3 | 6.7 | 6.9 | 7.1 | 7.2 | 7.4 | 7.3 |
| 75° | 4.4 | 5.8 | 6.6 | 7.2 | 7.6 | 8.0 | 8.3 | 8.7 | 8.8 |
| 90° | 4.4 | 5.7 | 6.6 | 7.6 | 8.3 | 8.8 | 9.3 | 9.9 | 10.3 |
| 110° | 4.4 | 5.9 | 6.9 | 7.7 | 8.4 | 9.4 | 10.2 | 11.4 | 12.3 |
| 120° | 4.3 | 5.8 | 7.0 | 8.1 | 8.9 | 9.7 | 10.4 | 12.0 | 13.1 |
| 135° | 4.0 | 5.3 | 6.4 | 7.8 | 9.3 | 10.5 | 11.4 | 13.2 | 14.7 |
| 150° | 3.2 | 4.5 | 5.6 | 6.5 | 7.9 | 9.3 | 10.9 | 13.9 | 16.3 |
| Beat VMG | 2.7 | 3.6 | 4.2 | 4.4 | 4.4 | 4.5 | 4.5 | 4.5 | 4.4 |
| Run VMG | 2.8 | 3.9 | 4.8 | 5.7 | 6.8 | 8.1 | 9.4 | 12.1 | 14.5 |
Images
Estimated Value
Low ConfidenceAsking price by model year
7 listings · boat years 1996–2013 · median $15,500
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 21.08ft LOA. Actual costs vary by condition, usage, and local rates.
Featured YouTube Videos
Articles & Reviews
Known Issues & Pre-Purchase Inspection
7 reported issues across 5 systems for the VIPER 640, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a VIPER 640? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 7 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your VIPER 640?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
