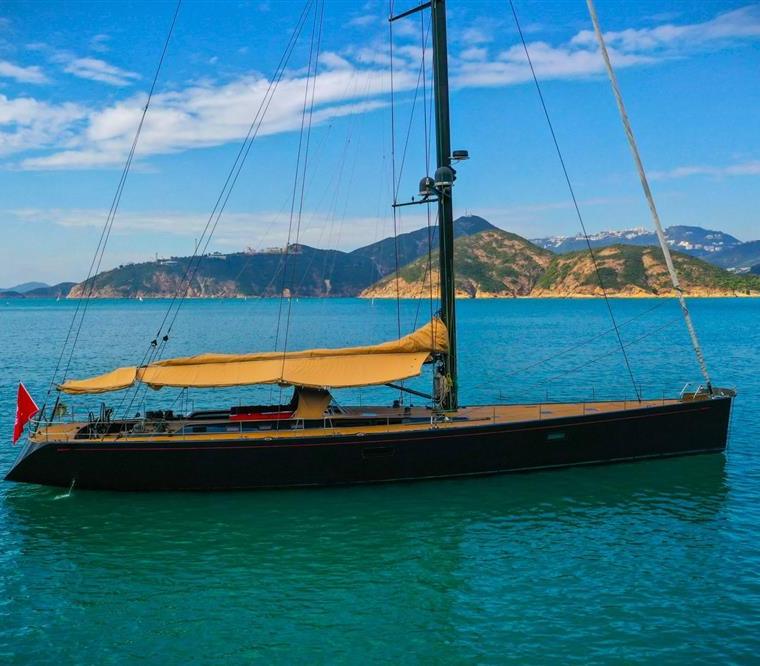

SWAN 90 FD
Specifications
Hull
| LOA | 88.91 ft |
| LWL | 80.54 ft |
| Beam | 21.19 ft |
| Draft | 14.44 ft/ 9.84 ft min |
| Displacement | 130,000 lb |
| Ballast | 40,495 lb |
| Hull speed1.34·√LWL | 12.0 kn |
Rig & Sails
| Iforetriangle height | 120.73 ft |
| Jforetriangle base | 35.3 ft |
| Pmainsail luff | 116.47 ft |
| Emainsail foot | 37.57 ft |
| FLforestay | 35.3 ft |
| Mainsail | 3,981.7 sq ft |
| Jib (100%) | 1,618.8 sq ft |
| Spinnaker | 3,622.5 sq ft |
About the SWAN 90 FD
The Swan 90 FD is a rare, high-performance cruising yacht designed by German Frers and built by Nautor, with only 12 hulls constructed in 2007. This limited production run highlights its status as a bespoke, large-displacement vessel intended for serious offshore passage-making rather than mass-market appeal.
- Best for:
- This boat is best suited for experienced bluewater cruisers who prioritize performance and comfort in heavy weather, as well as those seeking a unique, large-cabin layout that accommodates extended passages with a crew.
- Bluewater capability:
- With a substantial displacement of 130000.0 lb, a low capsize ratio of 1.68, and a robust masthead sloop rig, the Swan 90 FD is inherently stable and well-suited for demanding offshore conditions.
- Comparables:
- Comparable vessels include the Swan 90 (non-FD) and other large Frers-designed Nautor Swans from the same era, such as the Swan 82, due to their shared design philosophy, heavy displacement, and focus on offshore capability.
Performance
Market Price
Estimated Cost of Ownership
Based on 88.91ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SWAN 90 FDyet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SWAN 90 FD? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
