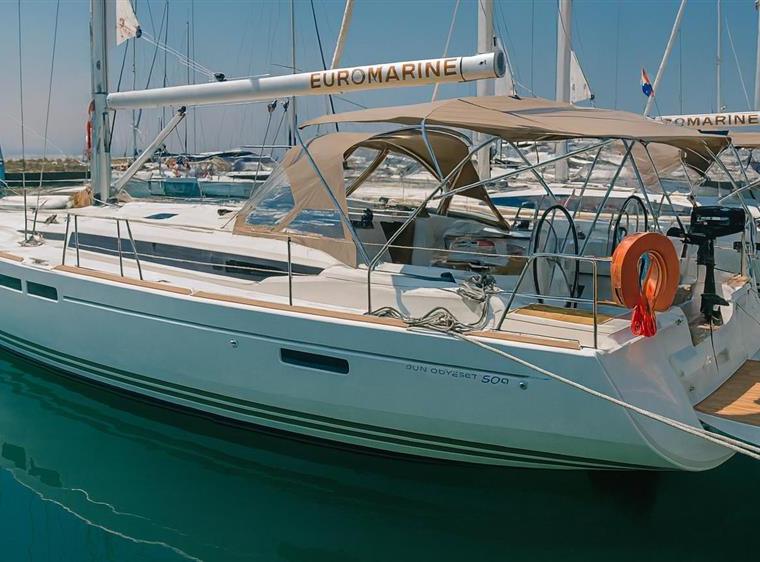

SUN ODYSSEY 509 (JEANNEAU)
Specifications
Hull
| LOA | 50.46 ft |
| LWL | 45.67 ft |
| Beam | 15.39 ft |
| Draft | 7.48 ft |
| Displacement | 30,644 lb |
| Ballast | 9,975.9 lb |
| Material | 49’ 1”14.98 m |
| Hull speed1.34·√LWL | 9.1 kn |
Accommodation
| Cabins | 3 |
| Berths | 6 |
| Heads | 6 |
| Water | 162.5 L |
| Fuel | 63.4 L |
| CE category | N/A€ |
About the SUN ODYSSEY 509 (JEANNEAU)
Shallow draft: 1.73m/5.68' First built in 2011, model year 2012. Replaced by the SO 519 in 2015. Also sold to charter trade as SUNSAIL 51.
Performance
ORC Performance Data(16 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.2 | 6.3 | 7.1 | 7.8 | 8.3 | 8.5 | 8.6 |
| 60° | 5.6 | 6.7 | 7.5 | 8.2 | 8.5 | 8.8 | 8.9 |
| 75° | 5.9 | 7.0 | 7.9 | 8.4 | 8.8 | 9.0 | 9.3 |
| 90° | 5.9 | 7.0 | 7.9 | 8.5 | 8.8 | 9.1 | 9.6 |
| 110° | 5.2 | 6.5 | 7.5 | 8.3 | 8.7 | 9.0 | 9.7 |
| 120° | 4.9 | 6.1 | 7.1 | 7.9 | 8.5 | 8.9 | 9.5 |
| 135° | 4.2 | 5.3 | 6.3 | 7.2 | 8.0 | 8.5 | 9.1 |
| 150° | 3.5 | 4.6 | 5.5 | 6.4 | 7.2 | 7.9 | 8.8 |
| Beat VMG | 3.3 | 4.0 | 4.7 | 5.2 | 5.6 | 5.8 | 5.9 |
| Run VMG | 3.0 | 4.0 | 4.9 | 5.8 | 6.6 | 7.3 | 8.5 |
Estimated Value
Limited DataAsking price by model year
22 listings · boat years 2012–2016 · median $222,680
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 50.46ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SUN ODYSSEY 509 (JEANNEAU)yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SUN ODYSSEY 509 (JEANNEAU)? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
