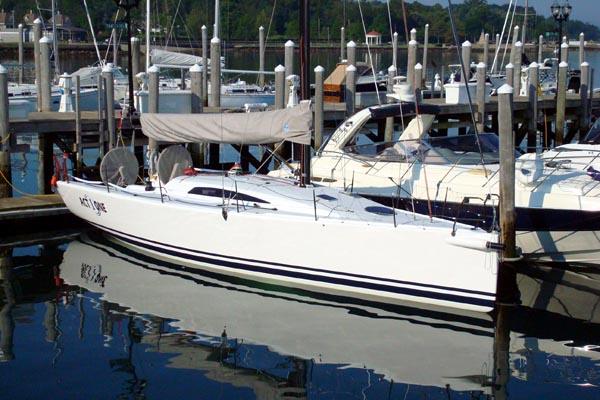

SUMMIT 40
Specifications
Hull
| LOA | 39.73 ft |
| LWL | 34.78 ft |
| Beam | 12.14 ft |
| Draft | 8.23 ft |
| Displacement | 15,653 lb |
| Ballast | 7,275.5 lb |
| Hull speed1.34·√LWL | 7.9 kn |
Rig & Sails
| Iforetriangle height | 53.31 ft |
| Jforetriangle base | 15.42 ft |
| Pmainsail luff | 52.49 ft |
| Emainsail foot | 17.22 ft |
| FLforestay | 15.4 ft |
| Mainsail | 899.1 sq ft |
| Jib (100%) | 411 sq ft |
| Spinnaker | 1,077.8 sq ft |
About the SUMMIT 40
Originally called the KING 40. SPL with pole: 5.38m / 17.64'
Direct variant of the SUMMIT 40
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.5 | 6.0 | 7.1 | 7.5 | 7.8 | 7.9 | 8.0 | 8.0 | 8.1 |
| 60° | 4.8 | 6.3 | 7.3 | 7.7 | 7.9 | 8.1 | 8.2 | 8.3 | 8.3 |
| 75° | 5.0 | 6.5 | 7.4 | 7.8 | 8.1 | 8.3 | 8.5 | 8.7 | 8.8 |
| 90° | 4.8 | 6.4 | 7.4 | 7.9 | 8.2 | 8.5 | 8.7 | 9.1 | 9.4 |
| 110° | 4.8 | 6.5 | 7.6 | 8.2 | 8.6 | 8.8 | 9.1 | 9.6 | 10.0 |
| 120° | 4.7 | 6.3 | 7.5 | 8.1 | 8.6 | 9.1 | 9.5 | 10.1 | 10.8 |
| 135° | 4.1 | 5.7 | 7.0 | 7.8 | 8.3 | 8.8 | 9.3 | 10.8 | 12.8 |
| 150° | 3.4 | 4.8 | 6.1 | 7.1 | 7.8 | 8.2 | 8.7 | 9.8 | 11.7 |
| Beat VMG | 2.9 | 4.0 | 4.8 | 5.3 | 5.5 | 5.7 | 5.8 | 5.8 | 5.8 |
| Run VMG | 2.9 | 4.2 | 5.2 | 6.1 | 6.8 | 7.4 | 7.9 | 8.8 | 10.2 |
Pricing
We don't have market pricing data for the SUMMIT 40 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 39.73ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
1 documented issues across 1 systems, documented on the near-identical sister model KING 40. The SUMMIT 40 shares its hull, rig and keel, so these findings apply.
