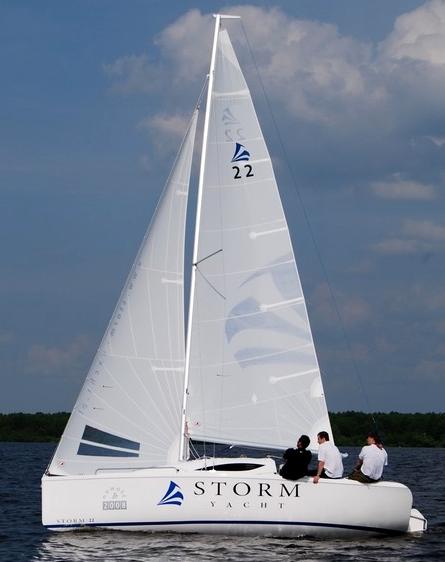

STORM 22
Specifications
Hull
| LOA | 21.59 ft |
| LWL | 20.54 ft |
| Beam | 8.17 ft |
| Draft | 4.79 ft/ 0.85 ft min |
| Displacement | 2,204.62 lb |
| Ballast | 617.3 lb |
| Hull speed1.34·√LWL | 6.1 kn |
Rig & Sails
| Mainsail | 139.93 sq ft |
| Jib (100%) | 91.49 sq ft |
| SA total | 252.95 sq ft |
About the STORM 22
Available in three versions: Standard version with centerboard (specs above) Sail area: -Main: 13 m² / 139.93 ft² -Jib: 8.5 m² / 91.5 ft² Also... Sport version with lifting daggerboard: Draft: 1.51 m / 4.95 ft Ballast: 260 kg / 573.2 lbs Sail area: 23.5 m² / 252.95 ft² -Main: 14.5 m² / 156.1 ft² -Jib: 9.3 m² / 100.1 ft² Salt Water (with daggerboard but sail area similar to the Standard version): Draft: 1.51 m / 4.95 ft Ballast: 310 kg / 683,43 lbs Sail area: 21.5 m² / 231.42 ft² -Main: 13 m² / 139.93 ft² -Jib: 8.5 m² / 91.5 ft²
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.2 | 4.9 | 5.5 | 5.7 | 5.9 | 6.0 | 6.1 |
| 60° | 4.4 | 5.2 | 5.6 | 5.8 | 6.0 | 6.2 | 6.3 |
| 75° | 4.6 | 5.4 | 5.8 | 6.0 | 6.2 | 6.4 | 6.8 |
| 90° | 4.9 | 5.7 | 6.0 | 6.3 | 6.5 | 6.6 | 7.0 |
| 110° | 4.9 | 5.7 | 6.1 | 6.5 | 6.9 | 7.2 | 7.7 |
| 120° | 4.8 | 5.6 | 6.0 | 6.4 | 6.9 | 7.3 | 8.2 |
| 135° | 4.4 | 5.3 | 5.8 | 6.2 | 6.6 | 7.0 | 8.1 |
| 150° | 3.8 | 4.7 | 5.5 | 5.9 | 6.2 | 6.6 | 7.4 |
| Beat VMG | 2.8 | 3.3 | 3.8 | 4.2 | 4.4 | 4.5 | 4.4 |
| Run VMG | 3.3 | 4.1 | 4.8 | 5.4 | 5.8 | 6.1 | 6.8 |
Market Price
Estimated Cost of Ownership
Based on 21.59ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the STORM 22yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a STORM 22? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
