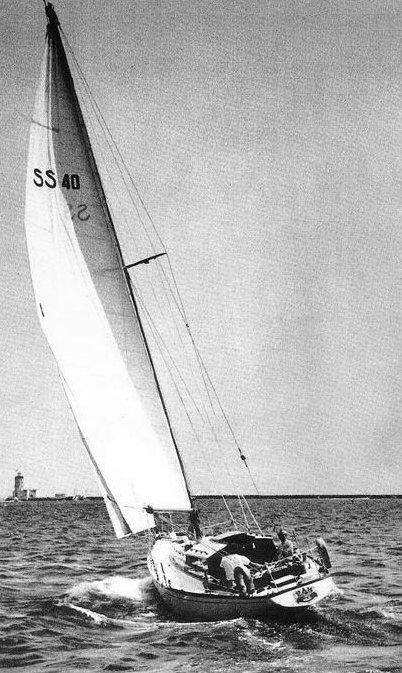

S&S 40 (1964)
Specifications
Hull
| LOA | 39.83 ft |
| LWL | 28.75 ft |
| Beam | 10 ft |
| Draft | 6.51 ft |
| Displacement | 17,200 lb |
| Ballast | 7,000.4 lb |
| Hull speed1.34·√LWL | 7.2 kn |
Rig & Sails
| Iforetriangle height | 47 ft |
| Jforetriangle base | 15.33 ft |
| Pmainsail luff | 38.53 ft |
| Emainsail foot | 15.42 ft |
| FLforestay | 15.3 ft |
| Mainsail | 681.1 sq ft |
| Jib (100%) | 360.3 sq ft |
| Spinnaker | 612.4 sq ft |
About the S&S 40 (1964)
S&S design #1767.(seems identical to #1738) Successful racer under RORC. From several builders. Various options, conventional or reverse transom; coachroof or flush deck with differing layouts and rigs. As many as 10 were built of fiberglass by Teksoglass of Sweden and wood versions by a number of others. At a later date, the molds were used by another builder in Finland to build the AQUARIUS 40 with a modified keel and rudder. Not to be confused with a later S&S 40 (IOR 1 ton - S&S design #2062).
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.8 | 5.7 | 6.4 | 6.7 | 6.9 | 7.0 | 7.0 |
| 60° | 5.1 | 6.0 | 6.7 | 7.0 | 7.1 | 7.2 | 7.3 |
| 75° | 5.3 | 6.3 | 6.8 | 7.1 | 7.3 | 7.5 | 7.6 |
| 90° | 5.3 | 6.3 | 6.9 | 7.2 | 7.4 | 7.6 | 7.9 |
| 110° | 5.1 | 6.3 | 7.0 | 7.3 | 7.6 | 7.7 | 8.0 |
| 120° | 5.0 | 6.1 | 6.9 | 7.3 | 7.6 | 7.9 | 8.3 |
| 135° | 4.5 | 5.6 | 6.6 | 7.1 | 7.4 | 7.8 | 8.4 |
| 150° | 3.9 | 4.9 | 5.8 | 6.7 | 7.1 | 7.4 | 8.1 |
| Beat VMG | 3.2 | 3.8 | 4.2 | 4.5 | 4.7 | 4.8 | 4.8 |
| Run VMG | 3.4 | 4.2 | 5.0 | 5.8 | 6.4 | 6.9 | 7.5 |
