SMARAGD
Specifications
Hull
| LOA | 33.3 ft |
| LWL | 25.92 ft |
| Beam | 7.32 ft |
| Draft | 5.58 ft |
| Displacement | 7,275.25 lb |
| Ballast | 4,189.1 lb |
| Hull speed1.34·√LWL | 6.8 kn |
Rig & Sails
| Mainsail | 258.33 sq ft |
| Jib (100%) | 172.22 sq ft |
| Spinnaker | 807.29 sq ft |
About the SMARAGD

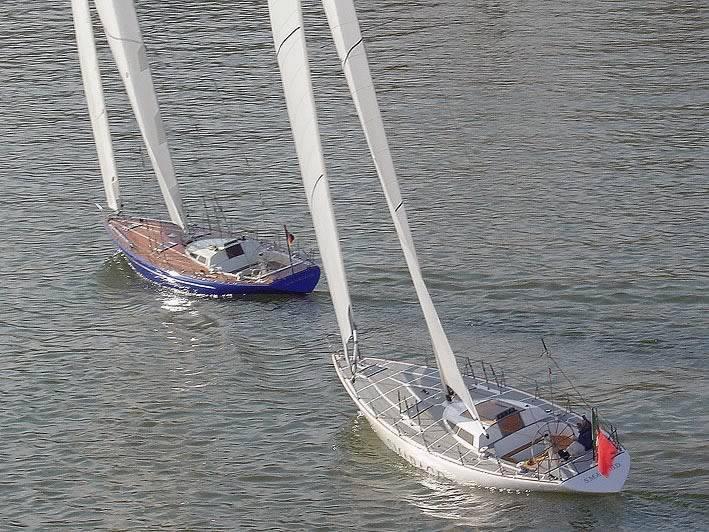

Name english translation: EMERALD Specs and photo are from https://www.sailguide.com/batfakta/smaragd. A great resource for nordic built sailboats. Builders: 1972 - 1975 Comfortbatar 1975 - 1978 Peryl or Svenska Nautic 1978 - 2003 Rivalbatar Sail area: -Main: 24 m² / 258.3 ft² -Jib: 16 m² / 172.2 ft² -Genoa: 25 m² / 269.1 ft² -Spinnaker: 75 m² / 807.3 ft²
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.7 | 4.9 | 5.7 | 6.2 | 6.3 | 6.5 | 6.5 | 6.6 | 6.6 |
| 60° | 3.9 | 5.1 | 5.9 | 6.3 | 6.5 | 6.6 | 6.7 | 6.8 | 6.8 |
| 75° | 4.0 | 5.3 | 6.0 | 6.5 | 6.7 | 6.8 | 6.9 | 7.1 | 7.1 |
| 90° | 4.1 | 5.4 | 6.2 | 6.5 | 6.8 | 7.0 | 7.1 | 7.3 | 7.5 |
| 110° | 4.1 | 5.5 | 6.3 | 6.8 | 7.0 | 7.2 | 7.3 | 7.6 | 7.8 |
| 120° | 3.9 | 5.3 | 6.3 | 6.7 | 7.1 | 7.3 | 7.5 | 7.9 | 8.2 |
| 135° | 3.3 | 4.7 | 5.8 | 6.5 | 6.9 | 7.3 | 7.6 | 8.4 | 9.4 |
| 150° | 2.8 | 4.0 | 5.0 | 5.9 | 6.6 | 7.0 | 7.3 | 8.1 | 9.2 |
| Beat VMG | 2.4 | 3.3 | 3.9 | 4.3 | 4.5 | 4.6 | 4.7 | 4.8 | 4.7 |
| Run VMG | 2.4 | 3.4 | 4.4 | 5.2 | 5.9 | 6.4 | 6.8 | 7.4 | 8.1 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 33.3ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SMARAGDyet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SMARAGD? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
