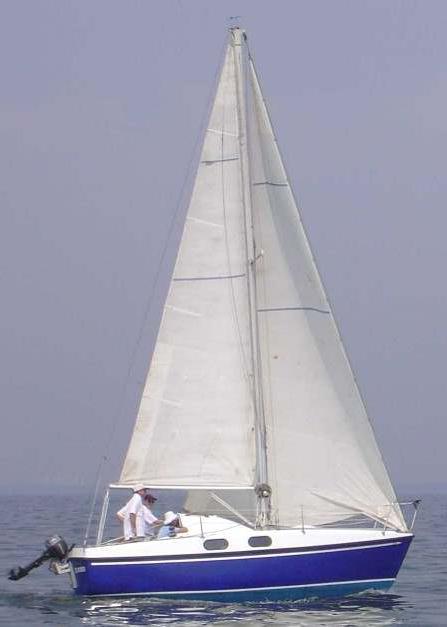

SAGITTA 35
Specifications
Hull
| LOA | 34.5 ft |
| LWL | 25.5 ft |
| Beam | 10 ft |
| Draft | 6 ft |
| Displacement | 10,210 lb |
| Ballast | 5,710.5 lb |
| Hull speed1.34·√LWL | 6.8 kn |
Rig & Sails
| Iforetriangle height | 44 ft |
| Jforetriangle base | 13.71 ft |
| Pmainsail luff | 39.04 ft |
| Emainsail foot | 10.99 ft |
| FLforestay | 13.7 ft |
| Mainsail | 533.3 sq ft |
| Jib (100%) | 301.6 sq ft |
| Spinnaker | 512.8 sq ft |
About the SAGITTA 35
S&S #2008. Similar to S&S 34 and IMPALA 35. Bianca Yachts purchased Sagitta in January 1973 and built the Sagitta 35 until 1976.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|
| 52° | 4.8 | 5.6 | 6.1 | 6.5 | 6.7 | 6.8 | 6.8 | 6.8 |
| 60° | 5.0 | 5.8 | 6.3 | 6.6 | 6.8 | 6.9 | 7.0 | 7.1 |
| 75° | 5.1 | 5.9 | 6.5 | 6.8 | 7.0 | 7.1 | 7.3 | 7.4 |
| 90° | 5.0 | 5.9 | 6.5 | 6.8 | 7.0 | 7.2 | 7.5 | 7.7 |
| 110° | 5.1 | 6.1 | 6.7 | 7.1 | 7.3 | 7.5 | 7.8 | 8.0 |
| 120° | 4.9 | 6.0 | 6.6 | 7.0 | 7.3 | 7.6 | 8.0 | 8.3 |
| 135° | 4.5 | 5.5 | 6.3 | 6.8 | 7.2 | 7.5 | 8.1 | 8.6 |
| 150° | 3.8 | 4.8 | 5.7 | 6.4 | 6.8 | 7.2 | 7.7 | 8.3 |
| Beat VMG | 3.1 | 3.8 | 4.2 | 4.6 | 4.7 | 4.8 | 4.9 | 4.9 |
| Run VMG | 3.3 | 4.2 | 5.0 | 5.6 | 6.2 | 6.6 | 7.3 | 7.8 |
Pricing
We don't have market pricing data for the SAGITTA 35 yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 34.5ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the SAGITTA 35yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a SAGITTA 35? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
