PILOT 35 (HINCKLEY)
Specifications
Hull
| LOA | 35.75 ft |
| LWL | 25 ft |
| Beam | 9.5 ft |
| Draft | 5 ft |
| Displacement | 13,700 lb |
| Ballast | 4,600.5 lb |
| Hull speed1.34·√LWL | 6.7 kn |
Rig & Sails
| Iforetriangle height | 42.5 ft |
| Jforetriangle base | 13.9 ft |
| Pmainsail luff | 37.2 ft |
| Emainsail foot | 15.2 ft |
| PYmizzen luff | 18.1 ft |
| EYmizzen foot | 7.6 ft |

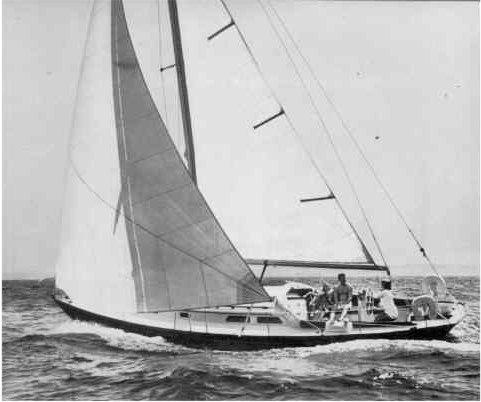

About the PILOT 35 (HINCKLEY)
S&S design #1727. This, the third generation PILOT, was designed specifically for Hinckley to be built of fiberglass. A previous Pilot (S&S design #1219) was first built of wood in 1956. Available as sloop or yawl (12). About a dozen boats to this design were also built, under license, in South America for the Chilean Navy. The 'custom' version is shown in the drawing with a raised 'dog house'. Of these, only 5 were delivered, all of them, sloops. Thanks to PILOT 35 owner Eric Machinist for providing updated information. Yawl Rig: (13 delivered) I: 38.80' / 11.83m J: 12.25' / 3.73m P: 33.83' / 10.31m E: 15.50' / 4.72m PY: 18.10' /5.52m EY: 7.60' /2.31m
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|
| 52° | 4.7 | 5.5 | 5.9 | 6.2 | 6.3 | 6.3 | 6.4 | 6.4 |
| 60° | 4.9 | 5.7 | 6.1 | 6.3 | 6.4 | 6.5 | 6.6 | 6.6 |
| 75° | 5.1 | 5.8 | 6.3 | 6.5 | 6.7 | 6.8 | 6.9 | 7.0 |
| 90° | 5.0 | 5.8 | 6.3 | 6.6 | 6.8 | 6.9 | 7.1 | 7.3 |
| 110° | 4.9 | 5.9 | 6.5 | 6.8 | 7.0 | 7.1 | 7.3 | 7.5 |
| 120° | 4.8 | 5.8 | 6.4 | 6.8 | 7.0 | 7.3 | 7.6 | 7.8 |
| 135° | 4.3 | 5.3 | 6.1 | 6.6 | 6.9 | 7.2 | 7.7 | 8.3 |
| 150° | 3.7 | 4.7 | 5.5 | 6.2 | 6.6 | 6.9 | 7.5 | 8.0 |
| Beat VMG | 3.1 | 3.7 | 4.1 | 4.3 | 4.3 | 4.4 | 4.5 | 4.5 |
| Run VMG | 3.2 | 4.1 | 4.8 | 5.5 | 6.0 | 6.5 | 7.1 | 7.5 |
Pricing
We don't have market pricing data for the PILOT 35 (HINCKLEY) yet. If you own one, help other buyers — what did you pay for it? Reports build a community price estimate over time.
Estimated Cost of Ownership
Based on 35.75ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
1 reported issues across 1 systems for the PILOT 35 (HINCKLEY), compiled from owner reports in sailing forums and owner-association material.
