MOORE 24
Specifications
Hull
| LOA | 23.75 ft |
| LWL | 21.75 ft |
| Beam | 7.17 ft |
| Draft | 4.08 ft |
| Displacement | 2,050 lb |
| Ballast | 1,000 lb |
| Hull speed1.34·√LWL | 6.2 kn |
Rig & Sails
| Iforetriangle height | 26.25 ft |
| Jforetriangle base | 9.75 ft |
| Pmainsail luff | 25 ft |
| Emainsail foot | 9.5 ft |
| FLforestay | 9.8 ft |
| Mainsail | 256.2 sq ft |
| Jib (100%) | 128 sq ft |
| Spinnaker | 217.5 sq ft |
About the MOORE 24
Displacement (without sails, safety gear, personal gear, outboard motor) and ballast listed are minimum weight per class rules. Nearly all boats were built between 1974-1982 (156?). Moore Sailboats still offers new boats for sail. These new boats are flush deck with open transoms and are class legal.
Designed by George Olson and Ron Moore and built by Moore Brothers (USA) from 1974, the Moore 24 is a compact fractional sloop with 158 hulls produced. Its lightweight displacement of 2050.0 lb and high sail area-to-displacement ratio of 24.55 define it as a nimble, performance-oriented coastal cruiser rather than a heavy displacement offshore vessel.
- Best for:
- This boat suits coastal cruisers and weekend racers who prioritize agility and ease of handling over heavy-weather stability. It is well-suited for single-handers or couples seeking a manageable package for protected waters, given its modest beam of 7.17 ft and light displacement.
- Bluewater capability:
- With a capsize ratio of 2.26 and a comfort ratio of 10.27, the Moore 24 is not recommended for extended bluewater passages due to its light displacement and fin keel design. Its primary strength lies in coastal cruising where its agility is an asset rather than a liability.
- Comparables:
- Comparable boats include the O'Day 23 and Catalina 22, which share similar fractional sloop rigs and coastal cruising roles. These vessels offer similar footprints and performance characteristics, making them direct competitors in the sub-25-foot market.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.7 | 4.9 | 5.7 | 6.0 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 |
| 60° | 4.0 | 5.2 | 5.8 | 6.2 | 6.3 | 6.4 | 6.5 | 6.6 | 6.5 |
| 75° | 4.1 | 5.3 | 5.9 | 6.3 | 6.6 | 6.8 | 6.9 | 7.1 | 7.2 |
| 90° | 4.0 | 5.2 | 5.9 | 6.3 | 6.7 | 7.0 | 7.3 | 7.7 | 7.9 |
| 110° | 3.7 | 5.0 | 5.9 | 6.5 | 6.9 | 7.3 | 7.6 | 8.2 | 8.7 |
| 120° | 3.5 | 4.8 | 5.8 | 6.4 | 6.9 | 7.4 | 8.0 | 9.0 | 10.3 |
| 135° | 3.1 | 4.3 | 5.3 | 6.1 | 6.6 | 7.1 | 7.7 | 9.9 | 12.7 |
| 150° | 2.5 | 3.6 | 4.7 | 5.5 | 6.2 | 6.6 | 7.1 | 8.4 | 11.7 |
| Beat VMG | 2.4 | 3.2 | 3.9 | 4.3 | 4.4 | 4.5 | 4.5 | 4.5 | 4.3 |
| Run VMG | 2.2 | 3.1 | 4.0 | 4.8 | 5.5 | 6.0 | 6.4 | 7.3 | 10.1 |

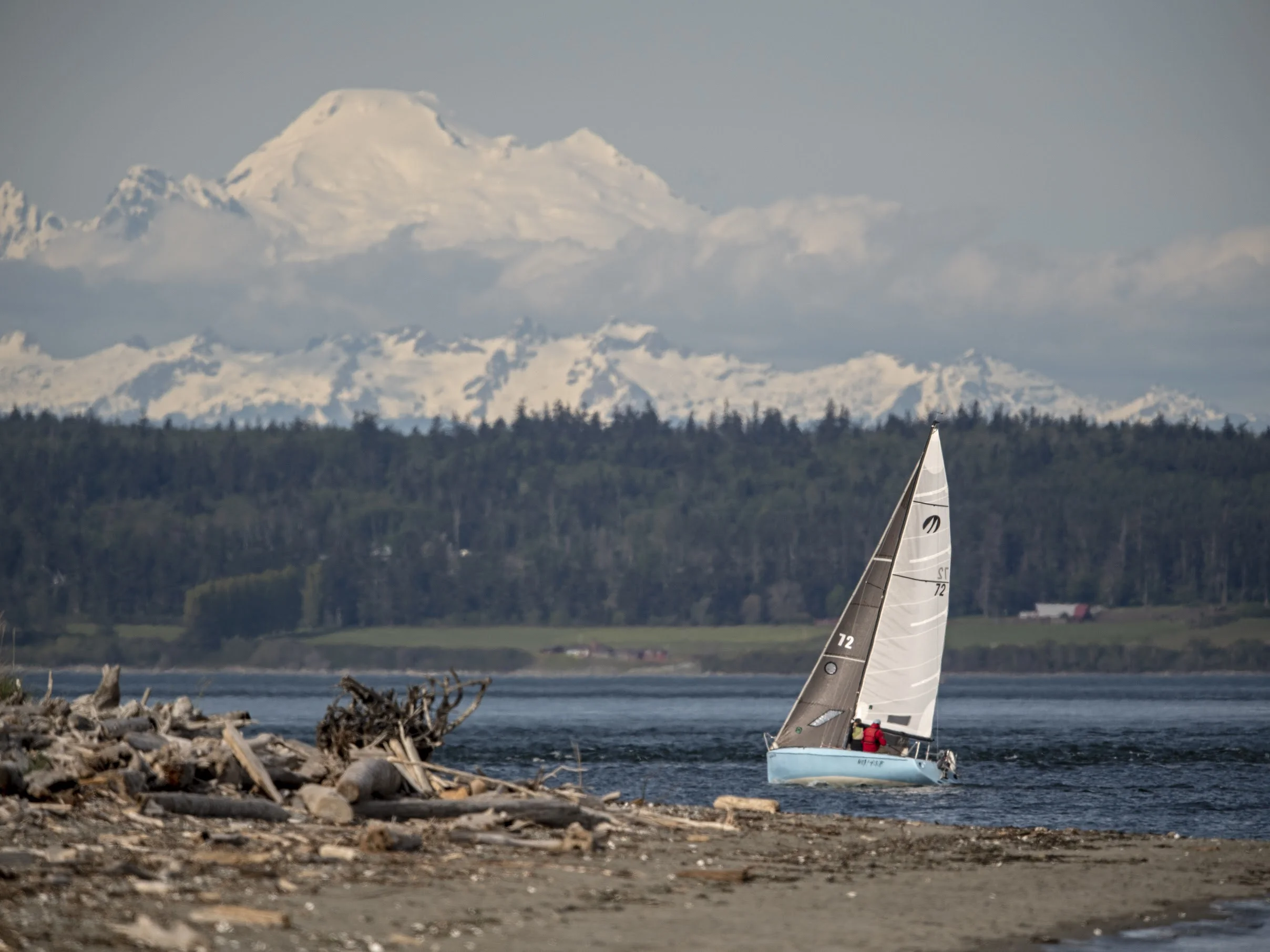

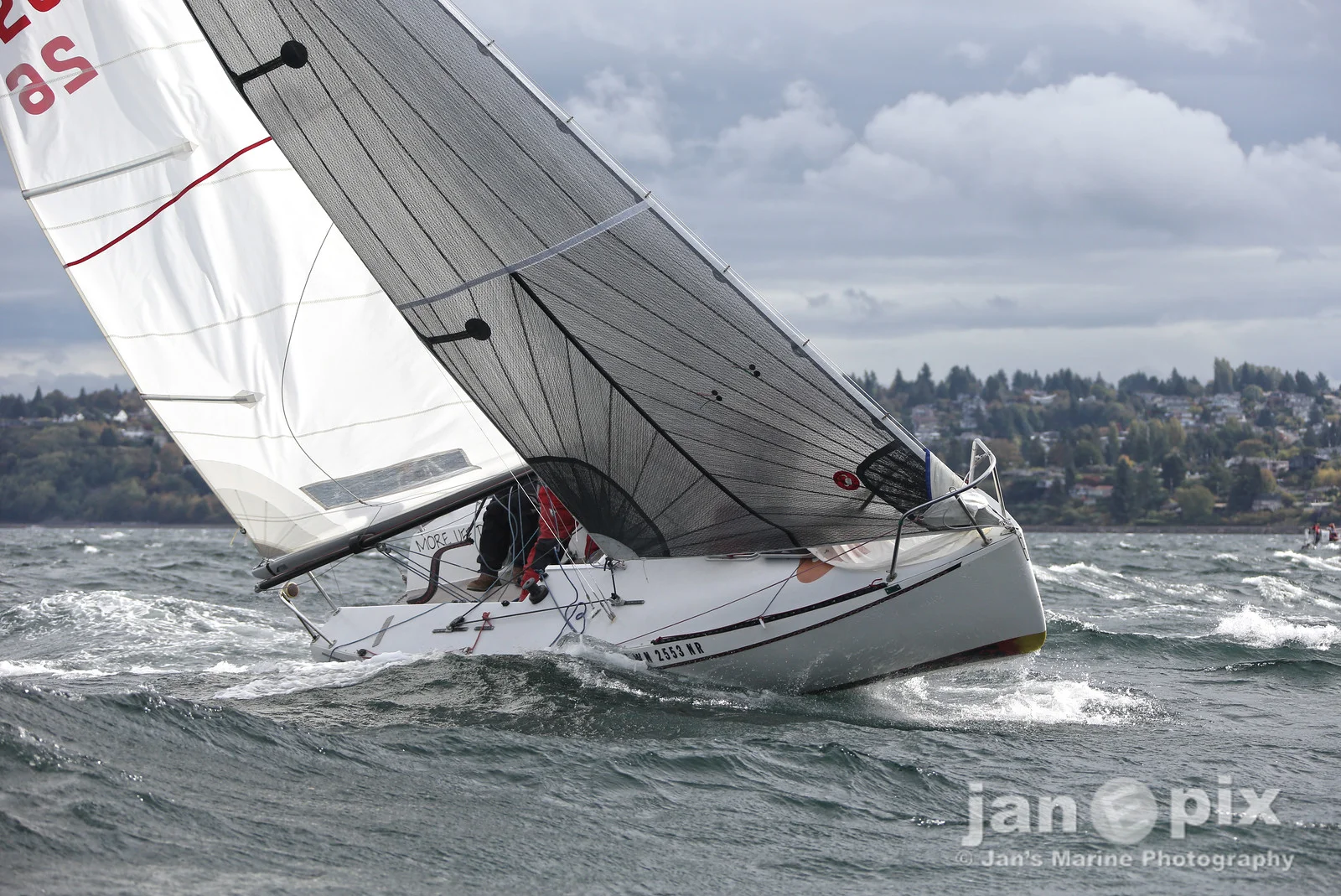

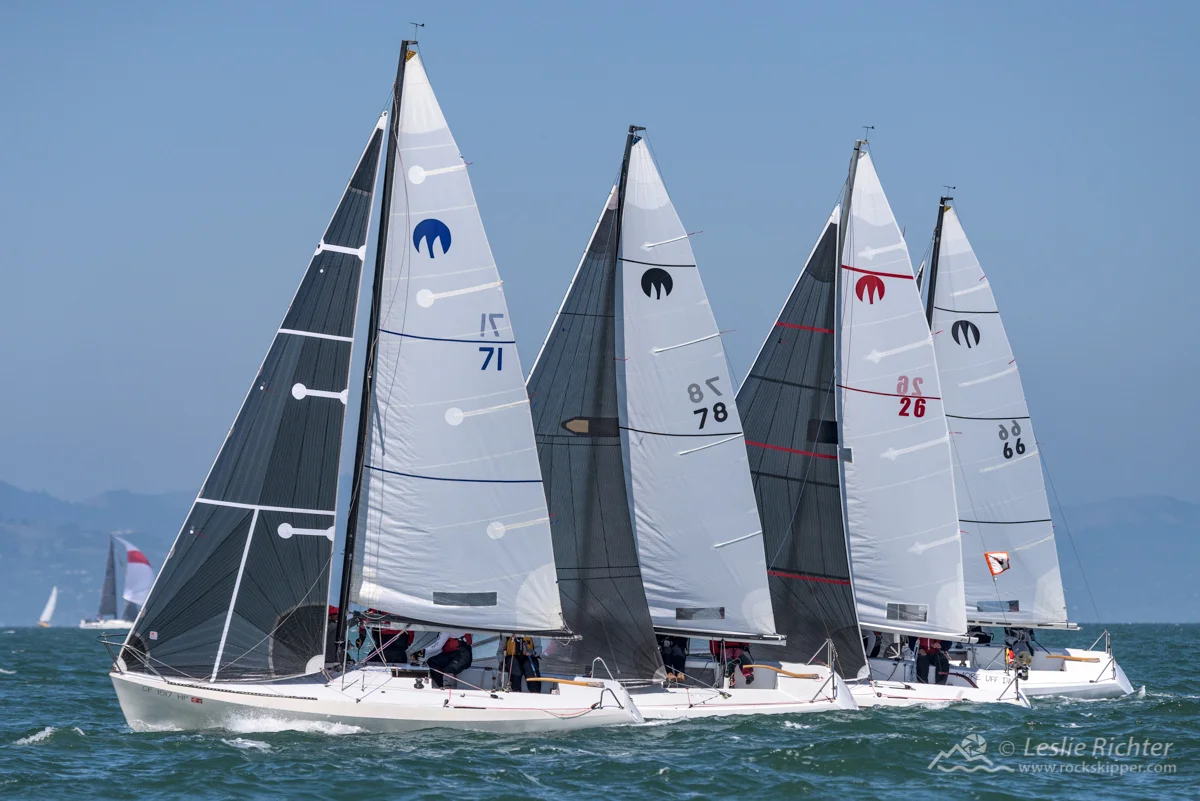

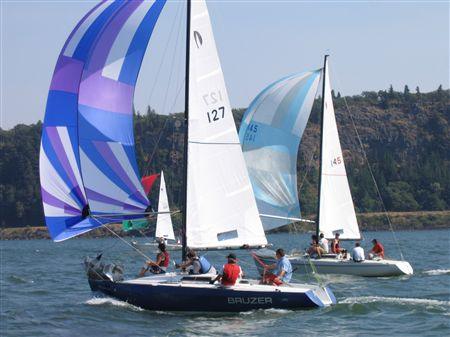

Images
