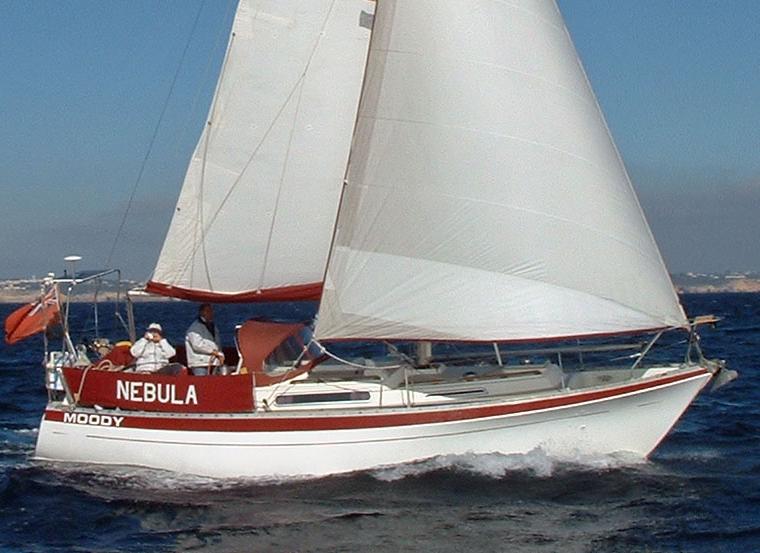

MOODY 34
Specifications
Hull
| LOA | 33.42 ft |
| LWL | 27.75 ft |
| Beam | 11.67 ft |
| Draft | 5 ft |
| Displacement | 11,200 lb |
| Ballast | 4,500.2 lb |
| Hull speed1.34·√LWL | 7.1 kn |
Rig & Sails
| Iforetriangle height | 41.5 ft |
| Jforetriangle base | 13.67 ft |
| Pmainsail luff | 36 ft |
| Emainsail foot | 13 ft |
| FLforestay | 13.7 ft |
| Mainsail | 536.4 sq ft |
| Jib (100%) | 283.7 sq ft |
| Spinnaker | 482.2 sq ft |
About the MOODY 34
Bilge Keel version - draft: 3.75'
Designed by Bill Dixon and built by Marine Projects Ltd. between 1983 and 1986, the Moody 34 is a robust coastal cruiser with a total production run of 165 hulls. This data-driven synthesis highlights its reputation for solid construction while flagging specific structural and mechanical wear points common to this vintage.
- Best for:
- This boat suits coastal cruisers and those seeking a comfortable, stable passage-maker, evidenced by the high frequency of upgrades for comfort and self-sufficiency such as bimini installations (31), dodgers (24), and watermakers (13).
- Bluewater capability:
- With a displacement of 11200.0 lb and a capsize ratio of 2.09, the Moody 34 offers strong offshore stability, though owners frequently address rudder and shaft issues (55 mentions) to ensure reliability for extended passages.
- Comparables:
- Comparable to other Bill Dixon designs and heavy-displacement cruisers from the early-to-mid 1980s, such as the Moody 31 or Hallberg-Rassy 35, due to similar displacement (11200.0 lb) and comfort ratio (22.28) characteristics.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.1 | 4.2 | 5.1 | 5.7 | 6.1 | 6.4 | 6.6 | 6.7 | 6.7 |
| 60° | 3.3 | 4.5 | 5.4 | 6.0 | 6.4 | 6.6 | 6.8 | 6.9 | 6.9 |
| 75° | 3.5 | 4.7 | 5.6 | 6.2 | 6.6 | 6.8 | 7.0 | 7.2 | 7.3 |
| 90° | 3.4 | 4.7 | 5.7 | 6.5 | 6.8 | 7.1 | 7.3 | 7.5 | 7.6 |
| 110° | 3.5 | 4.8 | 5.8 | 6.5 | 7.0 | 7.2 | 7.5 | 8.0 | 8.3 |
| 120° | 3.4 | 4.7 | 5.7 | 6.4 | 6.9 | 7.2 | 7.5 | 8.0 | 8.6 |
| 135° | 3.0 | 4.2 | 5.2 | 6.0 | 6.6 | 7.0 | 7.3 | 7.8 | 8.4 |
| 150° | 2.5 | 3.6 | 4.6 | 5.4 | 6.1 | 6.6 | 7.0 | 7.5 | 8.0 |
| Beat VMG | 1.9 | 2.7 | 3.3 | 3.7 | 4.1 | 4.3 | 4.5 | 4.6 | 4.5 |
| Run VMG | 2.1 | 3.1 | 4.0 | 4.7 | 5.4 | 6.0 | 6.5 | 7.1 | 7.6 |
Estimated Value
Low ConfidenceAsking price by model year
9 listings · boat years 1984–1986 · median $34,950
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 33.42ft LOA. Actual costs vary by condition, usage, and local rates.
Featured YouTube Videos
Known Issues & Pre-Purchase Inspection
17 reported issues across 8 systems for the MOODY 34, compiled from owner reports in sailing forums and owner-association material.
