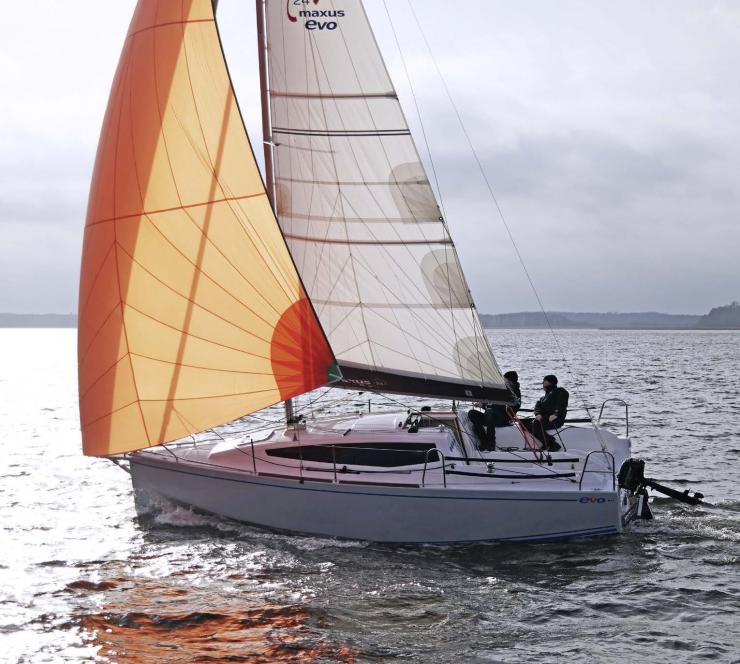

MAXUS 24 EVO (CB)
Specifications
Hull
| LOA | 26.35 ft |
| LWL | 22.97 ft |
| Beam | 8.37 ft |
| Draft | 4.43 ft/ 1.05 ft min |
| Displacement | 4,630 lb |
| Ballast | 1,101.9 lb |
| Hull speed1.34·√LWL | 6.4 kn |
About the MAXUS 24 EVO (CB)
Replaced the Maxus 24
Designed by Jacek Daszkiewicz and built by Northman Shipyard (PL) starting in 2019, the Maxus 24 EVO (CB) is a modern fractional sloop with a variable keel. The specific total hulls built is unknown (?), but the design emphasizes a lightweight displacement of 4630.0 lb and a high sail area-to-displacement ratio of 18.65 for performance.
- Best for:
- This boat suits coastal cruisers and performance-oriented sailors who prioritize speed and agility over heavy offshore comfort, given its low comfort ratio of 17.6 and light displacement.
- Bluewater capability:
- With a capsize ratio of 2.01 and a relatively low displacement of 4630.0 lb, the boat is better suited for coastal and sheltered waters rather than heavy bluewater passages.
- Comparables:
- Comparable to other modern European performance cruisers like the Beneteau First 25 or J/24, as they share similar fractional sloop rigs and focus on planing capabilities with lightweight hulls.
Direct variant of the MAXUS 24 EVO (CB)
Near-identical models — same hull, builder and designer, re-badged or lightly changed. Specs and owner-reported issues are typically shared across the group, so a sister model's page may carry detail this one doesn't.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 2.9 | 4.0 | 4.8 | 5.4 | 5.8 | 6.0 | 6.2 | 6.2 | 6.1 |
| 60° | 3.2 | 4.3 | 5.1 | 5.7 | 6.0 | 6.2 | 6.4 | 6.5 | 6.4 |
| 75° | 3.3 | 4.5 | 5.3 | 5.9 | 6.2 | 6.4 | 6.6 | 6.9 | 7.0 |
| 90° | 3.5 | 4.8 | 5.7 | 6.3 | 6.6 | 6.8 | 6.9 | 7.2 | 7.5 |
| 110° | 3.8 | 5.0 | 5.9 | 6.4 | 6.8 | 7.2 | 7.5 | 8.0 | 8.3 |
| 120° | 3.6 | 4.9 | 5.8 | 6.3 | 6.7 | 7.1 | 7.5 | 8.3 | 9.1 |
| 135° | 3.2 | 4.4 | 5.4 | 6.1 | 6.5 | 6.8 | 7.2 | 8.0 | 9.2 |
| 150° | 2.7 | 3.8 | 4.7 | 5.5 | 6.1 | 6.4 | 6.7 | 7.3 | 8.0 |
| Beat VMG | 1.9 | 2.6 | 3.2 | 3.6 | 3.9 | 4.2 | 4.3 | 4.2 | 4.0 |
| Run VMG | 2.3 | 3.3 | 4.1 | 4.8 | 5.3 | 5.7 | 6.0 | 6.5 | 7.1 |
Market Price
Estimated Cost of Ownership
Based on 26.35ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the MAXUS 24 EVO (CB)yet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a MAXUS 24 EVO (CB)? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
