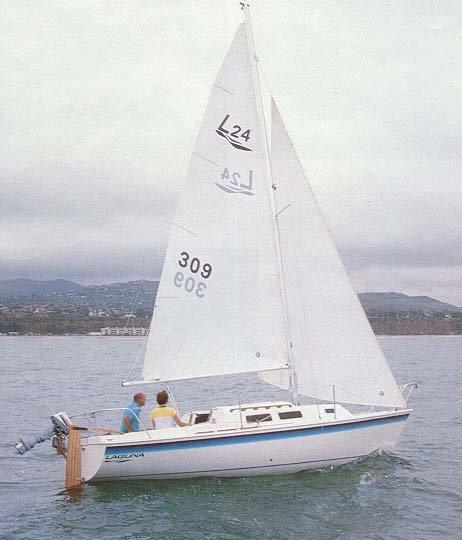

LAGUNA 24S
Specifications
Hull
| LOA | 23.58 ft |
| LWL | 20 ft |
| Beam | 8.33 ft |
| Draft | 2.92 ft |
| Displacement | 2,600 lb |
| Ballast | 900.1 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 24 ft |
| Jforetriangle base | 8.75 ft |
| Pmainsail luff | 23 ft |
| Emainsail foot | 10 ft |
| FLforestay | 8.8 ft |
| Mainsail | 115 sq ft |
| Jib (100%) | 105 sq ft |
| Spinnaker | 360 sq ft |
About the LAGUNA 24S
LAGUNA 24S and the BALBOA 24 have shared origins. Sail area: -Main: 115 ft² / 10.68 m² -Jib: 105 ft² / 9.75 m² -Genoa (150%): 158 ft² / 14.68 m² -Spinnaker: 360 ft² / 33.44 m² Max outboard power: 10 hp
The Laguna 24S is a compact fractional sloop designed by W. Shad Turner and built by Laguna Yachts (USA) between 1980 and 1987, with a total production of 350 hulls. It features a lightweight displacement of 2600.0 lb and a beam of 8.33 ft, resulting in a high Sail Area/Displacement ratio of 18.66 that prioritizes speed and agility over heavy-weather stability.
- Best for:
- This boat is best suited for coastal day-sailing and light cruising, appealing to single-handers or couples who prioritize easy handling and quick acceleration in moderate winds. Its shallow draft of 2.92 ft and low displacement make it ideal for shallow-water anchorages and trailerable transport.
- Bluewater capability:
- With a low Displacement/Length ratio of 145.09 and a Capsize ratio of 2.43, the Laguna 24S is not recommended for extended bluewater passages due to its light displacement and limited ballast of 900.1 lb. Its design favors coastal performance, and owners should exercise extreme caution in heavy weather or open ocean conditions.
- Comparables:
- Comparable boats include the Catalina 22 and the O'Day 23, as they share similar beam dimensions and fractional sloop rigs from the same era. These vessels are comparable because they all target the entry-level market with a focus on ease of use and moderate performance rather than heavy offshore capability.
Performance
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 23.58ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
We don't have enough data on the LAGUNA 24Syet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a LAGUNA 24S? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
