IMPRESSION 434 (ELAN)
Specifications
Hull
| LOA | 44 ft |
| LWL | 37.57 ft |
| Beam | 13.71 ft |
| Draft | 6.23 ft |
| Displacement | 24,030 lb |
| Ballast | 7,230.6 lb |
| Hull speed1.34·√LWL | 8.2 kn |
About the IMPRESSION 434 (ELAN)
Shallow draft keel: 1.6m / 5.25ft. Hull length: 13m / 42.65ft LWL from a review in Cruising World by Alvah Simon, September 2005 (not confirmed).

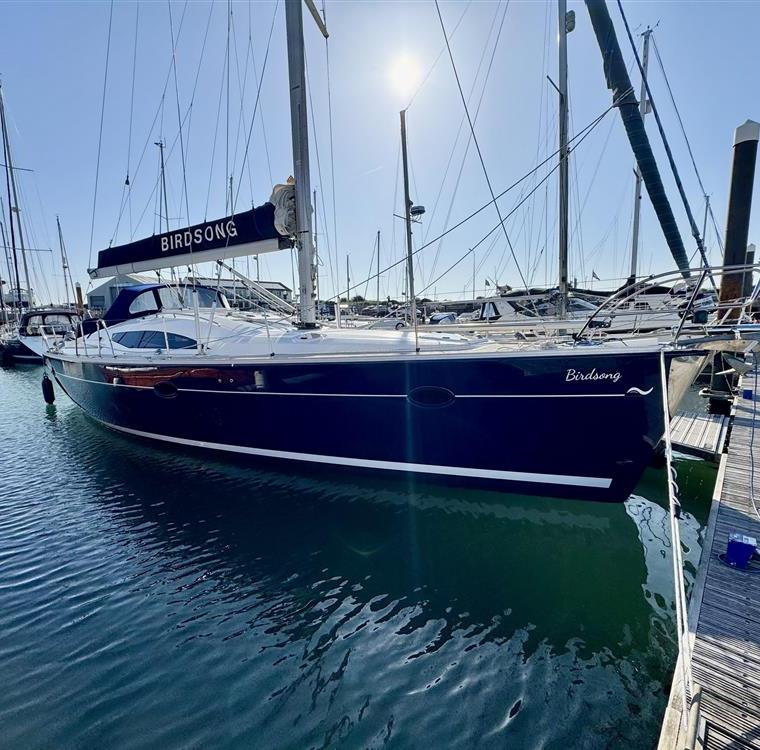

The Elan Impression 434 is a fractional sloop designed by Rob Humphreys and built by Elan Marine (SLO) between 2005 and 2008. With a displacement of 24030.0 lb and a beam of 13.71 ft, this model represents a performance-oriented cruising platform from the mid-2000s.
- Best for:
- This boat suits coastal cruisers and performance-oriented sailors who prioritize sailing dynamics over heavy bluewater comfort, given its moderate displacement and fractional rig.
- Bluewater capability:
- With a capsize ratio of 1.9 and a comfort ratio of 28.77, the boat is capable of offshore passages but is better suited for protected waters due to its relatively light displacement and fin keel configuration.
- Comparables:
- Comparable boats include the Beneteau First 43.7 and the Jeanneau Sun Odyssey 43.2, as they share similar production eras, fractional rigs, and a focus on balanced performance cruising.
Performance
ORC Performance Data(4 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.2 | 4.5 | 5.5 | 6.3 | 6.9 | 7.2 | 7.4 | 7.5 | 7.4 |
| 60° | 3.5 | 4.8 | 5.9 | 6.7 | 7.2 | 7.5 | 7.7 | 7.8 | 7.8 |
| 75° | 3.8 | 5.1 | 6.2 | 7.0 | 7.5 | 7.8 | 8.0 | 8.3 | 8.4 |
| 90° | 3.8 | 5.2 | 6.4 | 7.3 | 7.8 | 8.1 | 8.3 | 8.6 | 8.8 |
| 110° | 3.8 | 5.3 | 6.6 | 7.5 | 8.0 | 8.4 | 8.7 | 9.2 | 9.5 |
| 120° | 3.7 | 5.2 | 6.4 | 7.3 | 7.9 | 8.3 | 8.7 | 9.3 | 10.0 |
| 135° | 3.2 | 4.6 | 5.8 | 6.8 | 7.5 | 8.0 | 8.4 | 9.1 | 9.9 |
| 150° | 2.6 | 3.9 | 5.0 | 6.0 | 6.8 | 7.4 | 7.9 | 8.5 | 9.2 |
| Beat VMG | 2.0 | 2.8 | 3.6 | 4.1 | 4.5 | 4.8 | 4.9 | 5.0 | 4.8 |
| Run VMG | 2.3 | 3.3 | 4.3 | 5.2 | 5.9 | 6.5 | 6.9 | 7.7 | 8.3 |
Estimated Value
Limited DataAsking price by model year
19 listings · boat years 2005–2016 · median $158,750
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 44ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
9 reported issues across 7 systems for the IMPRESSION 434 (ELAN), compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a IMPRESSION 434 (ELAN)? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 9 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
Similar Sailboats
Which engine powers your IMPRESSION 434 (ELAN)?
We haven't confirmed the engine for this model yet. If you own or know one, tell us — as owners report in, we build an accurate picture over time.
Already know your engine? Search all engines → to find its exact parts.
