HANSE 505
Specifications
Hull
| LOA | 50.2 ft |
| LWL | 44.13 ft |
| Beam | 15.58 ft |
| Draft | 7.81 ft |
| Displacement | 31,747 lb |
| Ballast | 8,818.5 lb |
| Material | 48’ 8”14.85 m |
| Hull speed1.34·√LWL | 8.9 kn |
Rig & Sails
| Iforetriangle height | 64.16 ft |
| Jforetriangle base | 19.16 ft |
| Pmainsail luff | 60.25 ft |
| Emainsail foot | 20.16 ft |
| FLforestay | 19.2 ft |
| Mainsail | 1,270.6 sq ft |
| Jib (100%) | 614.7 sq ft |
| Spinnaker | 1,044.9 sq ft |
Accommodation
| Cabins | 3 |
| Berths | 6 |
| Heads | 2 |
| Water | 171.7 L |
| Fuel | 74 L |
| CE category | About264 000€(2017) |

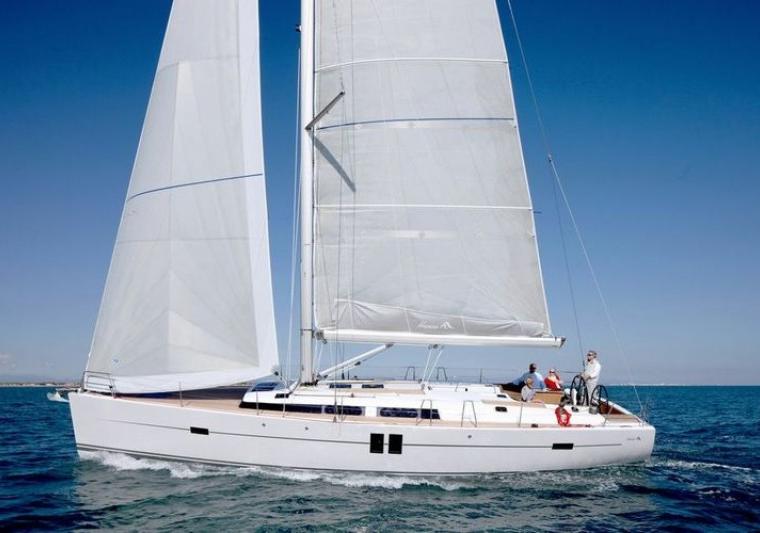

About the HANSE 505
Hull length: 14.85 m / 48.75' Shallow draft: 6.6'/1.98m Displacement with shallow keel: 14900kg / 32,849lbs.
The Hanse 505 is a fractional sloop designed by Judel/Vrolijk and built by Hanse Yachts, with production records indicating a single build year of 2012. This model represents a specific iteration in the Hanse lineup, characterized by a displacement of 31747.0 lb and a beam of 15.58 ft, offering a blend of performance and interior volume typical of the era's performance cruisers.
- Best for:
- This boat suits coastal cruisers and performance-oriented sailors who prioritize sailing dynamics and modern interior layouts over heavy bluewater ruggedness. It is well-suited for couples or small families seeking a responsive, easy-to-handle yacht for weekend getaways and regional cruising.
- Bluewater capability:
- With a D/L ratio of 164.91 and a capsize ratio of 1.97, the Hanse 505 is designed for performance rather than heavy offshore endurance, making it suitable for protected coastal passages but requiring careful consideration for extended bluewater voyages due to its lighter displacement and fin keel configuration.
- Comparables:
- Comparable boats include the Beneteau First 47.7 and the Nauticat 47, which share similar fractional rig configurations and performance-focused hull forms from the early 2010s. These models appeal to the same demographic seeking a balance between racing pedigree and cruising comfort, though the Hanse typically offers more modern interior ergonomics.
Performance
ORC Performance Data(4 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 4.1 | 5.6 | 6.8 | 7.6 | 8.2 | 8.4 | 8.6 | 8.7 | 8.7 |
| 60° | 4.5 | 6.0 | 7.2 | 7.9 | 8.4 | 8.7 | 8.8 | 9.0 | 9.0 |
| 75° | 4.7 | 6.3 | 7.4 | 8.2 | 8.6 | 8.9 | 9.2 | 9.4 | 9.6 |
| 90° | 4.6 | 6.3 | 7.5 | 8.4 | 8.9 | 9.2 | 9.4 | 9.8 | 10.1 |
| 110° | 4.5 | 6.3 | 7.6 | 8.5 | 9.1 | 9.5 | 9.9 | 10.4 | 11.1 |
| 120° | 4.4 | 6.1 | 7.5 | 8.4 | 9.0 | 9.4 | 9.9 | 10.8 | 11.5 |
| 135° | 3.9 | 5.5 | 6.8 | 7.9 | 8.6 | 9.1 | 9.6 | 10.5 | 11.8 |
| 150° | 3.2 | 4.6 | 5.8 | 6.9 | 7.8 | 8.5 | 8.9 | 9.7 | 10.5 |
| Beat VMG | 2.6 | 3.6 | 4.5 | 5.1 | 5.6 | 5.8 | 6.0 | 6.0 | 6.0 |
| Run VMG | 2.8 | 4.0 | 5.0 | 6.0 | 6.8 | 7.4 | 7.8 | 8.6 | 9.3 |
Estimated Value
Low ConfidenceAsking price by model year
28 listings · boat years 2014–2018 · median $229,500
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 50.2ft LOA. Actual costs vary by condition, usage, and local rates.
