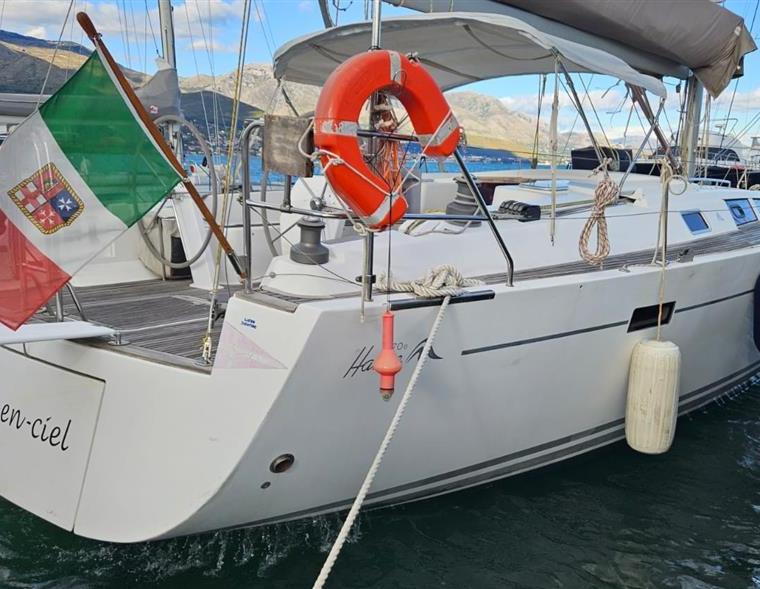

HANSE 470
Specifications
Hull
| LOA | 46.95 ft |
| LWL | 41.34 ft |
| Beam | 14.63 ft |
| Draft | 7.71 ft |
| Deep keel | 2.60 ft |
| Shoal keel | 1.95 ft |
| Displacement | 26,896 lb |
| Ballast | 7,826.7 lb |
| Hull speed1.34·√LWL | 8.6 kn |
Rig & Sails
| Iforetriangle height | 65.62 ft |
| Jforetriangle base | 17.45 ft |
| Pmainsail luff | 65.62 ft |
| Emainsail foot | 18.7 ft |
| FLforestay | 17.5 ft |
| Mainsail | 1,235.2 sq ft |
| Jib (100%) | 572.5 sq ft |
| Spinnaker | 973.3 sq ft |
About the HANSE 470
Standard layout shown here but a number of interior arrangements available.
The Hanse 470 is a fractional sloop designed by Judel/Vrolijk and built by Hanse Yachts, with production records indicating a build year of 2005. This vessel measures 46.95 ft LOA with a displacement of 26896.0 lb, offering a balance of performance and comfort typical of the mid-2000s German cruising market.
- Best for:
- This boat suits coastal cruisers and short-to-medium offshore passages who prioritize interior volume and modern sailing dynamics over heavy bluewater displacement. It is well-suited for couples or small families seeking a comfortable liveaboard with manageable single-handed potential due to its fractional rig.
- Bluewater capability:
- With a displacement of 26896.0 lb and a capsize ratio of 1.96, the Hanse 470 is capable of offshore passages, though its relatively light displacement and fin keel suggest it is better suited for protected waters and shorter open-ocean hops rather than extreme heavy-weather voyaging.
- Comparables:
- Comparable vessels include the Beneteau Oceanis 46.1 and Bavaria 46, which share similar fractional rig configurations and interior layouts from the same era. These boats offer similar beam and displacement characteristics, targeting the same market of performance-oriented coastal cruisers.
Performance
ORC Performance Data(9 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|
| 52° | 5.6 | 6.8 | 7.5 | 8.0 | 8.3 | 8.4 | 8.5 | 8.5 |
| 60° | 6.0 | 7.1 | 7.8 | 8.2 | 8.5 | 8.6 | 8.7 | 8.8 |
| 75° | 6.2 | 7.3 | 8.0 | 8.4 | 8.7 | 8.9 | 9.1 | 9.3 |
| 90° | 6.2 | 7.5 | 8.2 | 8.5 | 8.7 | 8.9 | 9.4 | 9.7 |
| 110° | 6.3 | 7.6 | 8.3 | 8.8 | 9.2 | 9.4 | 9.8 | 10.1 |
| 120° | 6.1 | 7.4 | 8.2 | 8.7 | 9.1 | 9.5 | 10.2 | 10.7 |
| 135° | 5.5 | 6.8 | 7.8 | 8.4 | 8.8 | 9.3 | 10.1 | 11.2 |
| 150° | 4.6 | 5.8 | 6.9 | 7.7 | 8.2 | 8.6 | 9.2 | 9.8 |
| Beat VMG | 3.7 | 4.5 | 5.2 | 5.6 | 5.8 | 6.0 | 6.1 | 6.1 |
| Run VMG | 4.0 | 5.0 | 5.9 | 6.6 | 7.1 | 7.5 | 8.4 | 9.1 |
Estimated Value
Low ConfidenceAsking price by model year
30 listings · boat years 2006–2011 · median $199,800
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 46.95ft LOA. Actual costs vary by condition, usage, and local rates.
