H-BOAT
Specifications
Hull
| LOA | 27.25 ft |
| LWL | 20.67 ft |
| Beam | 7.17 ft |
| Draft | 4.33 ft |
| Displacement | 3,190 lb |
| Ballast | 1,594 lb |
| Hull speed1.34·√LWL | 6.1 kn |
Rig & Sails
| Iforetriangle height | 24.5 ft |
| Jforetriangle base | 7.92 ft |
| Pmainsail luff | 28.54 ft |
| Emainsail foot | 9.84 ft |
| FLforestay | 7.9 ft |
| Mainsail | 248.7 sq ft |
| Jib (100%) | 97 sq ft |
| Spinnaker | 164.9 sq ft |

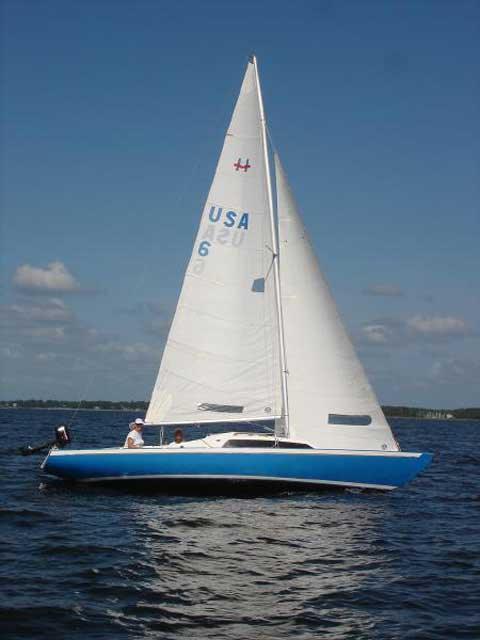

About the H-BOAT
The H-BOAT has had IYRU-international one-design status since 1987; It is the largest IYRU-keelboat class in Europe, and the second largest in the world.
Designed by Hans Groop and built by Artekno/Botnia Marin, the H-Boat is a compact 27.25 ft fractional sloop with a production run of 6000 hulls starting in 1967. Its lightweight displacement of 3190.0 lb and high SA/D ratio of 19.54 indicate a design prioritizing speed and agility over heavy displacement comfort.
- Best for:
- This boat suits coastal cruisers and club racers who value easy handling and performance in light to moderate winds. Its fractional rig and relatively low displacement make it accessible for single-handers or couples seeking a manageable, responsive package.
- Bluewater capability:
- With a capsize ratio of 1.95 and a comfort ratio of 15.78, the H-Boat is better suited for coastal cruising than extended bluewater passages due to its light displacement and narrow beam.
- Comparables:
- Comparable boats include other 1960s European fractional sloops like the Contessa 26 or early Oyster models, though the H-Boat is notably lighter and faster. It shares its role with other Hans Groop designs that emphasize efficient hull forms and user-friendly sailing characteristics.
Performance
ORC Performance Data(20 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|
| 52° | 4.2 | 5.1 | 5.5 | 5.8 | 5.9 | 6.0 | 6.0 | 6.0 |
| 60° | 4.5 | 5.3 | 5.7 | 6.0 | 6.1 | 6.2 | 6.3 | 6.3 |
| 75° | 4.6 | 5.4 | 5.8 | 6.1 | 6.3 | 6.4 | 6.6 | 6.7 |
| 90° | 4.7 | 5.6 | 6.0 | 6.3 | 6.4 | 6.6 | 6.9 | 7.1 |
| 110° | 4.8 | 5.6 | 6.1 | 6.5 | 6.8 | 7.0 | 7.4 | 7.8 |
| 120° | 4.6 | 5.5 | 6.0 | 6.4 | 6.8 | 7.1 | 7.9 | 8.8 |
| 135° | 4.1 | 5.0 | 5.8 | 6.2 | 6.5 | 6.9 | 7.8 | 10.0 |
| 150° | 3.5 | 4.4 | 5.2 | 5.8 | 6.2 | 6.5 | 7.2 | 8.4 |
| Beat VMG | 2.8 | 3.4 | 3.8 | 4.1 | 4.2 | 4.3 | 4.3 | 4.2 |
| Run VMG | 3.0 | 3.8 | 4.5 | 5.2 | 5.7 | 6.1 | 6.7 | 7.4 |
Images
Market Price
Estimated Cost of Ownership
Based on 27.25ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
We don't have enough data on the H-BOATyet to publish model-specific findings we'd stand behind — but here's a free general inspection checklist, built from our research into what actually goes wrong on boats of this kind.
Drawn from 7,029 documented issues across 2,391 models, ordered so the areas that most often turn up problems come first.
Own a H-BOAT? Reports from owners are what turn this into a model-specific checklist — and they're the reason the boats above it have one.
