GALION 22
Specifications
Hull
| LOA | 22 ft |
| LWL | 18 ft |
| Beam | 7.25 ft |
| Draft | 3.25 ft |
| Displacement | 3,500 lb |
| Ballast | 1,700 lb |
| Hull speed1.34·√LWL | 5.7 kn |
Rig & Sails
| Iforetriangle height | 22.25 ft |
| Jforetriangle base | 8.67 ft |
| Pmainsail luff | 22.86 ft |
| Emainsail foot | 9 ft |
| FLforestay | 8.7 ft |
| Mainsail | 121 sq ft |
| Jib (100%) | 99 sq ft |
| Spinnaker | 320 sq ft |
Engine

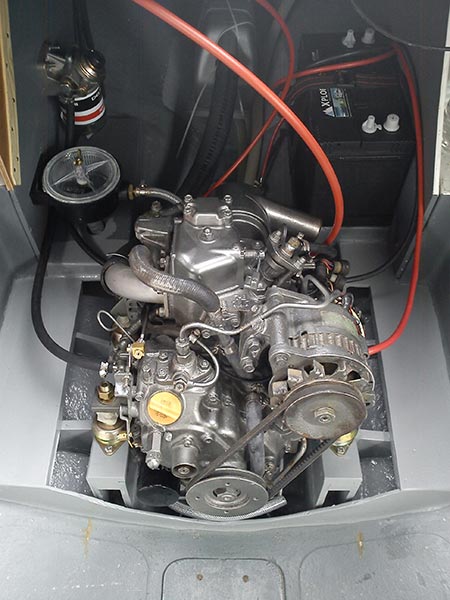

| Commonly | Yanmar |
About the GALION 22
In 1968 a GALION 22 won both the Round the Island Race and the JOG Single-handed Race skippered by her designer, Ian Hannay. Sail area: -Main: 121 ft² / 11.3 m² -Jib: 99 ft² / 9.2 m² -Genoa: 144 ft² / 13.4 m² -Spinnaker: 320 ft² / 30 m²

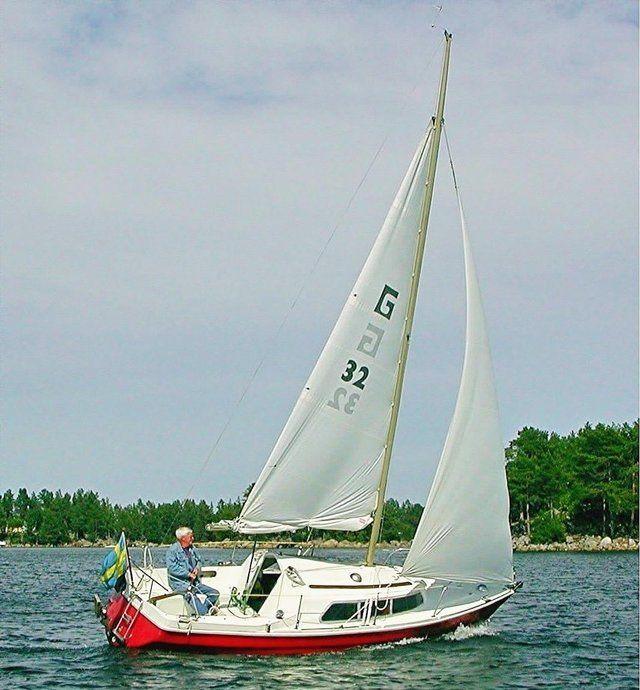

The Galion 22 is a compact coastal cruiser designed by Ian Hannay and built by Hannay Marine Ltd, Robert Ives Boatbuilders Ltd., and Jeremy Rogers in 1965. With a build count of ? hulls, this 22.0 ft LOA vessel represents a specific era of British boatbuilding characterized by its fractional sloop rig and fin keel.
- Best for:
- This boat suits coastal cruisers and weekend sailors seeking a manageable, trailerable package with a 3.25 ft max draft that allows access to shallow waters. Its 3500.0 lb displacement and 20.12 comfort ratio suggest it is best suited for protected waters rather than heavy offshore conditions.
- Bluewater capability:
- With a capsize ratio of 1.91 and a D/L ratio of 267.92, the Galion 22 is not designed for serious bluewater cruising but is capable of short offshore passages in favorable conditions.
- Comparables:
- Comparable boats from this era include other 20-24 ft British fractional sloops like the Wayfarer or Sunfast 22, which share similar displacement and coastal cruising roles. These vessels are comparable due to their similar beam (7.25 ft) and emphasis on ease of handling for small crews.
Performance
Images
Market Price
Estimated Cost of Ownership
Based on 22ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
8 reported issues across 6 systems for the GALION 22, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a GALION 22? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 8 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
