ENDEAVOUR 32
Specifications
Hull
| LOA | 32 ft |
| LWL | 25.25 ft |
| Beam | 9.75 ft |
| Draft | 4.2 ft |
| Displacement | 11,700 lb |
| Ballast | 5,000.6 lb |
| Hull speed1.34·√LWL | 6.7 kn |
Rig & Sails
| Iforetriangle height | 39.5 ft |
| Jforetriangle base | 13 ft |
| Pmainsail luff | 34.5 ft |
| Emainsail foot | 12 ft |
| FLforestay | 13 ft |
| Mainsail | 480.3 sq ft |
| Jib (100%) | 256.8 sq ft |
| Spinnaker | 436.5 sq ft |
Engine
| Yanmar | 2QM2022 hpSee all 40 parts → |

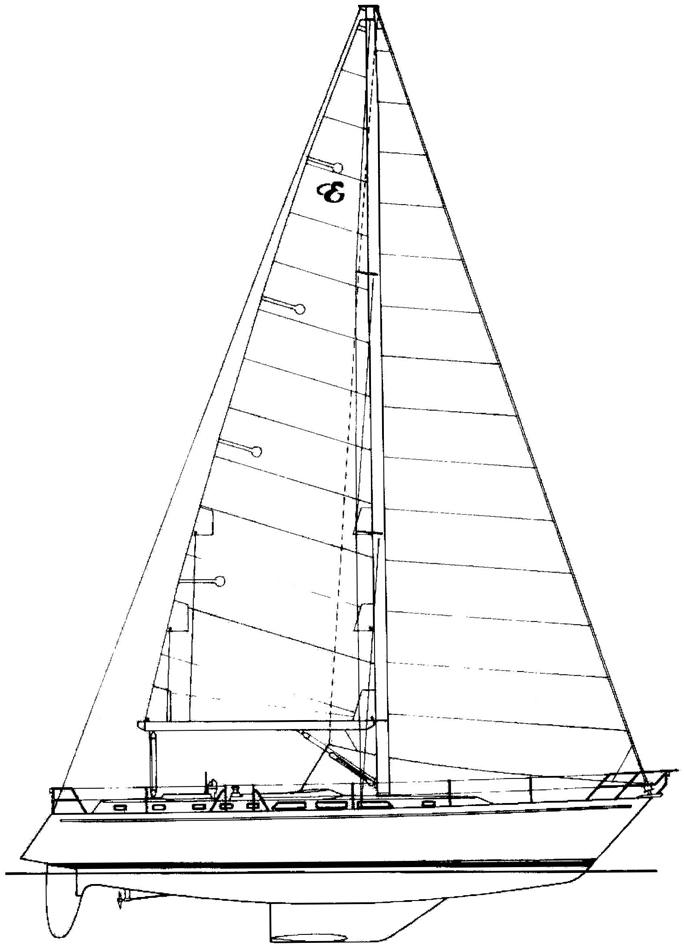

About the ENDEAVOUR 32
The ENDEAVOUR 32 was the first boat from Endeavour and was actually the same basic hull as the earlier IRWIN 32 with modifications by Dennis Robbins, in-house designer for Endeavour at this time. Other changes to the design (by Bob Johnson?) were made in 1980. Earlier ENDEAVOUR 32's could be purchased with a fin keel or keel-centerboard (like the IRWIN). By 1979, both the deep fin keel and keel-centerboard versions had been dropped in favor of a shallower draft, fixed keel model. Shown here is the later version. See ENDEAVOUR 32 CB for more details. Keel/CB version: Draft BD: 7.83' Draft BU: 3.5' Shoal draft fixed keel: 3.16'
The Endeavour 32 is a robust, heavy-displacement cruising sloop designed by Ted Irwin and Dennis Robbins, built by Endeavour Yacht Corp. in the USA between 1976 and 1982. With a production run of 600 hulls, this vessel is recognized for its solid construction and seaworthy performance, though owners frequently report significant maintenance challenges regarding the deck core and keel structure.
- Best for:
- This boat is best suited for serious coastal cruisers and bluewater adventurers who prioritize safety, stability, and interior volume over high-speed performance, particularly those willing to commit to rigorous structural maintenance.
- Bluewater capability:
- With a displacement of 11700.0 lb, a capsize ratio of 1.72, and a fin keel, the Endeavour 32 demonstrates strong offshore suitability, offering excellent stability and motion comfort in heavy weather conditions.
- Comparables:
- Comparable boats include the Cal 32 and the O'Day 32, as they share similar production eras, displacement characteristics, and a focus on comfortable, stable cruising rather than racing performance.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 3.7 | 4.5 | 5.0 | 5.5 | 5.8 | 6.0 | 6.0 |
| 60° | 4.0 | 4.8 | 5.4 | 5.9 | 6.2 | 6.4 | 6.4 |
| 75° | 4.3 | 5.1 | 5.8 | 6.2 | 6.5 | 6.7 | 6.8 |
| 90° | 4.4 | 5.4 | 6.1 | 6.5 | 6.7 | 6.8 | 7.1 |
| 110° | 4.6 | 5.6 | 6.3 | 6.7 | 7.0 | 7.2 | 7.5 |
| 120° | 4.5 | 5.5 | 6.3 | 6.7 | 7.0 | 7.3 | 7.8 |
| 135° | 4.1 | 5.0 | 5.9 | 6.5 | 6.8 | 7.1 | 7.7 |
| 150° | 3.5 | 4.5 | 5.3 | 6.0 | 6.5 | 6.8 | 7.3 |
| Beat VMG | 2.3 | 2.8 | 3.2 | 3.5 | 3.6 | 3.7 | 3.7 |
| Run VMG | 3.0 | 3.9 | 4.6 | 5.3 | 5.9 | 6.4 | 7.0 |
Images
Estimated Value
Medium ConfidenceAsking price by model year
24 listings · boat years 1976–1984 · median $20,000
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 32ft LOA. Actual costs vary by condition, usage, and local rates.
Featured YouTube Videos
Known Issues & Pre-Purchase Inspection
29 reported issues across 9 systems for the ENDEAVOUR 32, compiled from owner reports in sailing forums and owner-association material.
