ELAN 410
Specifications
Hull
| LOA | 40.26 ft |
| LWL | 37.01 ft |
| Beam | 12.83 ft |
| Draft | 7.22 ft |
| Displacement | 18,298 lb |
| Ballast | 5,784.9 lb |
| Material | 40’ 4”12.27 m |
| Hull speed1.34·√LWL | 8.2 kn |
Rig & Sails
| Iforetriangle height | 54.66 ft |
| Jforetriangle base | 15.19 ft |
| Pmainsail luff | 53.02 ft |
| Emainsail foot | 17.81 ft |
| FLforestay | 15.2 ft |
| Mainsail | 925.1 sq ft |
| Jib (100%) | 415.1 sq ft |
| Spinnaker | 705.7 sq ft |
Accommodation
| Cabins | 3 |
| Berths | 6 |
| Heads | 1 |
| Water | 93.8 L |
| Fuel | 38.3 L |
| CE category | N/A€ |

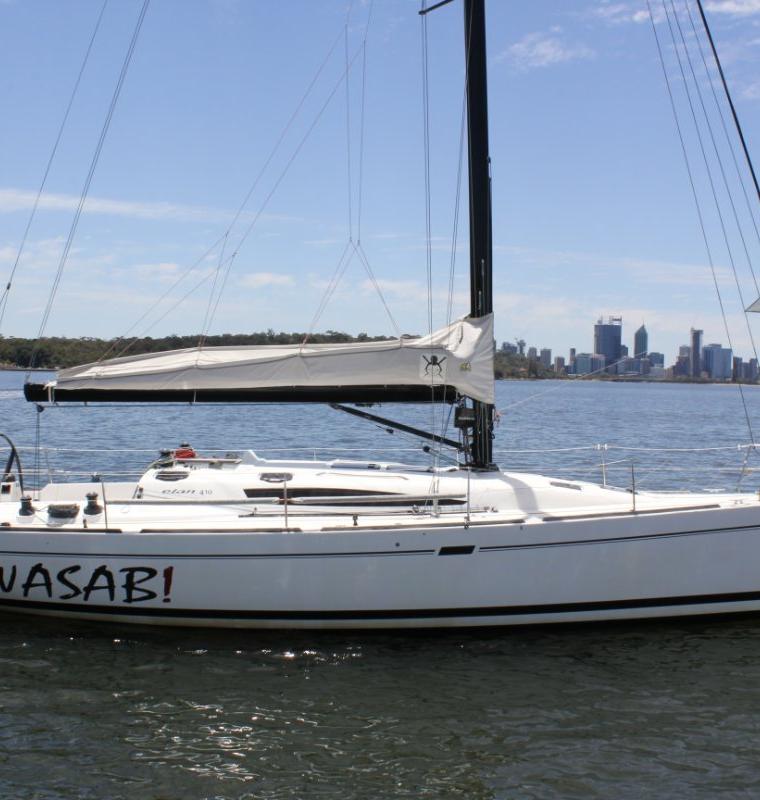

About the ELAN 410
Draft: deep keel 2.45 m/8.04' Ballast: deep keel 2469 kg/5443 lbs. Carbon Rig opt.
Designed by Rob Humphreys and built by Elan Marine (SLO) from 2009–2012, the Elan 410 is a performance-oriented cruiser with a fractional sloop rig. While the exact hull count is unspecified, the model is characterized by a displacement of 18298.0 lb and a beam of 12.83 ft, offering a balance of speed and comfort.
- Best for:
- This boat suits coastal cruisers and active racers who prioritize performance and modern electronics, as evidenced by the high prevalence of Nexus and Raymarine upgrades. It is less ideal for those seeking a low-maintenance, traditional bluewater trawler due to reported structural and mechanical vulnerabilities.
- Bluewater capability:
- With a capsize ratio of 1.95 and a displacement of 18298.0 lb, the Elan 410 has moderate offshore potential, but reported keel smile and rudder issues require rigorous structural verification before serious bluewater passage-making.
- Comparables:
- Comparable boats include the Beneteau First 40.7 and the J/120, which share similar fractional sloop rigs and performance-focused hull forms from the same era. These models also target owners who value sailing dynamics over heavy displacement comfort.
Performance
ORC Performance Data(24 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 5.6 | 6.7 | 7.3 | 7.5 | 7.7 | 7.8 | 7.8 |
| 60° | 5.9 | 6.9 | 7.5 | 7.8 | 7.9 | 8.0 | 8.1 |
| 75° | 6.2 | 7.1 | 7.7 | 8.0 | 8.2 | 8.3 | 8.5 |
| 90° | 6.0 | 7.1 | 7.7 | 8.0 | 8.3 | 8.5 | 8.8 |
| 110° | 6.0 | 7.2 | 7.9 | 8.3 | 8.5 | 8.7 | 9.1 |
| 120° | 5.8 | 7.1 | 7.8 | 8.3 | 8.7 | 9.0 | 9.5 |
| 135° | 5.3 | 6.5 | 7.5 | 8.0 | 8.4 | 8.9 | 9.8 |
| 150° | 4.4 | 5.6 | 6.7 | 7.5 | 8.0 | 8.4 | 9.2 |
| Beat VMG | 3.7 | 4.5 | 5.0 | 5.3 | 5.4 | 5.5 | 5.5 |
| Run VMG | 3.8 | 4.9 | 5.8 | 6.5 | 7.2 | 7.7 | 8.5 |
Estimated Value
Low ConfidenceAsking price by model year
7 listings · boat years 2007–2008 · median $129,950
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 40.26ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
7 reported issues across 5 systems for the ELAN 410, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a ELAN 410? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 7 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
