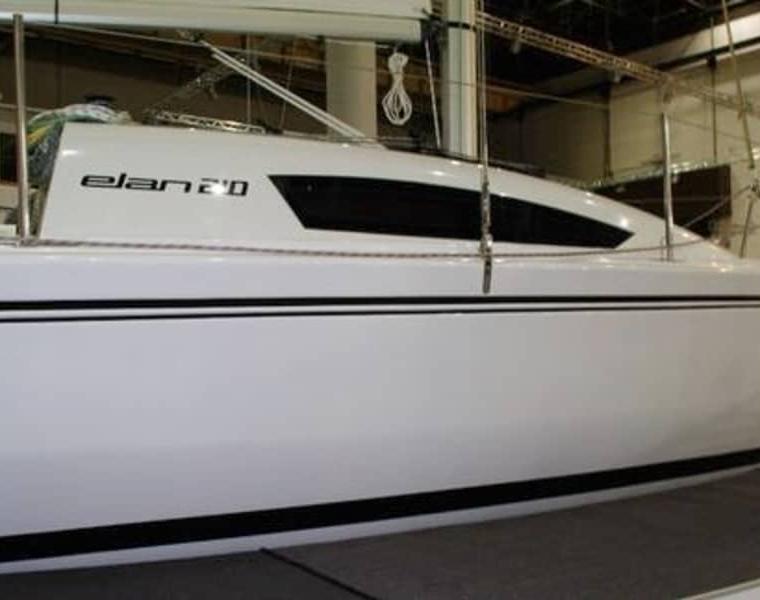

ELAN 210
Specifications
Hull
| LOA | 20.8 ft |
| LWL | 20.11 ft |
| Beam | 8.2 ft |
| Draft | 5.09 ft/ 1.64 ft min |
| Displacement | 2,425 lb |
| Ballast | 793.9 lb |
| Hull speed1.34·√LWL | 6.0 kn |
Rig & Sails
| Iforetriangle height | 28.38 ft |
| Jforetriangle base | 8.33 ft |
| Pmainsail luff | 28.02 ft |
| Emainsail foot | 10.04 ft |
| FLforestay | 8.3 ft |
| Mainsail | 270.1 sq ft |
| Jib (100%) | 118.2 sq ft |
| Spinnaker | 200.9 sq ft |
About the ELAN 210
Twin rudders. Asym. spinnaker on sprit.
The Elan 210 is a compact fractional sloop designed by Rob Humphreys and built by Elan Yachts, with production records indicating a build year of 2011. While the exact total hull count is unspecified in the authoritative data, this model represents a lightweight, performance-oriented entry into the sub-21-foot cruising market.
- Best for:
- This boat is best suited for coastal day-sailors and weekend cruisers who prioritize ease of handling and trailerability over long-range offshore capability. Its light displacement and fractional rig make it an attractive option for single-handers or couples seeking a responsive, low-maintenance package for protected waters.
- Bluewater capability:
- With a displacement of 2425.0 lb and a capsize ratio of 2.44, the Elan 210 is not designed for serious bluewater cruising but is capable of short offshore passages in favorable conditions. Its light weight and variable keel options suggest it is optimized for coastal performance rather than heavy-weather stability.
- Comparables:
- Comparable boats from this era include the Beneteh First 21.7 and the J/24, which share similar fractional sloop rigs and performance-focused hull forms. These models are comparable due to their emphasis on sailing dynamics and compact footprints, though the Elan 210 distinguishes itself with specific interior layout choices and Humphreys' design influence.
Performance
ORC Performance Data(5 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.3 | 4.4 | 5.2 | 5.6 | 5.8 | 5.9 | 5.9 | 6.0 | 5.9 |
| 60° | 3.5 | 4.7 | 5.4 | 5.7 | 6.0 | 6.1 | 6.2 | 6.2 | 6.2 |
| 75° | 3.7 | 4.8 | 5.5 | 5.9 | 6.1 | 6.3 | 6.5 | 6.7 | 6.7 |
| 90° | 3.9 | 5.1 | 5.8 | 6.2 | 6.4 | 6.5 | 6.7 | 7.1 | 7.3 |
| 110° | 4.0 | 5.2 | 5.9 | 6.3 | 6.8 | 7.1 | 7.4 | 7.9 | 8.4 |
| 120° | 3.8 | 5.0 | 5.8 | 6.3 | 6.7 | 7.2 | 7.7 | 8.7 | 9.7 |
| 135° | 3.3 | 4.6 | 5.5 | 6.0 | 6.4 | 6.9 | 7.4 | 9.4 | 12.3 |
| 150° | 2.8 | 3.9 | 4.8 | 5.5 | 6.0 | 6.3 | 6.7 | 7.8 | 11.1 |
| Beat VMG | 2.1 | 2.9 | 3.5 | 3.9 | 4.1 | 4.2 | 4.2 | 4.2 | 4.0 |
| Run VMG | 2.4 | 3.4 | 4.2 | 4.8 | 5.3 | 5.6 | 5.9 | 6.8 | 9.6 |
Market Price
Estimated Cost of Ownership
Based on 20.8ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
10 reported issues across 5 systems for the ELAN 210, compiled from owner reports in sailing forums and owner-association material.
Unlock the full inspection report
Thinking of buying a ELAN 210? This is an in-depth report on the faults this model is known for — so you know exactly what to check when you walk the boat. For the price of a coffee.
- ✓ All 10 specific issues — severity, symptoms & fixes
- ✓ Model-specific pre-purchase inspection checklist
- ✓ Downloadable PDF to take to your surveyor — yours to keep
One-time $2.99 · secure checkout by Stripe · instant access · 30 days online, PDF yours to keep
