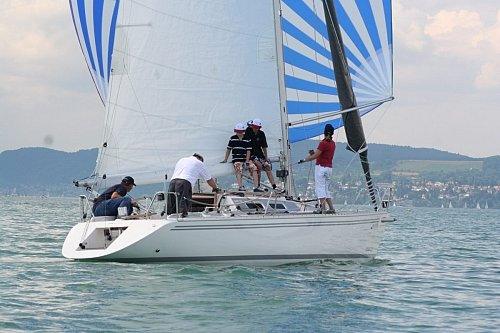

DIAMANT 3000
Specifications
Hull
| LOA | 34.09 ft |
| LWL | 27.23 ft |
| Beam | 8.2 ft |
| Draft | 5.41 ft |
| Displacement | 6,173 lb |
| Ballast | 1,984 lb |
| Hull speed1.34·√LWL | 7.0 kn |
Rig & Sails
| Iforetriangle height | 39.37 ft |
| Jforetriangle base | 11.98 ft |
| Pmainsail luff | 45.93 ft |
| Emainsail foot | 14.6 ft |
| FLforestay | 12 ft |
| Mainsail | 321.84 sq ft |
| Jib (100%) | 319.15 sq ft |
| Spinnaker | 914.93 sq ft |
About the DIAMANT 3000
First called DYNAMIC 3000. Offered with Standard and 'Lake' rig. (Rig dimensions for standard listed here.) Sail Area (Standard): Main: 29.90m2/322 sq.ft. Genoa 29.65m2/319 sq.ft. Jib (self tacking) 16.29m2/175.3 sq.ft. Spinnaker 85.0m2/915 sq.ft. In 2000? a new version was offered called simply DIAMANT, with modernized keel, rudder and rig.
The Diamant 3000 is a compact, performance-oriented cruiser designed by Jan Kjaerulff and built by Ott Yacht GmbH (GER) between 1988 and 1998, with a total production of 50 hulls. Its fractional sloop rig and fin keel configuration reflect a design philosophy focused on agility and efficient sailing within its 34.09 ft LOA footprint.
- Best for:
- This boat suits coastal cruisers and short-handed sailors who prioritize sailing performance and ease of handling over heavy bluewater displacement. Its relatively light displacement of 6173.0 lb and high SA/D ratio of 23.61 make it particularly appealing to those seeking a responsive, easy-to-sail package for bay and coastal waters.
- Bluewater capability:
- With a low D/L ratio of 136.49 and a capsize ratio of 1.79, the Diamant 3000 is better suited for protected coastal cruising than serious offshore passage-making, as its light displacement and narrow beam of 8.2 ft may compromise stability in heavy seas.
- Comparables:
- Comparable boats include the Beneteau First 34 and the O'Day 34, as they share similar fractional sloop rigs, fin keels, and target the same market of performance-minded coastal cruisers from the late 1980s and 1990s. These vessels offer similar dimensions and sailing characteristics, making them direct competitors in the used market.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|
| 52° | 5.8 | 6.5 | 6.8 | 6.9 | 7.0 | 7.0 | 7.1 | 7.0 |
| 60° | 6.0 | 6.7 | 6.9 | 7.1 | 7.2 | 7.2 | 7.3 | 7.3 |
| 75° | 6.2 | 6.8 | 7.2 | 7.4 | 7.5 | 7.6 | 7.8 | 7.9 |
| 90° | 6.1 | 6.8 | 7.2 | 7.6 | 7.8 | 8.0 | 8.3 | 8.5 |
| 110° | 6.1 | 6.9 | 7.4 | 7.7 | 8.0 | 8.3 | 8.8 | 9.4 |
| 120° | 5.9 | 6.9 | 7.4 | 7.9 | 8.3 | 8.7 | 9.4 | 10.2 |
| 135° | 5.4 | 6.5 | 7.1 | 7.7 | 8.3 | 9.0 | 10.8 | 12.5 |
| 150° | 4.6 | 5.7 | 6.5 | 7.1 | 7.5 | 7.9 | 9.6 | 13.0 |
| Beat VMG | 3.9 | 4.5 | 4.8 | 4.9 | 5.0 | 5.1 | 5.1 | 4.9 |
| Run VMG | 4.0 | 4.9 | 5.7 | 6.1 | 6.5 | 7.0 | 8.3 | 11.3 |
Market Price
Estimated Cost of Ownership
Based on 34.09ft LOA. Actual costs vary by condition, usage, and local rates.
Known Issues & Pre-Purchase Inspection
10 reported issues across 5 systems for the DIAMANT 3000, compiled from owner reports in sailing forums and owner-association material.
