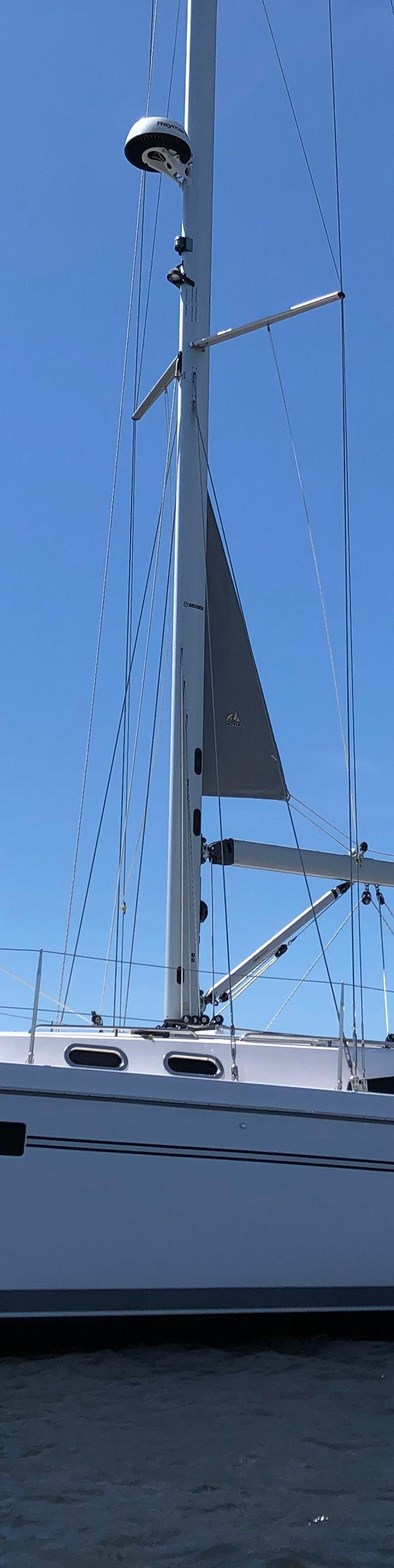

CATALINA 425
Specifications
Hull
| LOA | 43.5 ft |
| LWL | 39.08 ft |
| Beam | 13.67 ft |
| Draft | 6.67 ft |
| Displacement | 18,100 lb |
| Ballast | 7,199.2 lb |
| Material | 43’ 6”13.25 m |
| Hull speed1.34·√LWL | 8.4 kn |
Accommodation
| Cabins | 3 |
| Berths | 6 |
| Heads | 6 |
| Water | 116.2 L |
| Fuel | 62.1 L |
| CE category | About192 000€(2017) |
About the CATALINA 425
Wing keel available: Draft: 5.0' / 1.52m Ballast: 7,700 lbs / 3,493 kg Displacement: 19,100 lbs / 8,664 kg Optional 18 gal. additional fuel tank.
The Catalina 425 is a fractional sloop designed by Gerry Douglas and built by Catalina Yachts, with production records indicating a start year of 2016. This model features a displacement of 18100.0 lb and a beam of 13.67 ft, positioning it as a substantial cruising platform.
- Best for:
- This boat suits coastal cruisers and those seeking a comfortable, stable platform, evidenced by the high frequency of bow thruster additions (24 mentions) for easier docking and the prevalence of canvas upgrades like biminis and dodgers for protected outdoor living.
- Bluewater capability:
- With a displacement of 18100.0 lb, a capsize ratio of 2.09, and a comfort ratio of 21.27, the hull form suggests moderate offshore capability, though the critical frequency of rudder and shaft issues requires careful verification of steering system integrity for extended passages.
- Comparables:
- It compares to other modern fractional sloop cruisers from the mid-2010s, such as the Beneteau Oceanis 42.3 or Hunter 42, sharing similar fractional rig configurations and a focus on interior volume and ease of handling.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.8 | 5.8 | 6.6 | 7.2 | 7.6 | 7.8 | 7.9 |
| 60° | 5.2 | 6.2 | 7.0 | 7.5 | 7.8 | 8.0 | 8.2 |
| 75° | 5.5 | 6.5 | 7.3 | 7.7 | 8.0 | 8.2 | 8.5 |
| 90° | 5.7 | 6.8 | 7.7 | 8.1 | 8.3 | 8.4 | 8.7 |
| 110° | 5.7 | 7.0 | 7.8 | 8.2 | 8.5 | 8.9 | 9.4 |
| 120° | 5.5 | 6.7 | 7.6 | 8.1 | 8.5 | 8.8 | 9.7 |
| 135° | 5.0 | 6.1 | 7.1 | 7.8 | 8.2 | 8.5 | 9.3 |
| 150° | 4.2 | 5.3 | 6.2 | 7.0 | 7.6 | 8.0 | 8.5 |
| Beat VMG | 3.0 | 3.7 | 4.3 | 4.7 | 5.1 | 5.2 | 5.3 |
| Run VMG | 3.6 | 4.6 | 5.4 | 6.1 | 6.6 | 7.0 | 7.9 |
Estimated Value
Low ConfidenceAsking price by model year
10 listings · boat years 2018–2023 · median $373,000
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 43.5ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
3 reported issues across 2 systems for the CATALINA 425, compiled from owner reports in sailing forums and owner-association material.
