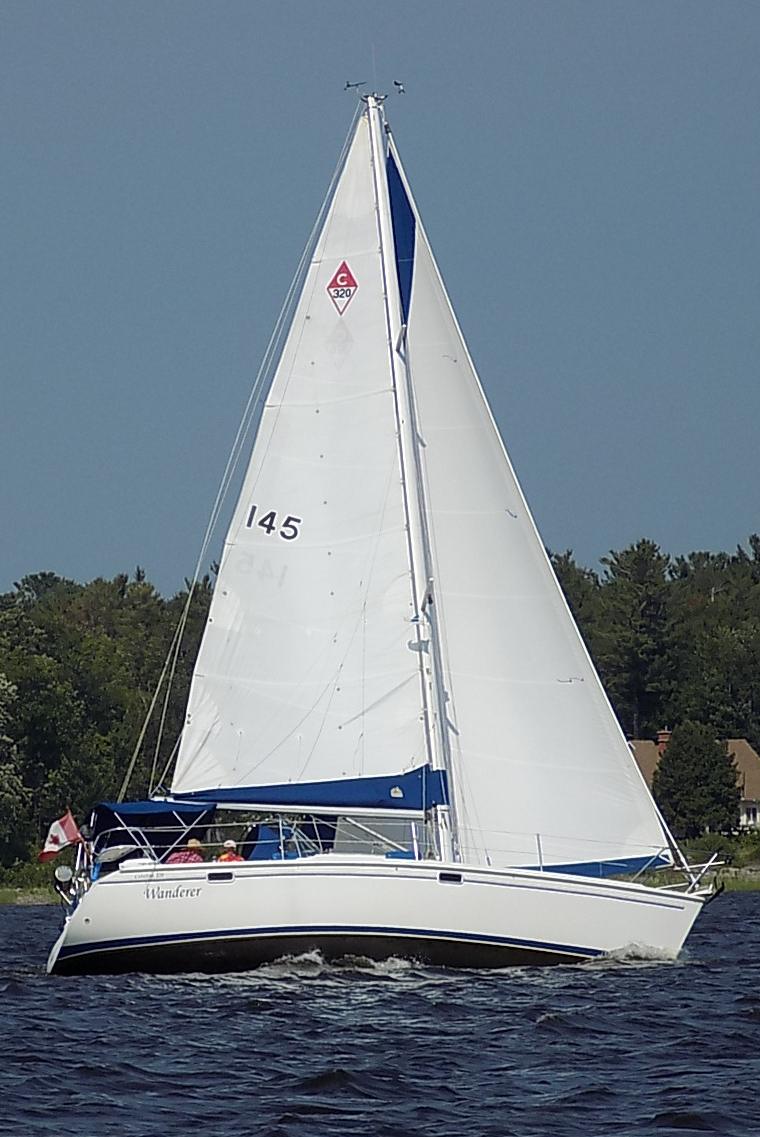

CATALINA 320
Specifications
Hull
| LOA | 32.5 ft |
| LWL | 28 ft |
| Beam | 11.75 ft |
| Draft | 6 ft |
| Displacement | 11,300 lb |
| Ballast | 4,000.2 lb |
| Hull speed1.34·√LWL | 7.1 kn |
Rig & Sails
| Iforetriangle height | 43.58 ft |
| Jforetriangle base | 12.33 ft |
| Pmainsail luff | 38 ft |
| Emainsail foot | 13.25 ft |
| FLforestay | 12.3 ft |
| Mainsail | 540.6 sq ft |
| Jib (100%) | 268.7 sq ft |
| Spinnaker | 456.7 sq ft |
Engine
| Yanmar | 3GM30F27 hpSee all 31 parts → |
| Yanmar | 3GM3027 hpSee all 51 parts → |
| Yanmar | 3YM3029 hpSee all 44 parts → |
About the CATALINA 320
Early models were marketed without a bow pulpit. LOA reported above equals hull length (LOD): 32.5 ft / 9.91 m Winged keel - draft: 1.3 m / 4.25 ft; ballast: 1,993 kg / 4,400 lbs; displacement: 5,300 kg / 11,700 lbs An updated MARK II version was introduced in October 2006 (model year 2007).
The Catalina 320 is a masthead sloop designed by Gerry Douglas and built by Catalina Yachts (USA) in 1993. With a displacement of 11300.0 lb and a beam of 11.75 ft, this model represents a specific production year rather than a long-running series, offering a balance of performance and comfort for its era.
- Best for:
- This boat is well-suited for coastal cruisers and weekend sailors who prioritize a spacious interior and easy handling, as evidenced by the high prevalence of bimini and dodger installations for comfort. It is less ideal for those seeking a long-term bluewater vessel without significant structural due diligence.
- Bluewater capability:
- With a capsize ratio of 2.1 and a D/L ratio of 229.8, the boat is moderately stable but not inherently designed for heavy offshore conditions. Its bluewater capability is significantly compromised by critical structural issues, particularly keel sump cracking and deck core moisture, which must be addressed before any extended offshore passage.
- Comparables:
- Comparable boats from the same era include the Beneteau First 323 and the O'Day 322, which share similar beam widths and displacement ranges. These vessels offer similar coastal cruising capabilities but differ in hull construction and rigging configurations.
Performance
ORC Performance Data(2 certificates)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| 52° | 4.3 | 5.2 | 5.8 | 6.3 | 6.5 | 6.7 | 6.7 |
| 60° | 4.6 | 5.5 | 6.1 | 6.5 | 6.7 | 6.9 | 7.0 |
| 75° | 4.8 | 5.7 | 6.3 | 6.7 | 6.9 | 7.1 | 7.3 |
| 90° | 4.8 | 5.8 | 6.5 | 6.9 | 7.1 | 7.2 | 7.5 |
| 110° | 4.9 | 5.9 | 6.6 | 7.0 | 7.3 | 7.6 | 8.0 |
| 120° | 4.7 | 5.8 | 6.5 | 7.0 | 7.3 | 7.6 | 8.1 |
| 135° | 4.2 | 5.3 | 6.1 | 6.7 | 7.1 | 7.4 | 8.0 |
| 150° | 3.6 | 4.6 | 5.4 | 6.0 | 6.5 | 6.8 | 7.3 |
| Beat VMG | 2.8 | 3.5 | 3.9 | 4.3 | 4.5 | 4.6 | 4.7 |
| Run VMG | 3.1 | 4.0 | 4.7 | 5.2 | 5.6 | 6.1 | 6.9 |
Images
.jpg)
.jpg)
.jpg)
Estimated Value
High ConfidenceAsking price by model year
106 listings · boat years 1993–2006 · median $54,900
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 32.5ft LOA. Actual costs vary by condition, usage, and local rates.
