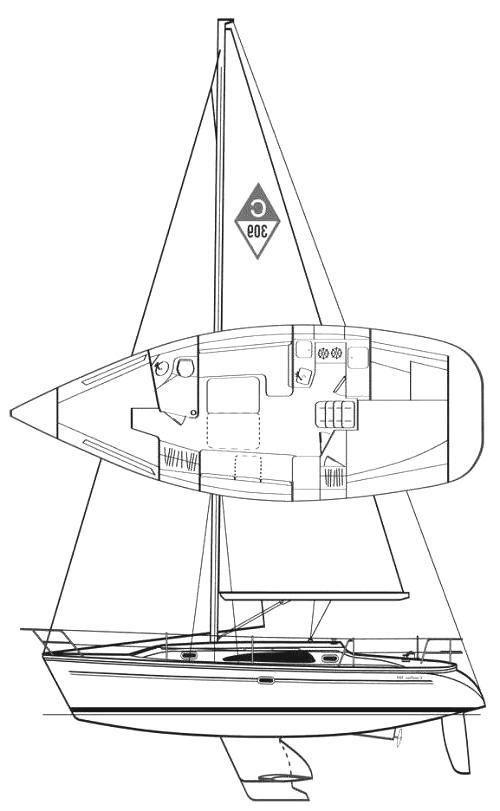

CATALINA 309
Specifications
Hull
| LOA | 32.75 ft |
| LWL | 26.5 ft |
| Beam | 11.5 ft |
| Draft | 6.25 ft |
| Displacement | 9,800 lb |
| Ballast | 4,199.8 lb |
| Material | 31’9.45 m |
| Hull speed1.34·√LWL | 6.9 kn |
Rig & Sails
| Iforetriangle height | 42.75 ft |
| Jforetriangle base | 12 ft |
| Pmainsail luff | 38.75 ft |
| Emainsail foot | 13.75 ft |
| FLforestay | 12 ft |
| Mainsail | 544.2 sq ft |
| Jib (100%) | 256.5 sq ft |
| Spinnaker | 436.1 sq ft |
Accommodation
| Cabins | 2 |
| Berths | 4 |
| Heads | 1 |
| Water | 34.9 L |
| Fuel | 26.9 L |
| CE category | About71 000€(2006) |
Engine
| Yanmar | 3YM2021 hpSee all 46 parts → |
About the CATALINA 309
Wing Keel - draft:4.33 ft / 1.32 m.; ballast: 4.400 lbs / 1,996 kg; Displacement: 10,200 lbs / 4,627 kg Photo courtesy of Adam Hunt.
Designed by Gerry Douglas and built by Catalina Yachts from 2005–2012, the Catalina 309 is a popular fractional sloop with a displacement of 9800.0 lb and a beam of 11.5 ft. While the exact hulls built count is unspecified in the source data, the model is widely recognized for its comfortable interior and robust construction, though owners report significant structural maintenance needs.
- Best for:
- This boat suits coastal cruisers and weekend sailors who prioritize interior volume and ease of handling, particularly those willing to manage routine maintenance on common wear items like rudders and deck hardware.
- Bluewater capability:
- With a displacement of 9800.0 lb and a capsize ratio of 2.15, the boat is moderately capable offshore, but critical issues with rudder/shaft integrity and deck core moisture require thorough verification before extended bluewater passages.
- Comparables:
- Comparable boats include the Beneteau First 323 and Hunter 336, which share similar fractional sloop rigs and target the same market of performance-oriented coastal cruisers with spacious cabins.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.2 | 4.4 | 5.3 | 6.0 | 6.4 | 6.7 | 6.8 | 6.9 | 6.8 |
| 60° | 3.4 | 4.7 | 5.6 | 6.2 | 6.6 | 6.8 | 7.0 | 7.1 | 7.1 |
| 75° | 3.5 | 4.8 | 5.8 | 6.4 | 6.8 | 7.0 | 7.2 | 7.4 | 7.5 |
| 90° | 3.6 | 5.0 | 6.1 | 6.7 | 7.1 | 7.3 | 7.5 | 7.7 | 7.9 |
| 110° | 3.7 | 5.1 | 6.2 | 6.8 | 7.2 | 7.6 | 7.9 | 8.4 | 8.7 |
| 120° | 3.5 | 4.9 | 6.0 | 6.7 | 7.2 | 7.5 | 7.8 | 8.6 | 9.4 |
| 135° | 3.1 | 4.4 | 5.5 | 6.3 | 6.9 | 7.3 | 7.6 | 8.3 | 9.4 |
| 150° | 2.6 | 3.7 | 4.8 | 5.7 | 6.3 | 6.8 | 7.1 | 7.7 | 8.3 |
| Beat VMG | 2.0 | 2.8 | 3.5 | 4.0 | 4.4 | 4.7 | 4.8 | 4.8 | 4.7 |
| Run VMG | 2.2 | 3.2 | 4.1 | 4.9 | 5.5 | 6.0 | 6.3 | 6.9 | 7.4 |
Estimated Value
Medium ConfidenceAsking price by model year
16 listings · boat years 2006–2009 · median $65,000
Each dot is one listing · hover for details · dashed red line marks the median · obvious data-entry outliers (top & bottom 2.5%) excluded.
Estimated Cost of Ownership
Based on 32.75ft LOA. Actual costs vary by condition, usage, and local rates.
