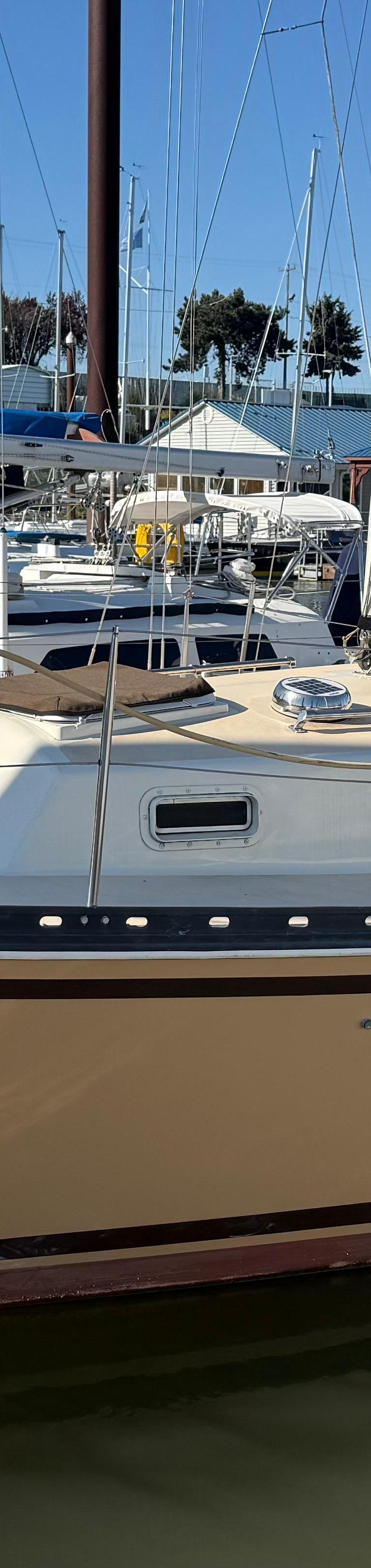

CASCADE 36
Specifications
Hull
| LOA | 35.56 ft |
| LWL | 28.87 ft |
| Beam | 10 ft |
| Draft | 5.6 ft |
| Displacement | 12,500 lb |
| Ballast | 4,432.5 lb |
| Hull speed1.34·√LWL | 7.2 kn |
Rig & Sails
| Iforetriangle height | 43 ft |
| Jforetriangle base | 13 ft |
| Pmainsail luff | 37.58 ft |
| Emainsail foot | 16.5 ft |
| FLforestay | 13 ft |
| Mainsail | 614.3 sq ft |
| Jib (100%) | 279.5 sq ft |
| Spinnaker | 475.2 sq ft |
About the CASCADE 36
Differences for earlier boats (from the one shown here): Standard traditional transom. Different keel, fin is longer. No bowsprit and standard, shorter sloop rig. More than likely that all changes did not happen at once. (Rig dimensions are for the earlier, non-cutter rig.)
Designed by Robert Smith and built by Yacht Constructors Inc./Cascade Yachts (USA), the Cascade 36 is a classic 1967 cutter with a production run of 156 hulls. This heavy-displacement vessel, weighing 12500.0 lb with a 29.13 comfort ratio, is renowned for its robust construction and seakindly motion, though it requires diligent maintenance of its aging systems.
- Best for:
- This boat is ideally suited for experienced coastal cruisers and conservative bluewater passagemakers who prioritize safety and comfort over speed. Its cutter rig and substantial displacement make it a stable platform for couples or small families seeking a reliable, traditional cruising experience.
- Bluewater capability:
- With a low capsize ratio of 1.73 and a high displacement-to-length ratio of 231.91, the Cascade 36 is well-regarded for offshore stability and safety. Its fin keel and heavy ballast of 4432.5 lb contribute to a secure righting moment, making it capable of extended offshore passages.
- Comparables:
- Comparable vessels include the Cal 3-36 and O'Day 36, which share similar displacement and era-specific construction methods. These boats offer similar heavy-displacement cruising characteristics and cutter or sloop configurations from the late 1960s.
Performance
ORC Performance Data(1 certificate)
Measured performance data from ORC (Offshore Racing Congress) certificates.
Polar Diagram
Boat speed (kn) vs. true wind angle. Source: ORC
Racing Ratings
Triple Number
ORC Measured
Sail Areas (ORC)
Speed Table (kn)
| TWA \ TWS | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| 52° | 3.5 | 4.8 | 5.7 | 6.3 | 6.7 | 6.8 | 6.9 | 6.9 | 6.9 |
| 60° | 3.8 | 5.1 | 6.0 | 6.5 | 6.8 | 7.0 | 7.1 | 7.1 | 7.1 |
| 75° | 4.0 | 5.3 | 6.2 | 6.7 | 7.0 | 7.2 | 7.3 | 7.5 | 7.5 |
| 90° | 3.9 | 5.2 | 6.1 | 6.7 | 7.0 | 7.3 | 7.5 | 7.8 | 7.9 |
| 110° | 3.7 | 5.1 | 6.2 | 6.9 | 7.3 | 7.5 | 7.8 | 8.2 | 8.7 |
| 120° | 3.6 | 5.0 | 6.0 | 6.8 | 7.2 | 7.5 | 7.8 | 8.4 | 8.9 |
| 135° | 3.2 | 4.5 | 5.6 | 6.4 | 7.0 | 7.3 | 7.7 | 8.4 | 9.3 |
| 150° | 2.6 | 3.8 | 4.9 | 5.8 | 6.5 | 7.0 | 7.4 | 8.0 | 8.8 |
| Beat VMG | 2.3 | 3.1 | 3.8 | 4.3 | 4.6 | 4.7 | 4.8 | 4.8 | 4.7 |
| Run VMG | 2.3 | 3.3 | 4.3 | 5.1 | 5.8 | 6.4 | 6.8 | 7.5 | 8.1 |
Estimated Value
Limited DataEstimated Cost of Ownership
Based on 35.56ft LOA. Actual costs vary by condition, usage, and local rates.
Articles & Reviews
Known Issues & Pre-Purchase Inspection
22 reported issues across 9 systems for the CASCADE 36, compiled from owner reports in sailing forums and owner-association material.
